US$ 35,000 - 45,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
XCMG
Model Number:
LW500KL
Contact Supplier Request Quote Chat Now
Shanghai Oriemac Machinery & Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name XCMG
Model Number LW500KL
Place of Origin Jiangsu, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 8185*3000*3465mm
Rated Load 5 TON
Certification ISO;CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Wheel Loader China xcmg  Wheel Loader LW500KL  !!!

1. Feature

Strong structure
Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

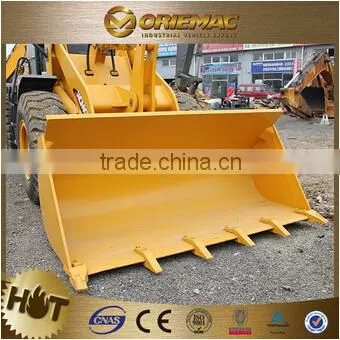

The large rock bucket with capacity of 3.0m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.
Large distance between up and down articulated boards, and large maintenance space. Resolve the load horizontally and vertically efficiently. Easier to access, the machine has more carrying capacity and larger opening space.
Each part passes the scientific analysis with professional stress analysis software to ensure that the reliability and carrying capacity of the structural parts could reach the design standard and meet the requirement of the tough condition.

2. Parameter

Item

LW500KLParameter

Unit

Rated load

5000

kg

Tipping load

110

kN

Bucket capacity

3.0

m

Dumping height

3090

mm

Dumping distance

1130

mm

Lifting height

5262

mm

Bucket width

3000

mm

Max.drawing force

170

kN

Max. traction

175

kN

Articulation angle

±38

°

Dimension (Length × Width × Height )

8185×3000×3465

mm

Operating weight

17.4

t

Boom lifting time

≤6

s

Total time of three devices

≤11

s

Wheelbase

3300

mm

Tread

2250

mm

Min. turning radius(tyre center)

5925

mm

Min. turning radius (bucket outside)

6910

mm

Rated power/rotary speed

162/2200

kW/r/min

Engine model

WD10G220E23



Gradeability

30

°

Speed

I Gear (Forward/Backward)

11/13

km/h

II Gear (Forward)

36

km/h

Tyre specification

23.5-25-16PR
