Carbon Steel Seamless Pipe ASTM A53 Gr.B
US$ 600 - 1,000
/ Ton
10 Tons(Min. Order)
- China port
- T/T
You May Like
Product Details
| Thickness | 2.5, 50 | Section Shape | Round | |
| Outer Diameter | 0.5 - 24 inch | Place of Origin | Shandong, China | |
| Secondary Or Not | Non-secondary | Application | Boiler Pipe | |
| Technique | Hot Rolled | Certification | Other, ASTM | |
| Surface Treatment | Other, factory state or as requested | Alloy Or Not | Non-alloy |
Product Description

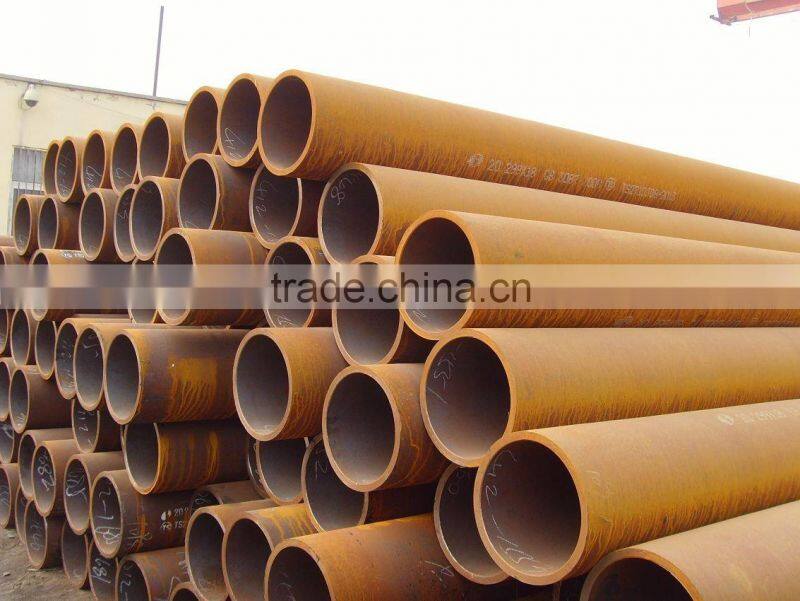

Carbon steel seamless pipe ASTM A53 Gr.B
Seamless steel pipe outside diameter, wall thickness and theoretical weights.
| NPS(inch) | OD(mm) | SCH20 | SCH30 | STD | SCH40 | SCH60 | SCH80 | SCH100 | SCH120 | SCH140 | |
| 1/8 | 10.3 | WT | 1.73 | 1.73 | 2.41 | ||||||
| Kg/m | 0.37 | 0.37 | 0.47 | ||||||||
| 1/4 | 13.7 | WT | 2.24 | 0.63 | 3.02 | ||||||
| Kg/m | 2.24 | 0.63 | 0.8 | ||||||||
| 3/8 | 17.1 | WT | 2.31 | 2.31 | 3.2 | ||||||
| Kg/m | 0.84 | 0.84 | 1.1 | ||||||||
| 1/2 | 21.3 | WT | 2.03 | 2.77 | 2.77 | 3.73 | |||||
| Kg/m | 0.96 | 1.27 | 1.27 | 1.62 | |||||||
| 3/4 | 26.7 | WT | 2.31 | 2.87 | 2.87 | 3.91 | |||||
| Kg/m | 1.39 | 1.69 | 1.69 | 2.2 | |||||||
| 1/1 | 33.4 | WT | 2.62 | 3.38 | 3.38 | 4.55 | |||||
| Kg/m | 1.99 | 2.5 | 2.5 | 3.24 | |||||||
| 1+1/4 | 42.2 | WT | 2.87 | 3.56 | 3.56 | 4.85 | |||||
| Kg/m | 2.78 | 3.39 | 3.39 | 4.47 | |||||||
| 1+1/2 | 48.3 | WT | 2.92 | 3.68 | 3.68 | 5.08 | |||||
| Kg/m | 3.27 | 4.05 | 4.05 | 5.41 | |||||||
| 2 | 60.3 | WT | 3.2 | 3.91 | 3.91 | 5.54 | |||||
| Kg/m | 4.51 | 5.44 | 5.44 | 7.48 | |||||||
| 2+1/2 | 73 | WT | 4.5 | 5.16 | 5.16 | 7.01 | |||||
| Kg/m | 7.6 | 8.63 | 8.63 | 11.4 | |||||||
| 3 | 88.9 | WT | 4.58 | 5.49 | 5.49 | 7.63 | |||||
| Kg/m | 9.52 | 11.3 | 11.3 | 15.3 | |||||||
| 3+1/2 | 102 | WT | 4.62 | 5.74 | 5.74 | 8.08 | |||||
| Kg/m | 11.09 | 13.6 | 13.6 | 18.6 | |||||||
| 4 | 114 | WT | 5.03 | 6.02 | 6.02 | 8.56 | 11.1 | ||||
| Kg/m | 13.52 | 16.1 | 16.1 | 22.3 | 28.3 | ||||||
| 5 | 141 | WT | 5.25 | 5.61 | 6.55 | 6.55 | 9.53 | 12.7 | |||
| Kg/m | 17.57 | 18.73 | 21.8 | 21.8 | 31 | 40.3 | |||||
| 6 | 168 | WT | 5.64 | 6.32 | 7.11 | 7.11 | 11 | 14.3 | |||
| Kg/m | 22.58 | 25.2 | 28.3 | 28.3 | 42.6 | 54.2 | |||||
| 8 | 219 | WT | 6.31 | 7.11 | 8.18 | 8.18 | 10.3 | 12.7 | 15.1 | 18.3 | 20.6 |
| Kg/m | 33.1 | 37.15 | 42.6 | 42.5 | 53.1 | 64.6 | 75.9 | 90.4 | 101 | ||
| 10 | 273 | WT | 6.58 | 8.03 | 9.27 | 9.27 | 12.7 | 15.1 | 18.3 | 21.4 | 25.4 |
| Kg/m | 43.23 | 52.47 | 60.3 | 60.3 | 81.5 | 96 | 115 | 133 | 155 | ||
| 12 | 324 | WT | 7.11 | 8.81 | 9.53 | 9.53 | 14.3 | 17.5 | 21.4 | 25.4 | 28.6 |
| Kg/m | 55.56 | 68.48 | 73.9 | 73.9 | 109 | 132 | 160 | 187 | 208 | ||
| 14 | 356 | WT | 8.02 | 10 | 9.53 | 9.53 | 15.1 | 19.1 | 23.8 | 27.8 | 31.8 |
| Kg/m | 68.82 | 85.32 | 81.3 | 81.3 | 127 | 158 | 195 | 225 | 254 | ||
| 16 | 406 | WT | 8.78 | 11.3 | 9.53 | 9.53 | 16.7 | 21.4 | 26.2 | 31 | 36.5 |
| Kg/m | 86 | 109.99 | 93.3 | 93.3 | 160 | 204 | 246 | 287 | 333 |
