Home > Instruments & Meters > Meter for Liquid & Gas > Flow Meter > Thermometer of Yokogawa AXF Series
Thermometer of Yokogawa AXF Series
US$ 100 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
YOKOGAWA
Model Number:
AXF
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ultrasonic Test Equipment of US300PMUS$ 100 - 1,000MOQ: 1 Piece -
Variable Area Flowmeters of Yokogawa DY SeriesUS$ 100 - 1,000MOQ: 1 Piece
-
Digital Pressure Guage of Yokogawa DY SeriesUS$ 100 - 1,000MOQ: 1 Piece
-
Yokogawa Controller Temperature Controller UT150US$ 1,500 - 2,000MOQ: 1 Unit
-
Yokogawa Controller UT130 Temperature ControllerUS$ 1,500 - 2,000MOQ: 1 Unit
Place of Origin
Japan
Brand Name
YOKOGAWA
Model Number
AXF
Specifications
thermometer of AXF serieshigh quality
competetion price
thermometer of yokogawa AXF series
we can provide all series yokogawa flowmeter
RAMC yokogawa metal flow meter

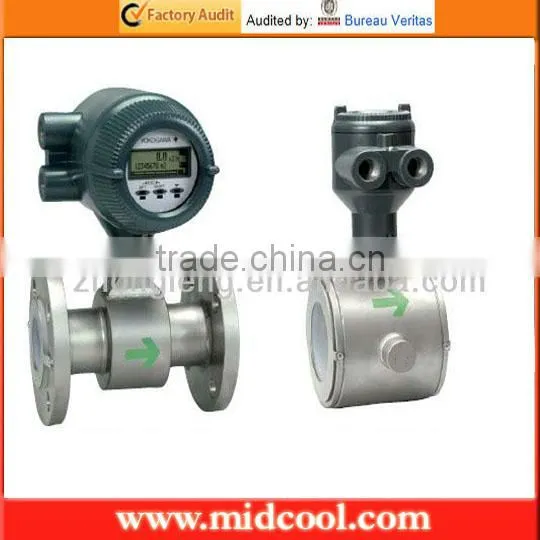

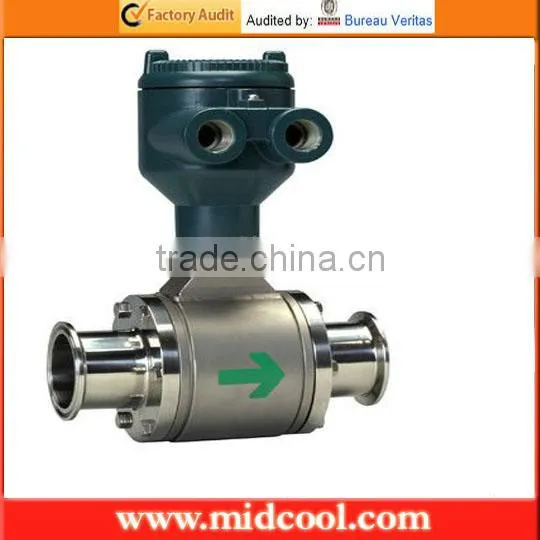

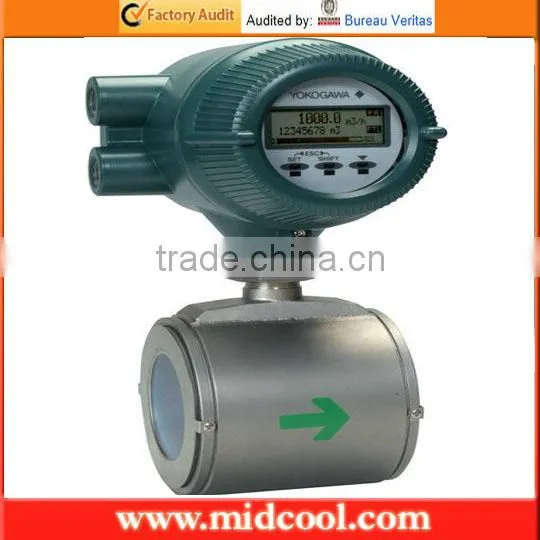

AXF yokogawa electromagnetic flowmeter
DY yokogawa svortex flow meter
Please tell me the MODEL you need
|
AXF Remote Flowtube |
AXF Integral Flowmeter |
AXFA14 Converter |
AXFA11 Converter |
|
| Size | 2.5 to 400 mm (0.1 to 16 inch) [depends on specifications] |
2.5 to 400 mm (0.1 to 16 inch) [depends on specifications] |
Combined with Remote type flowtube 2.5 to 400mm (0.1 to 16 inch) |
Combined with Remote type flowtube (Note) 2.5 to 400m (0.1 to 16 inch) |
| Type of Use | General-purpose use, Ex-proof type, Sanitary type, Submersible type |
General-purpose use, Ex-proof type, Sanitary type |
General-purpose use, Ex-proof type |
General-purpose use |
| Fluid Temp. | -40 to 160 deg.C (-40 to 320 deg.F) [depends on specifications] |
-40 to 130 deg.C (-40 to 266 deg.F) [depends on specifications] |
- | - |
| Ambient Temp. | -40 to 60 deg.C (-40 to 140 deg.F) [depends on model type] | |||
| Accuracy | 0.35% of rate (Optional ; 0.2% of rate) | |||
| Fluid Conductivity | 1 micro-S/cm or larger (depends on nominal pipe size and fluid condition) | |||
| Lining | Fluorocarbon PFA/Ceramics/Polyurethance Rubber/ EPDM Rubber/ Natural Soft Rubber [depends on model type] |
- | - | |
| Process Connection | Wafer, Flange, Sanitary connections (Clamp[Tri-clamp, DIN, ISO], Union thread[DIN, ISO SMS], Butt-weld), etc. |
- | - | |
| Maximum Cable Length | - | - | 100m (330 ft) |
200m (660 ft) |
| Indicator | - | Multi line backlit LCD (Full dot-matrix) | ||
| Diagnosis | Adhesion diagnosis, Empty pipe, Coil open, etc. | |||
| Alarm message | Alarm message with corrective measures is indicated (English, German, French, Italian, Spanish, Japanese) |
|||
| Excitation method | Dual Frequency Excitation: AXF sizes 2.5 to 400mm, Pulsed DC Excitation: AXW sizes 500 to 1800 mm (Note), Enhanced Dual Frequency Excitation (optional): AXF sizes 25 to 200 mm |
|||
| Ex-proof type | ATEX, FM, CSA, IECEx, TIIS | - | ||
| Options | Replaceable electrode, Rotatable terminal box(converter), Mirror finished lining surface(for PFA/Ceramics), Special gaskets, etc. | |||
