Digital Pressure Guage of Yokogawa DY Series
US$ 100 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
YOKOGAWA
Model Number:
DY
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Yokogawa Controller Temperature Controller UT150US$ 1,500 - 2,000MOQ: 1 Unit -
Yokogawa Controller UT130 Temperature ControllerUS$ 1,500 - 2,000MOQ: 1 Unit
-
Yokogawa US1000 Digital Indicating ControllerUS$ 1,500 - 2,000MOQ: 1 Unit
-
Yokogawa Controller Temperature Controller UTAdvanced UT35AUS$ 1,500 - 2,000MOQ: 1 Unit
-
Yokogawa UT32A Temperature Controller UTAdvancedUS$ 1,500 - 2,000MOQ: 1 Unit
Place of Origin
Japan
Brand Name
YOKOGAWA
Model Number
DY
Specifications
digital pressure guage of yokogawa DY serieshigh quality
competetion price
digital pressure guage of yokogawa DY series
we can provide all series yokogawa flowmeter
RAMC yokogawa metal flow meter
AXF yokogawa electromagnetic flowmeter
DY yokogawa svortex flow meter
Please tell me the MODEL you need
|
Standard Type |
Reduced Bore Type | Multi-Variable Type | ||

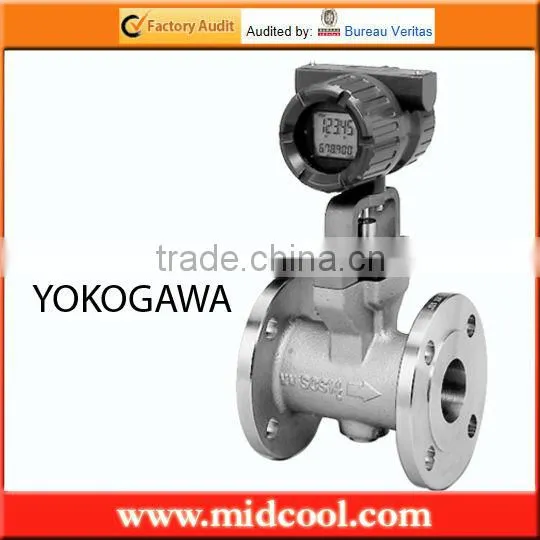

| Model | Model DY Vortex Flowmeter (Integral Type, Remote Type) Model DYA Vortex Flow Converter (Remote Type) (Option for High Process Temperature Version: /HT, Option for Cryogenic Version: /LT) |
Option: /R1, /R2 1 size down: /R1 2 size down: /R2 (Option for High Process Temperature Version: /HT) |
Option: /MV | |
| Fluid to be Measured | Liquid, Gas, Steam (Avoid Multiphase Flow and Sticky Fluids) | |||
| Nominal Size | Wafer | 15 to 100 mm | N/A | 25 to 100 mm |
| Flange | 15 to 400 mm | R1: 25 to 200 mm (Detector: 15 to 150 mm) R2: 40 to 200 mm (Detector: 15 to 100 mm) |
25 to 200 mm (Special: 250 to 300 mm) |
|
| Accuracy | Liquid | ±0.75% of Reading (Depends on Reynolds number) |
±1.0% of Reading (Depends on Reynolds number) |
±0.75% of Reading (Depends on Reynolds number) |
| Gas Steam |
±1.0% of Reading (Depends on flow velocity) |
|||
| Output Signal | Dual Output (Both analog and pulse output available) Communication: HART 5/HART 7, BRAIN, FOUNDATION™ fieldbus |
|||
| Process Temperature | -29 to 250 deg C -29 to 450 deg C (/HT) -196 to 100 deg C (/LT) |
-29 to 250 deg C -29 to 450 deg C (/HT) |
-29 to 250 deg C -29 to 400 deg C (/HT) |
|
| Process Pressure | -0.1MPa (-1kg/cm2) to flange rating | |||
| Ambient Temperature | -29 to 85 deg C (Depends on model type) | |||
| Ambient Humidity | 5 to 100% RH (No Condensation) | |||
| Mounting | Flange or Wafer Type JIS 10/20/40K ANSI 150/300/600/900 (Special: 1500) DIN PN 10/16/25/40/ 60/100/160 |
Flange Type only JIS 10/20K ANSI 150/300 |
Flange or Wafer Type JIS 10/20/40K ANSI 150/300/600/ 900 DIN PN 10/16/25/40 |
|
| Electrical Connection | JIS G1/2 Female, ANSI 1/2NPT Female, ISO M20×1.5 Female | |||
| Explosion Protected Type | TIIS Ex d, FM Ex d/Ex ia, ATEX Ex d/Ex ia, CSA Ex d/Ex ia, IECEx Ex d, SAA Ex ia |
|||
| Material | Body: Stainless steel(Special: Hastelloy, Carbon steel) Shedder Bar: Duplex stainless steel(Option: Stainless steel, Hastelloy) Gasket: Stainless steel with Teflon coating (/HT: with Silver plating) Converter housing, case and cover: Aluminum alloy(Option: Stainless steel) |
|||
