Specifications
paperless recordermodel:DX2000T
MOQ:1pcs

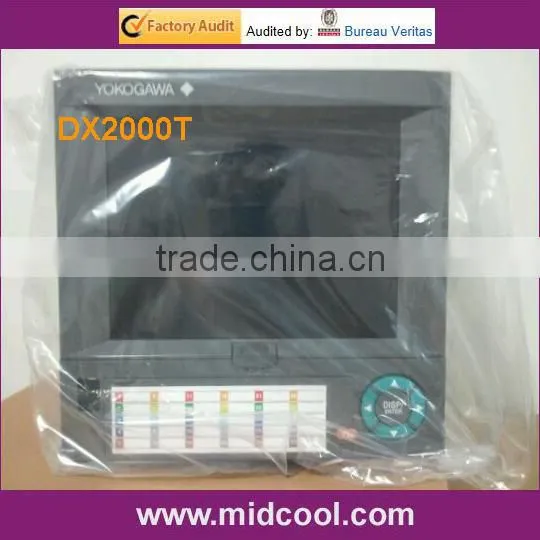

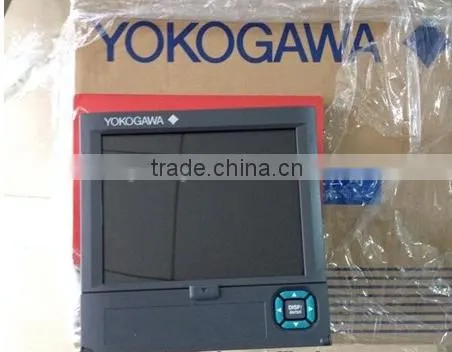

paperless recorder Daqstation yokogawa DX2000T
The DX2000T is a Daqstation that displays real-time measured data on a color LCD and saves data on a
CompactFlash memory card (CF card). It can be hooked up to network via Ethernet, which enables to inform by Email
and to monitor on Web site as well as to transfer files by using FTP. Also, it can communicate with Modbus/RTU or Modbus/TCP. It comes with a four, eight, ten, twenty, thirty, fortychannel or forty eight-channel model. As the input signal,
a DC voltage, thermocouple, resistance temperature detector, or contact signal can be set to each channel.
The data saved on a CF card can be converted by data conversion software to Lotus 1-2-3, Excel, or ASCII
format file, facilitating processing on a PC. Not only this, the Viewer software allows a PC to display waveforms on
its screen and to print out waveforms.

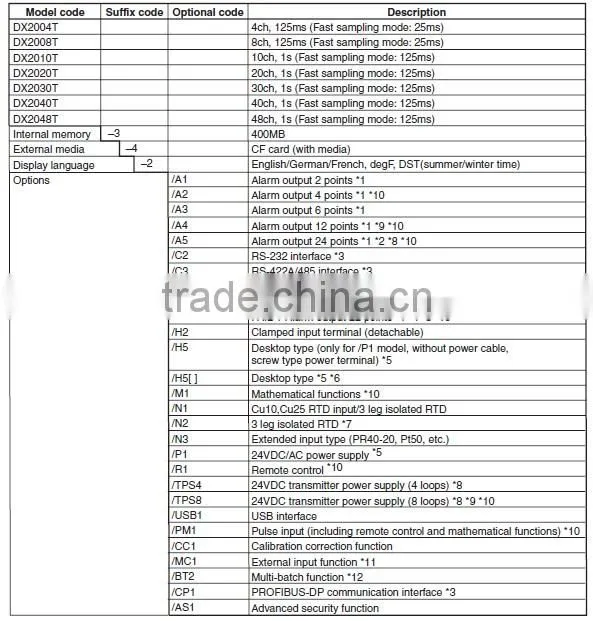

*1 /A1, /A2, /A3, /A4, /A5, /F2 cannot be specified together.
*2 /A5 and /F1 cannot be specified together.
*3 /C2, /C3 and /CP1 cannot be specified together.
*4 /F1 and /F2 cannot be specified together.
*5 In case that 24 VDC/AC power supply (/P1) and desktop type are specified together, /H5 must be specified.
/P1 and /H5[ ] cannot be specified together.
*6 /H5[ ]
D: Power cord UL, CSA st'd
F: Power cord VDE st'd
R: Power cord SAA st'd
J: Power cord BS st'd
H: Power cord GB st'd
*7 /N2 can be specified for only DX2010T, DX2020T, DX2030T, DX2040T and DX2048T.
*8 /TPS4, /TPS8, /A5 and /F2 cannot be specified together.
*9 In case that /TPS8 is specified, combination of /A4/F1 cannot be specified together.
*10 In case that /PM1 is specified, /A5, /F2, /M1 and /R1 cannot be specified. And
combination of /A2/F1 and combination of /A4/TPS8 cannot be specified together.
*11 /MC1 can be specified for only DX2010T, DX2020T, DX2030T, DX2040T and DX2048T.
*12 /BT2 can be specified for only DX2010T, DX2020T, DX2030T, DX2040T and DX2048T.
In case that standard memory is specified, maximum number of batches is 6.
Intuitive touch operation
- Increases operator efficiency and menu navigation speed
- Pressure-sensitive touch screen that gloved users can operate
Combined touch operation and key controls - your choice!
- Use the touch screen to navigate all display and function menu selections, and to quickly input text information
- Use the traditional control keys for all setting menu operations
Enhanced operation of your custom display screens
- Build your own screens with the custom display functions
- Operate a switch control or change a display with a touch of the screen
Easy search
- Touch the calendar data search icon to quickly and easily search the trend history
Easy message, batch, login and electronic signature text entry (with /AS1 option)
- Touch the screen to quickly and easily enter long batch and text messages
- Login quickly to a secure DX; operators can select their username from a list and complete their login with the touch screen
- Enter electronic signature - quickly examine trend history, approve the data, and enter signature comments with the touch screen
