conveyor screw

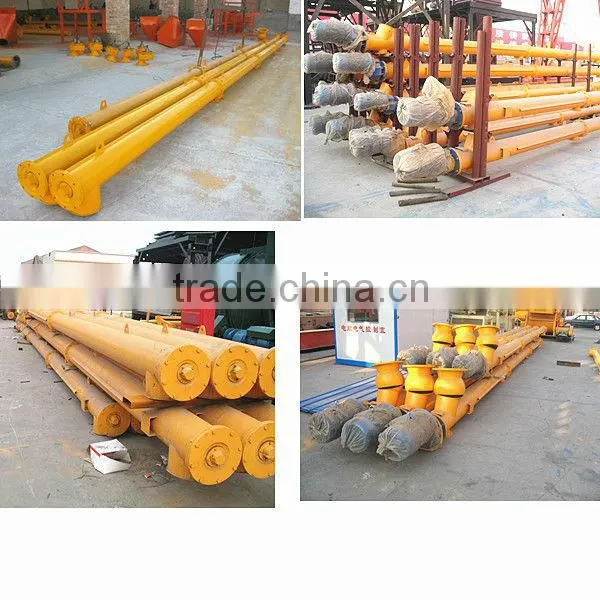

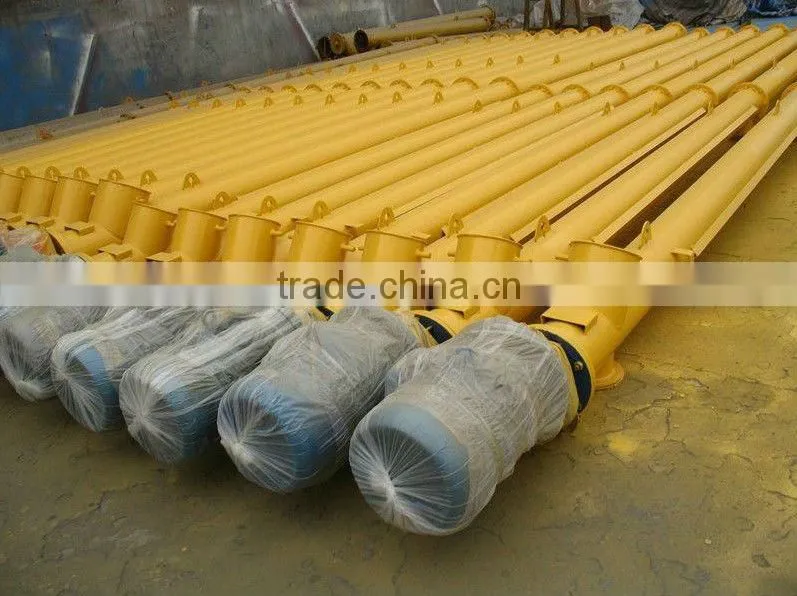

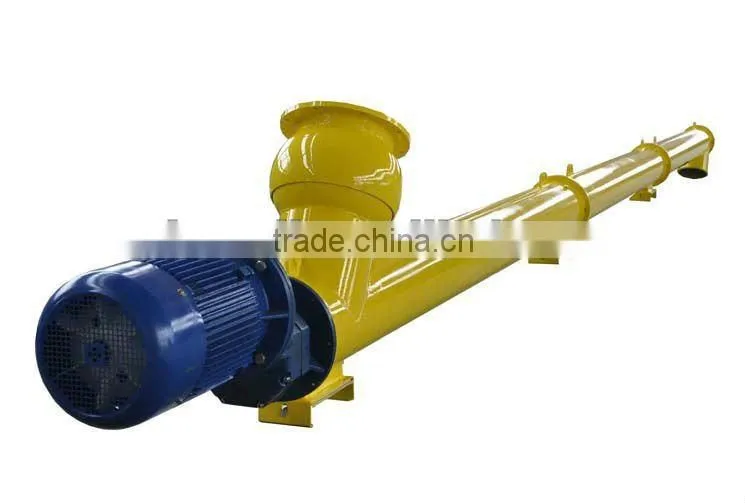

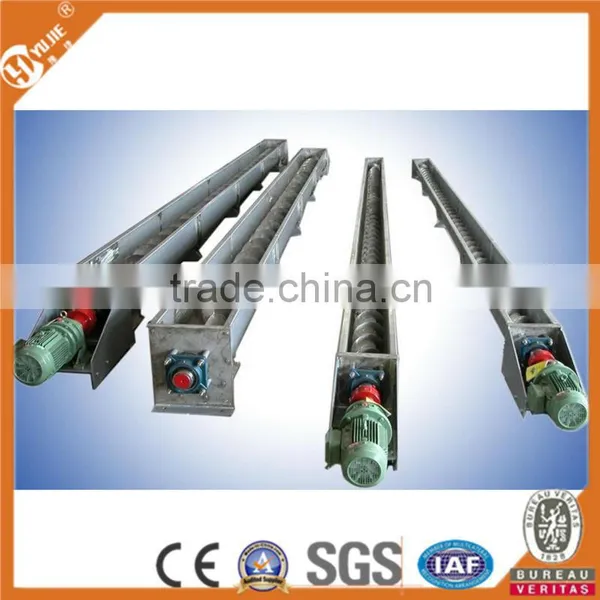

1.LSY series screw conveyor is a kind of new type conveying equipment which make use
of the rotary helical blades to push the materials continuously into a sealing circular cross section case.
2.Main features:compact structure, small cross section, light weight, good sealing performance, high conveying efficiency, flexible process layout, convenient installation, dismantlement and movement, operations security, etc.
3.It is applicable to convey all kinds of powder, grain, small block materials such as clay powder, powdered coal, cement, sands, grain, small sized coal, pebble and cast iron scraps, and not suitable for conveying large viscosity materials, easy caking materials,
metamorphic materials.
4.The screw conveyor can be divided into level, inclined and combined types according to configuration style. It can finish concentrated transporation, respectively conveying, mixing materials, mixture, dewatering, customized batching, discharging and stacking, being used with other conveying device together.

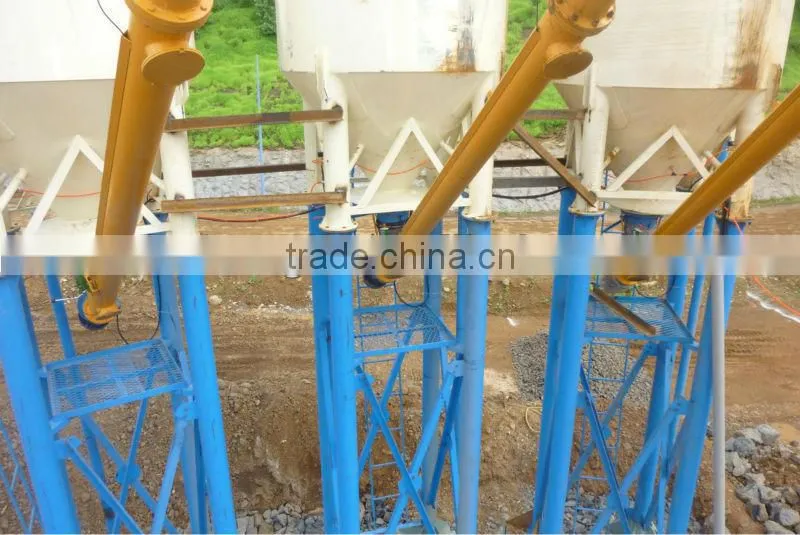

5.This series screw conveyor is especially suitable for conveying cement from cement silo to concrete mixer or from cement silo to concrete batching machine in concrete batchiong plants.
6.Technical parameters of screw conveyor:
Specifications |
Diameter(mm) |
Speed (r/min ) |
Capacity (m3/h) |
LS150 |
148 |
60 |
5 |
LS200 |
180 |
50 |
10 |
LS250 |
233 |
45 |
15 |
LS300 |
278 |
40 |
15 |
LS300 |
278 |
40 |
25 |
LS400 |
365 |
30 |
40 |
Our Quality and Reputation Proof
As reward and affirmation on our technology research capacity, our product quality and service we are honored with China Well-known Trademark, our product are honored with China National Trustworthy Quality Product as well as many other honors.
Our Service Clients
Our Clients includes those FORTUNE 500 companies like CHINA RAILWAY, CHINA SINOHYDRO, CHINA METALLURGY, CHINA STATE CONSTRUCTION ENGINEERING, CAMCE and China national top companies like CHINA SOUTH-TO-NORTH WATER PROJECT, CHINA MECHANICAL EQUIPMENT CORP etc.
Our International Market
We have established overseas projects in 28 countries and regions. And we need your support to introduce our high quality product and service to your honored company and country.
Welcome to your inquiry for more technical advantage introduction of our screw conveyor
