Stainless Steel Cement Screw Feeder 15t/h,30t/h,60t/h

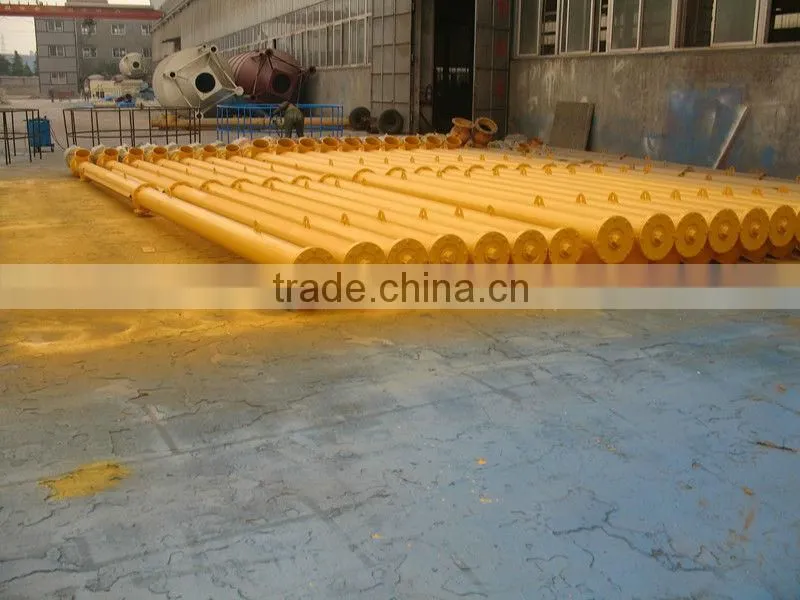

Stainless Steel Cement Screw Feeder 15t/h,30t/h,60t/h photo-1
US$ 1 - 30,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw Conveyor
Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main Port: Qingdao/Tianjn/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Screw Conveyor
Material Stainless Steel
Material Feature Heat Resistant
Structure Conveyor System
Load Capacity 15/30/60T/H
Place of Origin Hubei, China
Brand Name YU JIE
Model Number LSY219/LSY273/LSY323

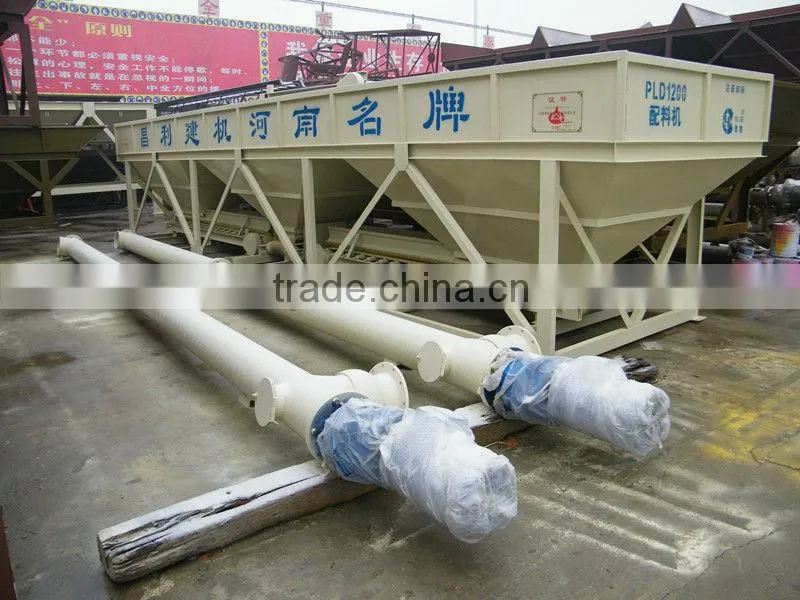

Stainless Steel Cement Screw Feeder 15t/h,30t/h,60t/h

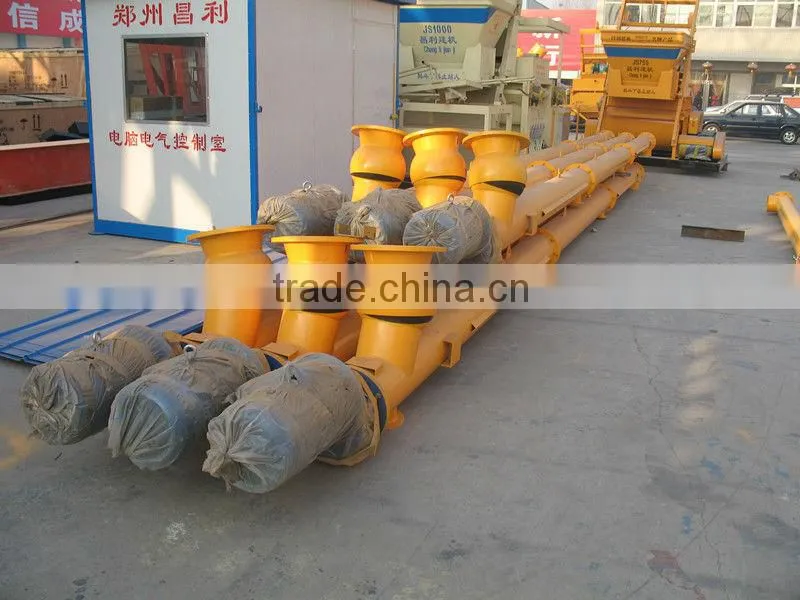

Stainless Steel Cement Screw Feeder 15t/h,30t/h,60t/hStainless Steel Cement Screw Feeder 15t/h,30t/h,60t/h

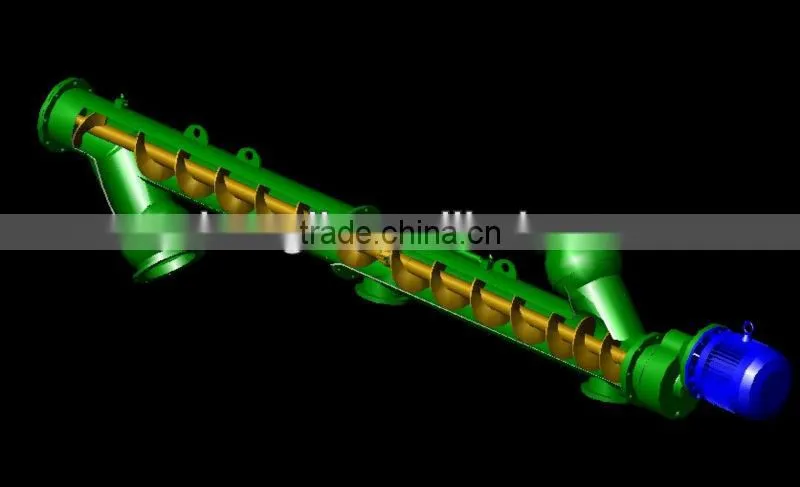

1.LSY series Stainless Steel Cement Screw Feeder is a kind of new type conveying equipment which make use of the rotary helical blades to push the material continuously into a sealing circular cross section case.



2.Main features: compact structure, small cross section, light weight, good sealing performance, high conveying efficiency, flexible process layout,convenient installation, dismantlement and movement, safe operation.



3. This series Stainless Steel Cement Screw Feeder is applicable to convey all kinds of powder, grain, small block materials such as clay powder, powdered coal, cement, sands, grain, small sized coal, pebble and cast iron scraps, and not suitable for conveying large viscosity materials, easy caking materials and metamorphic materials.



4.The Stainless Steel Cement Screw Feeder Feeder can be divided into level, inclined and combined types according to configuration style. It can finish concentrated transportation, respectively conveying, mixing materials, mixture dewatering, customized batching, discharging and stacking, being used with other conveying device together.

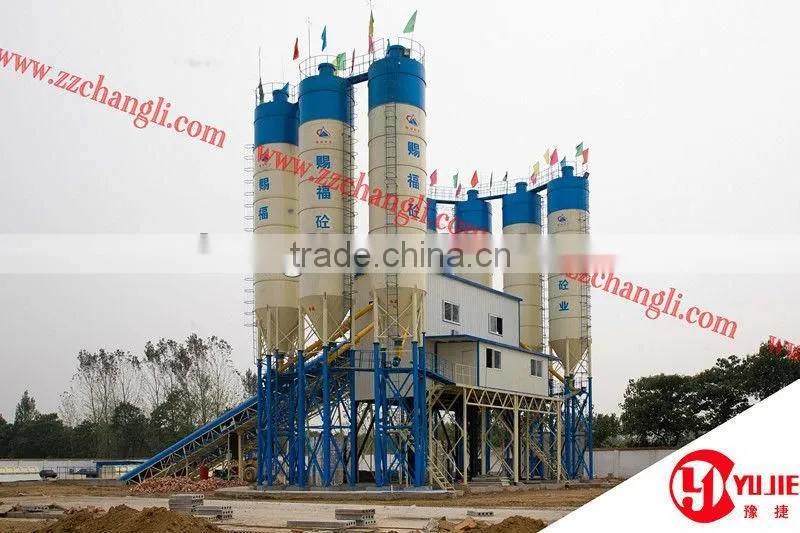

5.This series Stainless Steel Cement Screw Feeder Feeder is especially suitable for conveying bulk cement from cement silo to concrete mixer or from cement silo to concrete batching machine in concrete batching plant.

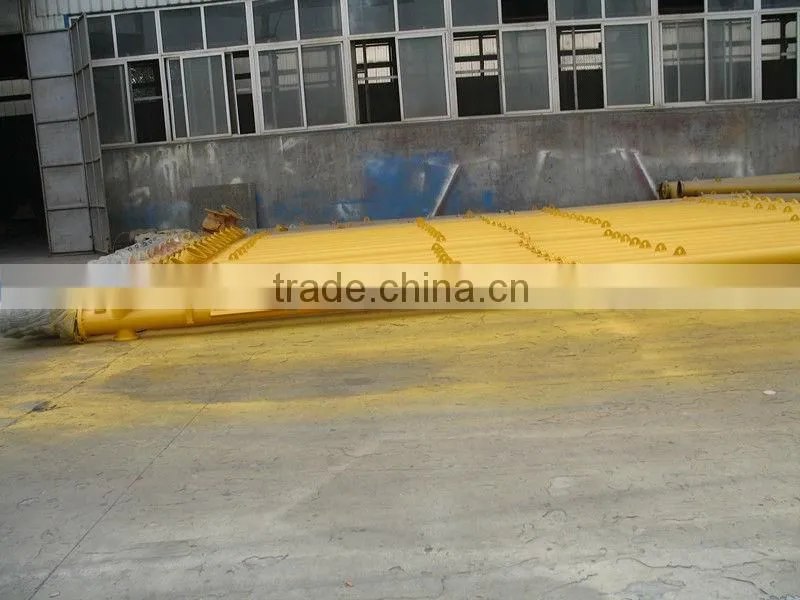

Stainless Steel Cement Screw Feeder 15t/h,30t/h,60t/h

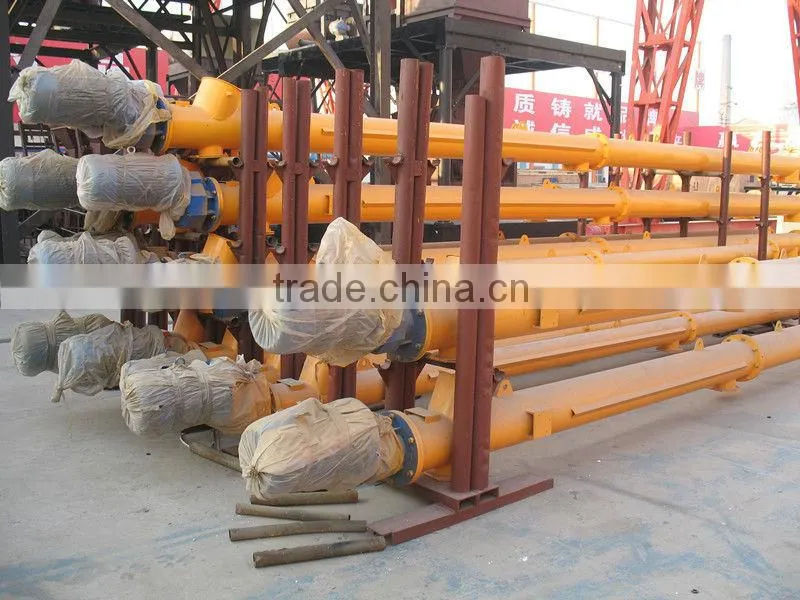

 Stainless Steel Cement Screw Feeder 15t/h,30t/h,60t/h



6. Main Technical Parameters-



Type

Delivery Angle

Delivery Distance (m)

Delivery Volume (t/h)

Shell Pipe Diameter (mm)

Matching power (kw)

LSY219

0---45°

4-15

15

219

5.5-15

LSY273

0---45°

4-15

30

273

7.5-18.5

LSY323

0---45°

4-15

60

323

15-30

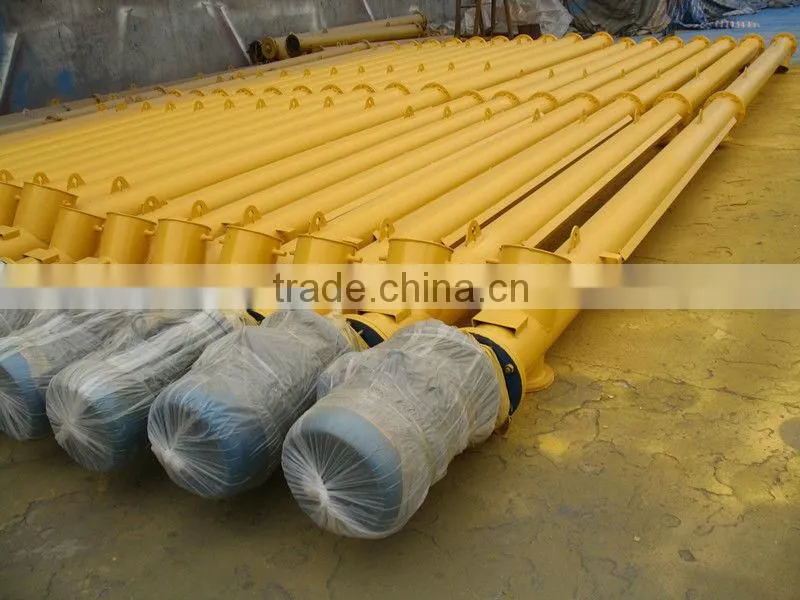

Stainless Steel Cement Screw Feeder 15t/h,30t/h,60t/hStainless Steel Cement Screw Feeder 15t/h,30t/h,60t/hStainless Steel Cement Screw Feeder 15t/h,30t/h,60t/h

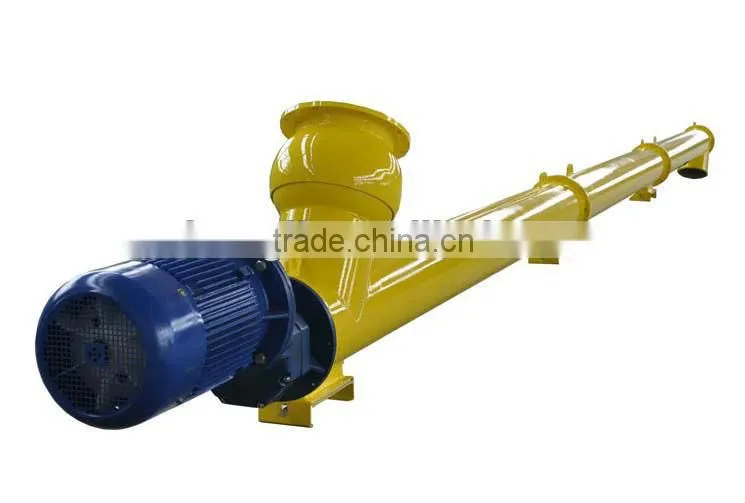

Stainless Steel Cement Screw Feeder 15t/h,30t/h,60t/hStainless Steel Cement Screw Feeder 15t/h,30t/h,60t/hStainless Steel Cement Screw Feeder 15t/h,30t/h,60t/h
