Specifications
Bubble Concrete Mixing and Pumping Machine1. continuous feed
2. continuous mixing & discharge
3. continuous pump
4. ISO
Portable Light Weight 8CBM, 20CBM per Hour Bubble Concrete Mixing and Pumping Machine at 30m, 100m and 180m Height
1, For production of magnesite foaming and cement foaming products in the factory.
2, Can be used for foam concrete and foamed cement construction site.
3, Floor heating construction.
4, Small and medium-sized area roof insulation.
5, Prefabricated insulation material processing.
6, Foam concrete block, light weight wall board, fire-proof door board core production.
7. For the research of foamed concrete in the laboratory.
Floor Heating Construction Site
Roof Insulation Construction
Block Production Site

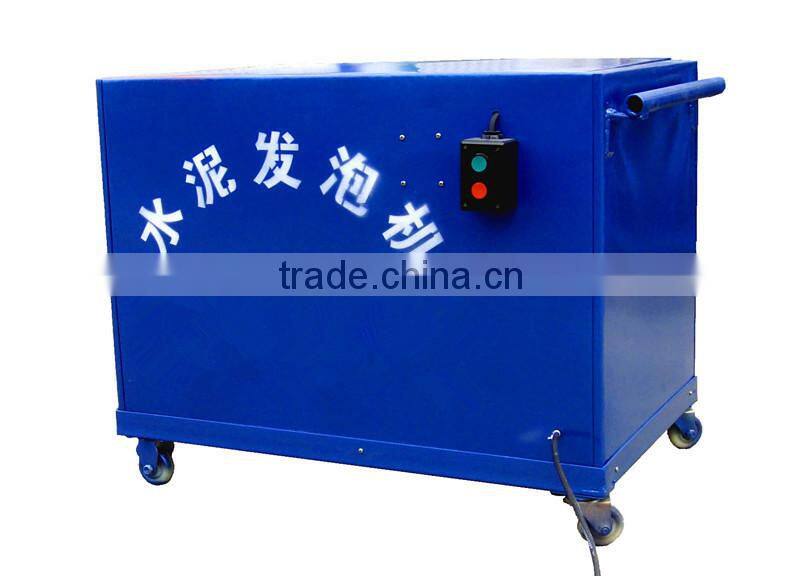

YT-20 foam concrete machine is mainly including Foam Generator, Concrete Mixer, Screw Feeder, and mortar pump.
Main Technical Parameters
Model: YT-20
Capacity: 10-20(m3/h)
Pump pressure: 1.5Mpa
Power: 3kw for foam generator
3 kw for concrete mixer
3kw for screw feeder
7.5kw for pump
Horizon conveying distance: 100m
Level conveying distance:300mm
No. |
Name |
Model |
Specs |
Unit |
Qty. |
1 |
Small Type Foam Generator |
BL168-8 |
380V, 3KW |
Set |
1 |
2 |
Special Mixer for Foam Concrete |
BL168-05 |
380V, 3KW |
Set |
1 |
3 |
Screw Feeder |
BL168-6 |
380V, 3KW |
Set |
1 |
4 |
Mortar Screw Pump |
G40-1 |
380V, 7.5KW |
Set |
1 |
5 |
Cement Foaming Agent |
Composite |
200kg/barrel |
Barrel |
2 |
6 |
Cement Foaming Agent |
Animal protein |
200kg/barrel |
Barrel |
2 |
1, The machine is process design, the using method is easy to learn.
2, The operation process of the machine is simple, and the foaming effect is good, not harm to the bubble.
3, The machine is light weighted, easy to move, can be moved to the upstairs, placed indoor for construction.
4, Suitable for smaller projects, such as the roof insulation construction, floor heating construciton and and foaming products production.
- Packing details: wooden case
- Payment Terms: T/T 30% in advance, 70% by T/T before shipment.
- Production Lead Time: 7-10 working days upon our receipt of advanced payment.
- Warranty: One year after delivery
- Technical Support: Provide timely and good after sales services, and spare parts support.
