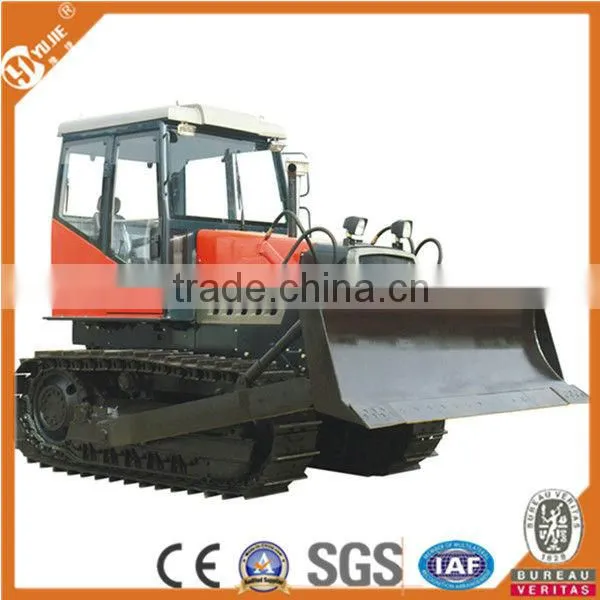

crawler tractor bulldozer
Bulldozer is a kind of engineering vehicles, the front is equipped with a large metal bulldozing knife, put down the bulldozing knife when using, cutting and push forward mud, sand and stones, earth-moving knife position and Angle can be adjusted. Bulldozer can finish digging, earth moving and unloading soil work alone, flexible operation, easy to turn the small, the working face, fast speed, etc. It is mainly suitable for shallow cut short shipment of one to three kinds of soil, such as land clearing or flat, not large foundation pit excavation depth and backfilling, push the building height is roadbed, etc.
Bulldozer bulldozers is in front of the tractor plow load of road-building machinery, used for bulldozing, smooth construction sites, etc. For example in the construction of road construction, the bulldozer can complete treatment of subgrade base, roadside soil lateral building height is not more than 1 meter of the embankment, along the road centerline to digging, soil digging filling roadbed, mountain roadbed soil building dike and willing. In addition, a bulldozer can also be used for flat ground, stack up, loose material, remove obstacles, such as in the assignments section.
Technical Parameter
| Model | TY-A6 | |
| Total weight | kg | 18500(with ripper) |
| Max towing forcet | kN | 82 |
| Engine model | LR6105ZG52 | |
| Engine rated power /speed | kw/ r/min | 60/2200 |
| Fuel consumption of the engine | g/km.h | ≤235 |
| Engine max torque | N.m | 313 |
| forward 1-4 gears | km/h | 2.4~10.4 |
| Reverse 1-2 gears | km/h | 4.9~8.9 |
| Carpiller track board with | mm | 400 |
| Land pressure | kPa | 51 |
| Overall dimension(L×W×H) | mm | 5360x3970x3063 (without ripper) |
| Bulldozer shovel(W×H) | mm | 2480~880 |
| Blade max lifting height | mm | 784 |
| Blade max digging depth | mm | 357 |
| Twing equipment/Scar fier(optional) | Stationary/tridentate |
Our Certification and Major Honors
ISO9001, CE, ISO, BV
China Well-known Trademark
China Top Enterprise
China Product Quality Trustworthy Enterpris
Our International Market
We have established overseas projects in 28 countries and regions. And we need your support to introduce our high quality product and service to your honored company and country
Customer needs and satisfaction is the goal of our progress
Welcome you to have the vision to visit our factory
Fair customers first is our aim
Hope to establish long-term cooperation relationship with you, oh
