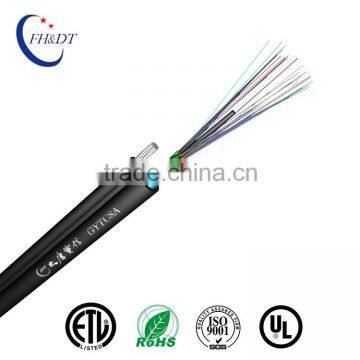

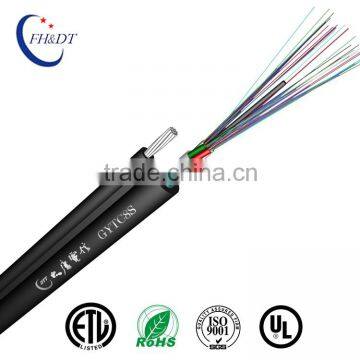

Help CenterFTTH Cable GJYXCH/GJYFCH Figure 8 Outdoor Single/multi Mode Optical Fiber Cable
Related Products
-
Aerial Self-supporting Optical Fiber ADSSUS$ 1,500 - 2,000MOQ: 10 Kilometers -
FTTH Bow-type Drop Fiber Optic CableUS$ 150 - 200MOQ: 10 Kilometers
-
GJYXCH G.657A1 FTTX NETWORK DROP CABLEUS$ 70 - 150MOQ: 10 Kilometers
-
High-quality Outdoor Optical CableUS$ 200 - 200MOQ: 10 Kilometers
-
4~12 Core LSZH or Square PVC Jacket Indoor Optical Fiber Flat Ribbon Cable GJDFVUS$ 40 - 100MOQ: 10 Kilometers
Optical characteristic of optical fiber cable
Type of fiber | G.652 | G.655 | |||
Wavelength(nm) | 1310 | 1550 | 1550 | ||
Attenuation coefficient(max)(dB/km) | 0.36 | 0.22 | 0.22 | ||
PMD | M | 20 | 20 | ||
Q | 0.01% | 0.01% | |||
PMDQ (max) | 0.5ps/km1/2 | 0.2ps/km1/2 | |||
Zero-dispersion Wavelength(nm) | 1300~1324 | —— | |||
Zero-dispersion Slope (max) ps/(nm2·km) | 0.093 | —— | |||
Absolute value of Chromatic Dispersion ps/(nm·km) | 1288~1339nm | 3.5 | —— | ||
1271~1360nm | 5.3 | —— | |||
1550nm | 18.0 | —— | |||
1530~1565nm | —— | 0.1~10.0 | |||
Dmax-Dmin 1530~1565nm | —— | 5.0 | |||
cut-off wavelength lcc(nm) | ≤1260 | ≤1480 | |||
Note: If specification at 1600nm is required, Please make it out in the ordering contract. | |||||

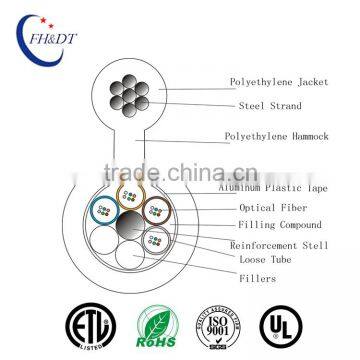

Structure and Mechanical Characteristics of Cable
Fibre Count | FRP mm | Loose Tube Size mm | Tubes | Messenger wire mm | height / width mm | Cable Weight kg | Crush Resistance Long/Short Term N/100mm |
2~24 | 2.3 | 1.4/2.1 | 1—4 | 1.2*7 | 20.1/11.3 | 193 | 1000/3000 |
56~72 | 3.0 | 1.5/2.2 | 5—7 | 1.2*7 | 21/12.2 | 216 | 1000/3000 |
86~96 | 3.0 | 1.5/2.2 | 8 | 1.6*7 | 22.9/12.9 | 284 | 1000/3000 |
144 | 3.0 | 1.9/2.6 | 12 | 1.6*7 | 27.7/17.7 | 393 | 1000/3000 |

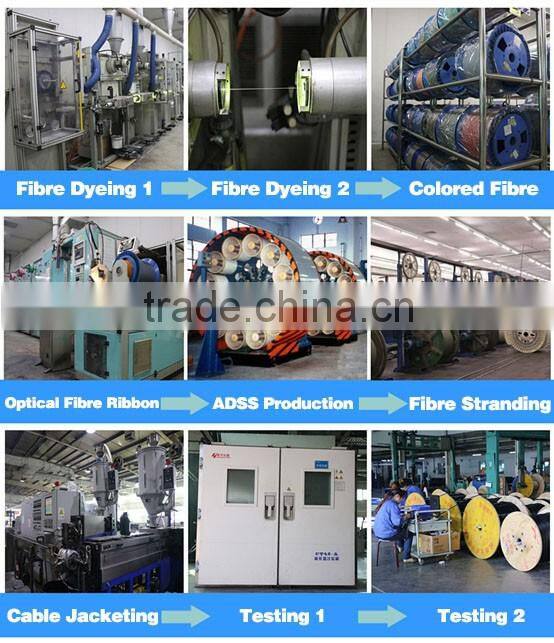

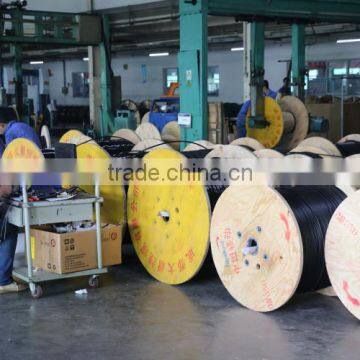

Chengdu Datang Communication Cable, Co. Ltd. has built up optical cable and electrical
cable factory with all kinds of advanced equipments. The main part includes an 8000-sq.m
optical cable’s workshop, a 7600-sq.m Physical-foaming coaxial cable workshop and a 6200-
sq.m digital cable’s workshop. Its annual production is as follows: 3.5 million Pairs kilometers
of optical cable,70,000 kilometers of coaxial cable, and 800,000 boxes of digital cable.
