Help Center4~12 Core LSZH or Square PVC Jacket Indoor Optical Fiber Flat Ribbon Cable GJDFV
Related Products
-
GJFJBV Duplex Flat Cable Multi Mode Fiber Optic Cable FactoriesUS$ 50 - 100MOQ: 10 Kilometers -
Flat Twin Duplex Fiber Optic Cable(GJFJV)US$ 50 - 70MOQ: 10 Kilometers
-
High Quality GJPFJV Indoor Backbone Distribution Fiber Optic CableUS$ 40 - 100MOQ: 10 Kilometers
-
GYDTA Optical Fiber CableUS$ 1,500 - 3,000MOQ: 10 Kilometers
-
Outdoor Optical Fiber Ribbon Cable GYDTSUS$ 1,500 - 5,000MOQ: 10 Kilometers
Specifications

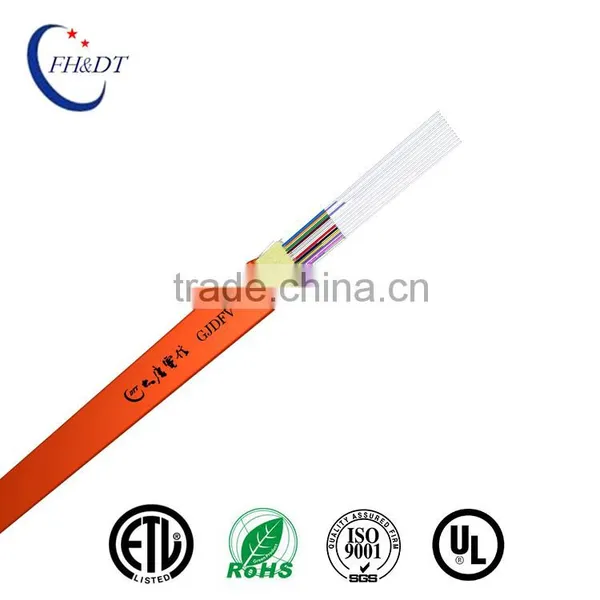

Flat Ribbon Cable GJDFV
*uniformlycovers high-modulus aramid around the optical-fiber ribbon
*LSZH or Square PVC Jacket
Flat Ribbon Cable GJDFV Specification:
1.Application: floors, terminal boxes and work stations
2.Jacket:LSZH or PVC
3.Number of Core: 4,6,8,10,12
4.Operating Temperature (°C) :-20~+60
5.Package: 4km or 5km per reel
6. CE,UL,ROHS standard
7.MOQ:4km
8. OEM service
9.Sample is available
Application:
Ideal for intra-building backbone cabling including floors, terminal boxes and work stations.
Feature:
1. It uses optical-fiber ribbon as the centralunit,high-modulus aramid yarn uniform cober as the strengthen device; it isflexible,easy tobe peeled; it has smaller bending radius and excellentperformance of meetingthe stress and emergency.
2. The fiber has high crowding level, compactstructure, light weight; it is easy to be operated and also can achieve themulti-core one-off heat sealing.
3. The fiber has great geometric dimensional uniformity .
Technical Parameters
TYPE |
Number of cores |
Cable Size (mm) |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
Bending Radius (mm) |
Cable Weight (Kg/Km) |
|||
Short Term |
Long Term |
Short Term |
Long Term |
Dynamic |
Static |
||||
Non metal |
4 |
2.5x3.5 |
440 |
130 |
1000 |
200 |
20H |
10H |
8.7 |
6 |
2.5x4.0 |
440 |
130 |
1000 |
200 |
20H |
10H |
9.9 |
|
8 |
2.5x4.5 |
440 |
130 |
1000 |
200 |
20H |
10H |
10.8 |
|
12 |
2.5x5.0 |
440 |
130 |
1000 |
200 |
20H |
10H |
11.9 |
|
Operating Temperature (°C) |
-20~+60 |
||||||||
Flame Class |
Accord with the instruction of UL: OFNP, OFN-FT6, OFNR, OFN-FT4. |
||||||||
Remark |
Other requirements can be provide & Cable is accord with the instruction of EU ROHS. |
||||||||
Transmission performence
Fiber Type |
62.5um (OM1) (850nm/1300nm) |
50um (OM2) (850nm/1300nm) |
50um (OM3) (850nm/1300nm) |
SM (850nm/1300nm) |
Attenuation (Max) (dB/Km) |
3.5/1.5 |
3.5/1.5 |
3.5/1.5 |
0.8/0.6 |
Attenuation of Typical Values (dB/Km) |
3.5/1.5 |
3.0/1.0 |
3.0/1.0 |
0.4/0.3 |
LED Bandwidth Min (Mhz.Km) |
200/500 |
500/500 |
1500/500 |
----- |
Chengdu Datang Communication Cable, Co. Ltd. has built up optical cable and electrical
cable factory with all kinds of advanced equipments. The main part includes an 8000-sq.m
optical cable’s workshop, a 7600-sq.m Physical-foaming coaxial cable workshop and a 6200-
sq.m digital cable’s workshop. Its annual production is as follows: 3.5 million Pairs kilometers
of optical cable,70,000 kilometers of coaxial cable, and 800,000 boxes of digital cable.
