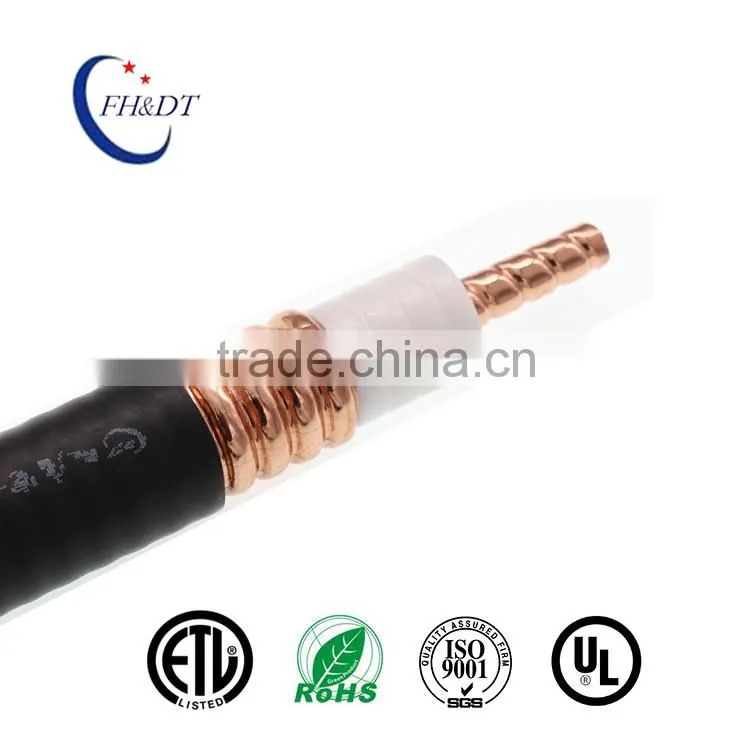

Help CenterMade in China 50ohm Corrugated Copper Superflexible RF Cable 7/8" Feeder Cable / Coaxial Cable
Related Products
-
50 Ohm Corrugated Copper Superflexible Communicatiion Cable 7/8" Feeder CableUS$ 2,000 - 2,100MOQ: 5 Kilometers -
7/8" Superflexible RF Cable / Feeder Cable / Coaxial CableUS$ 2,000 - 2,200MOQ: 5 Kilometers
-
7/8" Superflexible Coaxial CableUS$ 2,000 - 2,150MOQ: 5 Kilometers
-
Wire Jumper for RF Coaxial CableUS$ 100 - 100MOQ: 10 Cartons
-
Wire Jumper for RF Coaxial CableUS$ 100 - 100MOQ: 10 Cartons

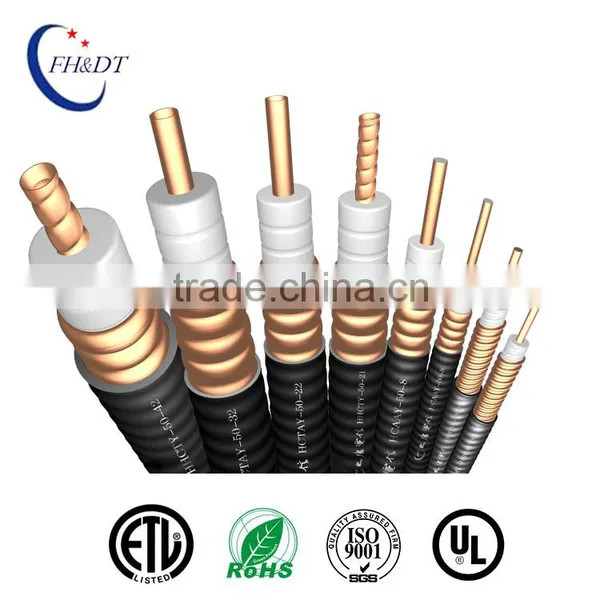

50 ohm Corrugated Copper 7/8" Superflexible Coaxial Cable / Feeder Cable/ RF Cable
|
3/8″ Superflexible |
3/8″ |
1/2″ Superflexible |
1/2″ |
7/8″ Superflexible |
7/8″ |
1-1/4″ |
1-5/8″ |
|
Standard Jacket |
HRCAY-50-7 |
HCAAY-50-8 |
HRCAY-50-9 |
HCAAY-50-12 |

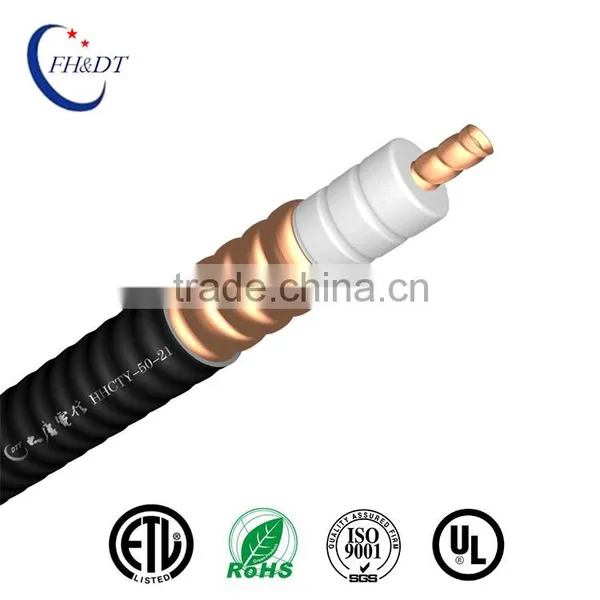

HRCTY-50-21 |
HCTAY-50-22 |
HCTAY-50-32 |
HHTAY-50-42 |
|
Fire Retardant Jacket |
HRCAYZ -50-7 |
HCAAYZ -50-8 |
HRCAYZ -50-9 |
HCAAYZ -50-12 |
HRCTYZ -50-21 |
HCTAYZ -50-22 |
HCTAYZ -50-32 |
HHTAYZ -50-42 |
|
Page |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
|
Main Materials | |||||||||
Inner Conductor |
Copper Clad Aluminum |
Copper Clad Aluminum |
Copper Clad Aluminum |
Copper Clad Aluminum |
Corrugated Copper-tube |
Smooth Copper-tube |
Smooth Copper-tube |
Corrugated Copper-tube |
|
Outer Conductor |
Corrugated Copper-tube |
Corrugated Copper-tube |
Corrugated Copper-tube |
Corrugated Copper-tube |
Corrugated Copper-tube |
Corrugated Copper-tube |
Corrugated Copper-tube |
Corrugated Copper-tube |
|
Jacket |
Standard |
Linear Low Density PE |
|||||||
Retardant |
Non-halogen flame retardant jacket |
||||||||
|
3/8″ Superflexible |
3/8″ |
1/2″ Superflexible |
1/2″ |
7/8″ Superflexible |
7/8″ |
1-1/4″ |
1-5/8″ |
|
Mechanical Performance | |||||||||
|
Minimum Bending Radius mm |
Single Bending |
15 |
30 |
17 |
80 |
90 |
140 |
200 |
280 |
Multiple Bending |
50 |
100 |
35 |
125 |
130 |
250 |
380 |
500 |
|
|
Weight kg/km |
110 |
120 |
210 |
250 |
450 |
570 |
980 |
1500 |
|
Electrical Performance | |||||||||
Velocity % |
82 |
88 |
81 |
88 |
88 |
88 |
88 |
88 |
|
Capacitance pF/m |
82 |
76 |
83 |
76 |
76 |
76 |
76 |
76 |
|
Impedance Ω |
50 |
||||||||
Attenuation dB/100m 20℃ max | |||||||||
900 MHz |
14.19 |
11.86 |
11.47 |
7.04 |
4.42 |
3.94 |
3.29 |
2.78 |
|
1800 MHz |
21.03 |
17.41 |
17.02 |
10.25 |
6.51 |
5.82 |
4.93 |
4.22 |
|
VSWR max | |||||||||
824~960MHz |
1.20 |
1.20 |
1.20 |
1.13 |
1.20 |
1.13 |
1.20 |
1.20 |
|
1700~1900MHz |
1.20 |
1.20 |
1.20 |
1.14 |
1.20 |
1.14 |
1.20 |
1.20 |
|
Chengdu Datang Communication Cable, Co. Ltd. has built up optical cable and electrical
cable factory with all kinds of advanced equipments. The main part includes an 8000-sq.m
optical cable’s workshop, a 7600-sq.m Physical-foaming coaxial cable workshop and a 6200-
sq.m digital cable’s workshop. Its annual production is as follows: 3.5 million Pairs kilometers
of optical cable,70,000 kilometers of coaxial cable, and 800,000 boxes of digital cable.
