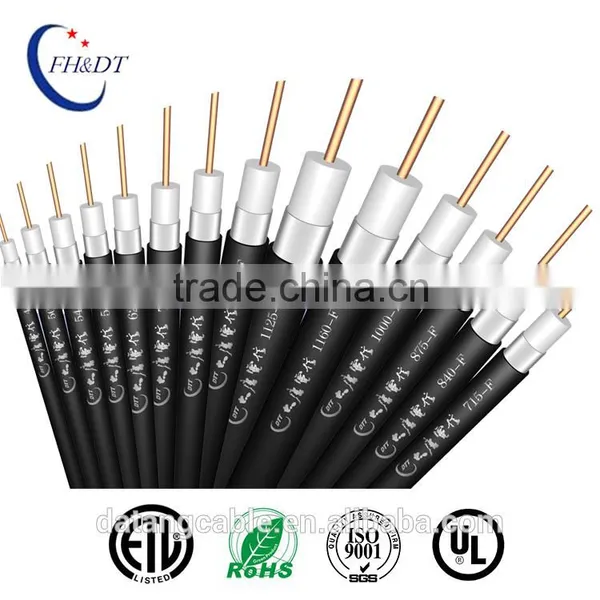

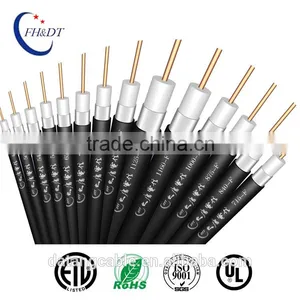

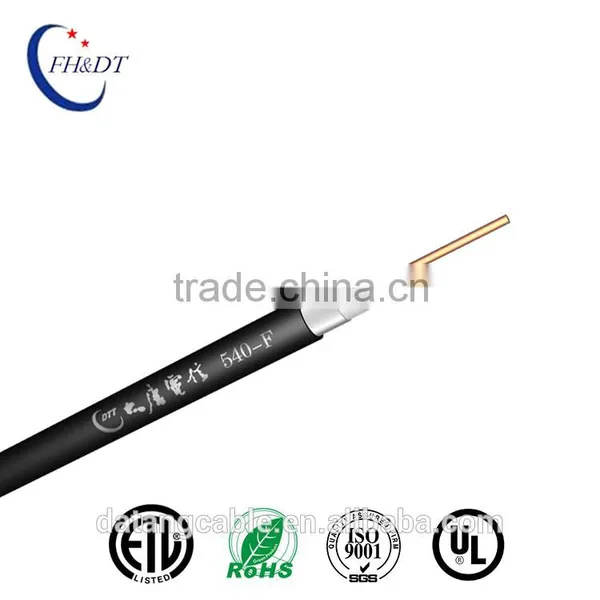

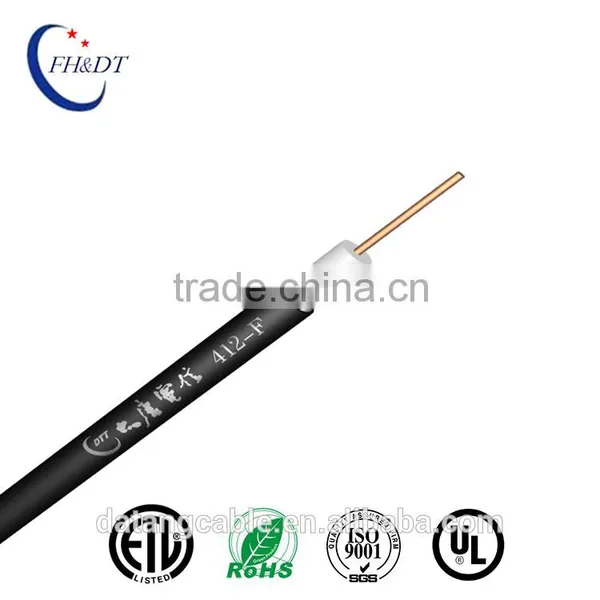

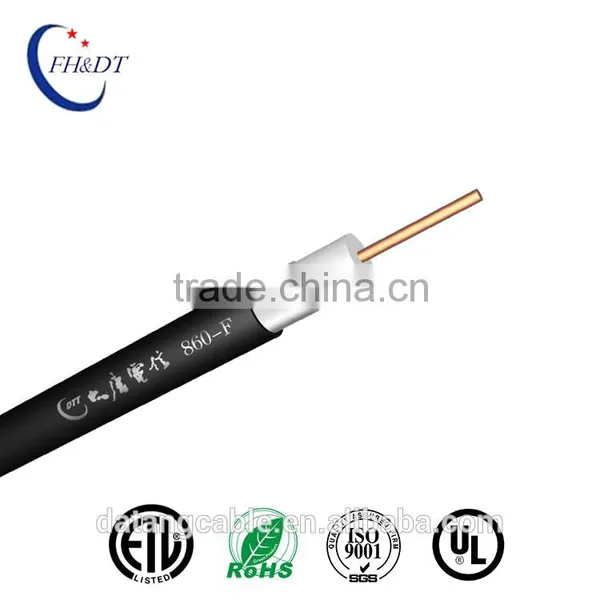

Copper-tube Outer Conductor Coaxial Cables for Wireless Communication

3/8″

Superflexible

3/8″

1/2″

Superflexible

1/2″

7/8″

Superflexible

7/8″

1-1/4″

1-5/8″

Standard Jacket

HRCAY-50-7

HCAAY-50-8

HRCAY-50-9

HCAAY-50-12

HRCTY-50-21

HCTAY-50-22

HCTAY-50-32

HHTAY-50-42

Fire Retardant Jacket

HRCAYZ

-50-7

HCAAYZ

-50-8

HRCAYZ

-50-9

HCAAYZ

-50-12

HRCTYZ

-50-21

HCTAYZ

-50-22

HCTAYZ

-50-32

HHTAYZ

-50-42

Page

10

12

14

16

18

20

22

24

Main Materials

Inner Conductor

Copper Clad Aluminum

Copper Clad Aluminum

Copper Clad Aluminum

Copper Clad Aluminum

Corrugated Copper-tube

Smooth Copper-tube

Smooth Copper-tube

Corrugated Copper-tube

Outer Conductor

Corrugated Copper-tube

Corrugated Copper-tube

Corrugated Copper-tube

Corrugated Copper-tube

Corrugated Copper-tube

Corrugated Copper-tube

Corrugated Copper-tube

Corrugated Copper-tube

Jacket

Standard

Linear Low Density PE

Retardant

Non-halogen flame retardant jacket

3/8″

Superflexible

3/8″

1/2″

Superflexible

1/2″

7/8″

Superflexible

7/8″

1-1/4″

1-5/8″

Mechanical Performance

Minimum Bending Radius

mm

Single Bending

15

30

17

80

90

140

200

280

Multiple Bending

50

100

35

125

130

250

380

500

Weight

kg/km

110

120

210

250

450

570

980

1500

Electrical Performance

Velocity %

82

88

81

88

88

88

88

88

Capacitance pF/m

82±2

77±2

83±2

76±2

76±2

76±2

76±2

76±2

Impedance Ω

50±2

Attenuation   dB/100m   20℃   max

150 MHz

5.40

4.58

4.26

2.80

1.69

1.48

1.23

1.01

280 MHz

6.35

450 MHz

9.70

8.16

7.67

4.94

3.03

2.66

2.23

1.86

800 MHz

13.29

11.13

10.53

6.69

4.14

3.65

3.08

2.60

900 MHz

14.19

11.86

11.24

7.12

4.42

3.90

3.29

2.78

1500 MHz

15.72

1800 MHz

21.03

17.41

16.68

10.34

6.51

5.78

4.93

4.22

2000 MHz

22.35

18.48

17.74

10.95

6.92

6.14

5.25

4.51

2400 MHz

24.86

20.50

19.75

12.10

7.69

6.84

5.86

5.06

3000 MHz

28.37

23.30

22.55

13.70

8.76

7.80

6.72

VSWR   max

820MHz~960MHz

1.20

1.20

1.20

1.11

1.20

1.13

1.20

1.20

1700MHz~1900MHz

1.20

1.20

1.20

1.11

1.20

1.13

1.20

1.20

1880MHz~2180MHz

1.25

1.20

1.20

1.15

1.20

1.15

1.20

1.20

2300MHz~2500MHz

1.25

1.20

1.20

1.15

1.20

1.15

1.20

1.20

2500MHz~2700MHz

1.25

1.20

1.20

1.15

1.20

1.15

1.20
