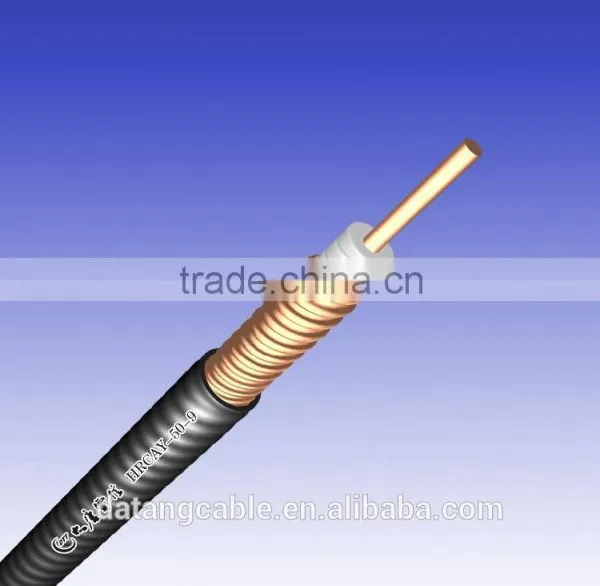

  cost-effective  Radio Frequency 1/2 super soft coaxial cable





Standard Jacket:HCAHY-50-9 (1/2″Superflexible)

Fire retardant Jacket:HCAHYZ-50-9(1/2″Superflexible)

 Characteristics

Low Attenuation, low VSWR,

High expansion,high power rating,

Excellent environmental performance

and Mechanical Performance.

Application

Widely used in wireless

communication base station.

Structure

Inner conductor

Copper Clad Aluminum

Diameter(mm)            3.55±0.10



Electrical Performance

Impedance (Ω)                        50±2

Capacitance (pF/m)                 83±2

Velocity (%)                     81

Dc Resistance(20℃,Ω/km)

Inner Conductor                2.97

Outer Conductor                     3.54

Dc Breakdown, volts(V)    5000

Peak power rating(kW)      15.2

Maximum Frequency(GHz)10.4

Attenuation(dB/100m)and average power(kW)

Frequency    Attenuation  Average

                        Power

150MHz     4.35              2.51

280MHz                  6.06              1.86

450MHz      7.83               1.41

800MHz                   10.74                  1.00

900MHz               11.47          0.96

1500 MHz             15.32                  0.71

1800 MHz             17.02                  0.62

2000 MHz             18.10                  0.60

2400 MHz             20.15                  05.2

3000 MHz             23.01                  0.45



VSWR                  max

824MHz~960MHz                 1.20

1700MHz~1900MHz             1.20



Insulation



3 layers of Insulation

Diameter(mm)            9.0±0.2

Outer conductor

Corrugated Copper-tube

Diameter over copper

Outer conductor(mm)        12.00±0.25

Diameter over trough(mm)8.90±0.25

Pitch(mm)                 3.00±0.20

Jacket

Thickness(mm)           0.9±0.1

Diameter(mm)            13.9±0.2



Engineering data

Weight(kg/km)     210

Minimum Bending Radius (mm)

Single Bending           17

 Multiple Bending           35

Temperature range(℃)

Standard jacket                -40~+70

Fire Retardant Jacket              -25~+70






Standard:IEC 61196-1995


























CHENGDU DATANG TELECOMMUNICATION CABLE Co.Ltd     Tel.: +86-28-87843699

Add.: Chengdu High Technology District, Chengdu, Sichuan Province, P.R.C. P.C.: 611731 Fax: +86-28-87843609




Accessory

Grounding kits:     All kind

Hanger:             Single, multiple

Entrance wall:       single, multiple

Tape:    Butyl rubber tape, plastic tape

Engineering tool:   Cutting tool

Cable tie:                  Fit for all cables



If any accessories and engineering instructions are needed, please contact with us.










Connector

Type:N-M R1/2, N-F R1/2, DIN-M R1/2, DIN-F R1/2

Interface: N, 7-16 DIN, Male or Female

VSWR(Max):           ≤1.10

Insertion loss(dB):       ≤0.3

Impedance (Ω):                50

Insulation Resistance (MΩ): ≥10000

Frequency range(MHz):   1~3000

Proof Voltage(V):             ≤2700

Mating Cycles:            ≥500



Lightning surge protector

Interface: N, 7-16 DIN, Male or Female

Type: Quarter-wa
