CE approved!brick making machine clay/brick making machine cost/brick making machine exporters
1. raw materials:
construction waste, stone, sand, slag, fly ash, clay etc.
2. advantages (compared with common cement brick machine):
A. very high working pressure: The working pressure of this machine is 600T. It is more than 10MPA for every square centimeters;
B. High-strength brick: Due to the very high working pressure, the finished product (brick) has very high-strength (12-15MPA), it can sustain a man with the weight of 75kg immediately after production;
C. No pallet needed: Due to the high-strength of the brick, they can be stacked directly after production, no pallet will be needed;
D. Cost effective: low-cost raw materials; no pallet needed; few workers needed ( 5 people for the production line); Low power cost (52kw per hour).
3. Pictures and specification of each parts:

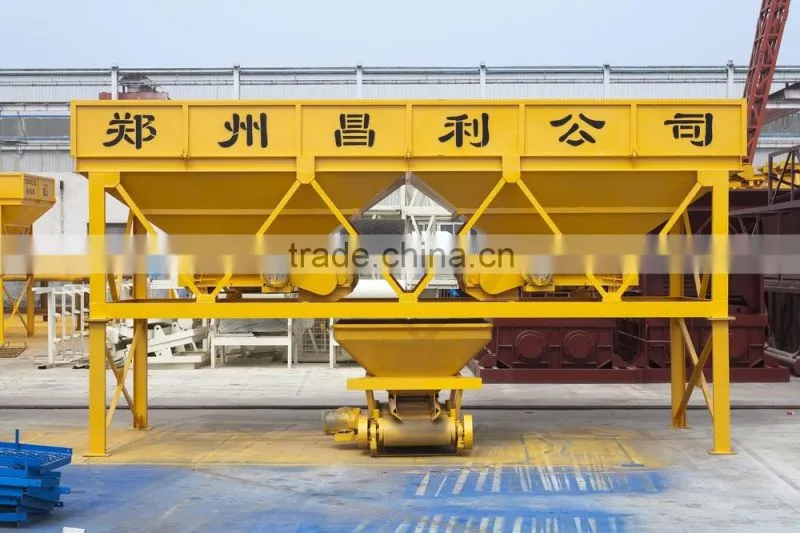

A. PLD800 aggregate batcher
| Model | PLD800 |
| kinds of aggregate | 2 |
| storage bin volume (m3) | 2*3.2 |
| weighing bin volume (m3) | 0.8 |
| productivity (m3/h) | 48 |
| feeding height (m) | 2.8 |
| weighing accuracy | +/-2% |
| power (kw) | 3*4kw |

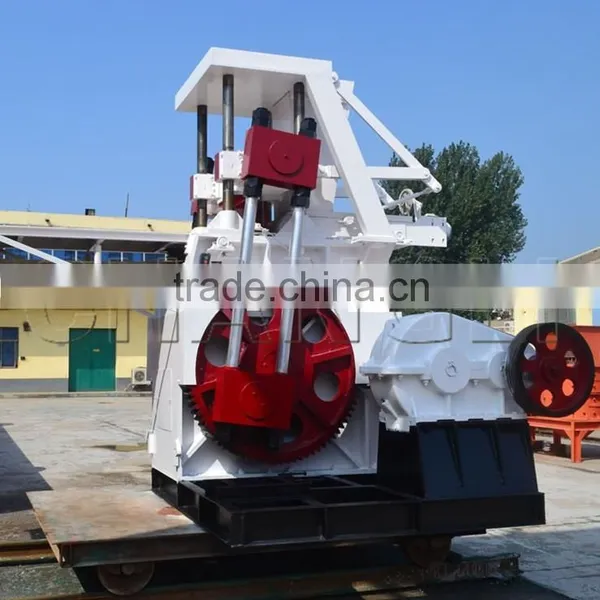

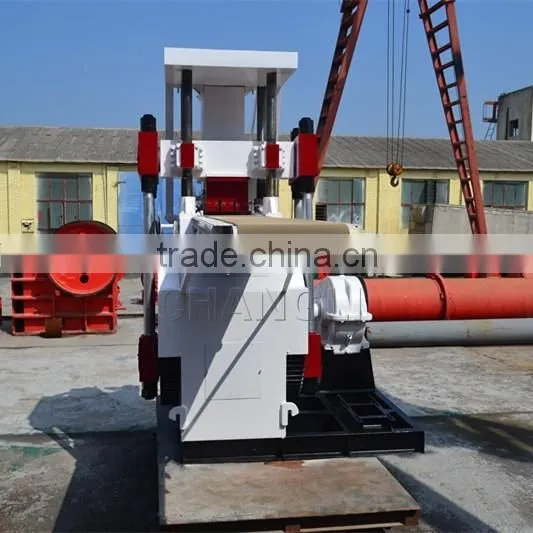

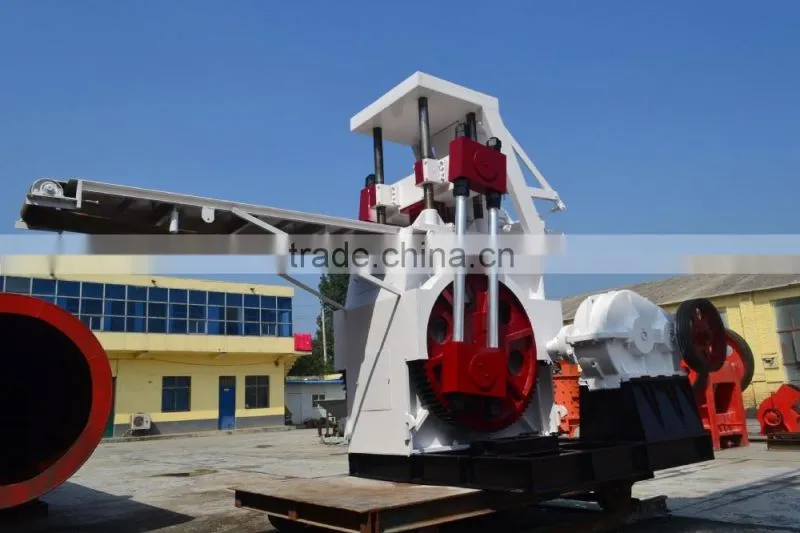

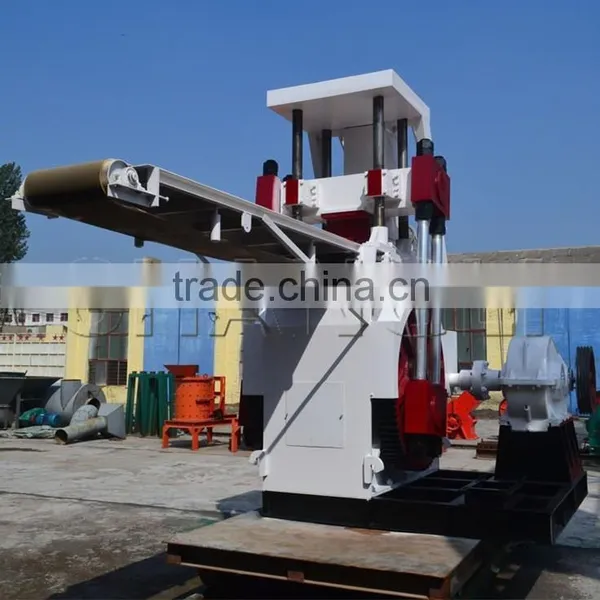

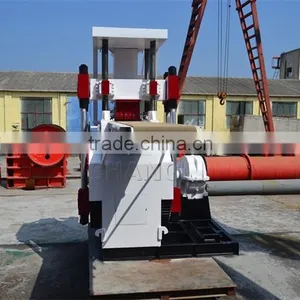

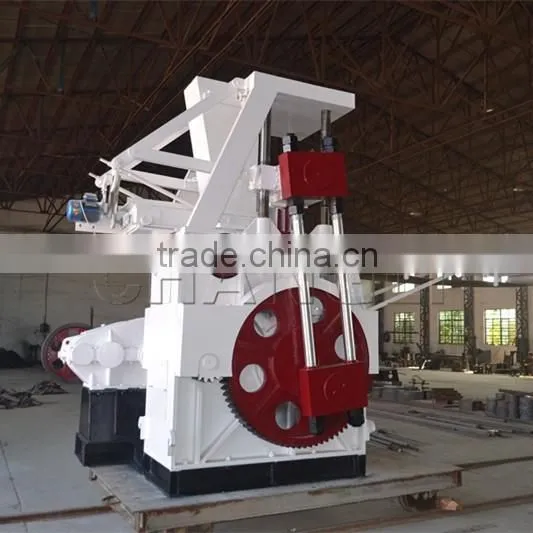

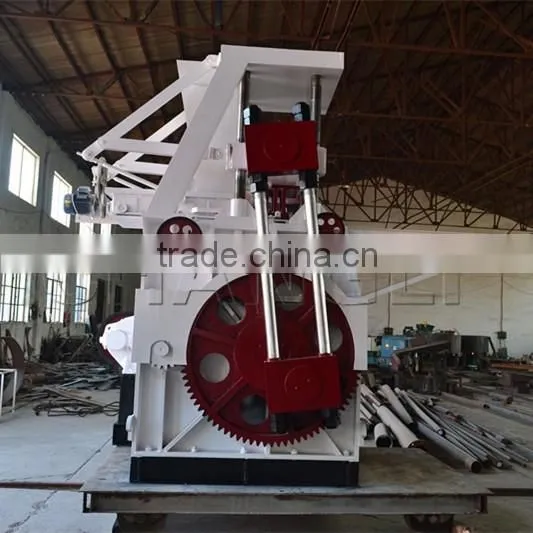

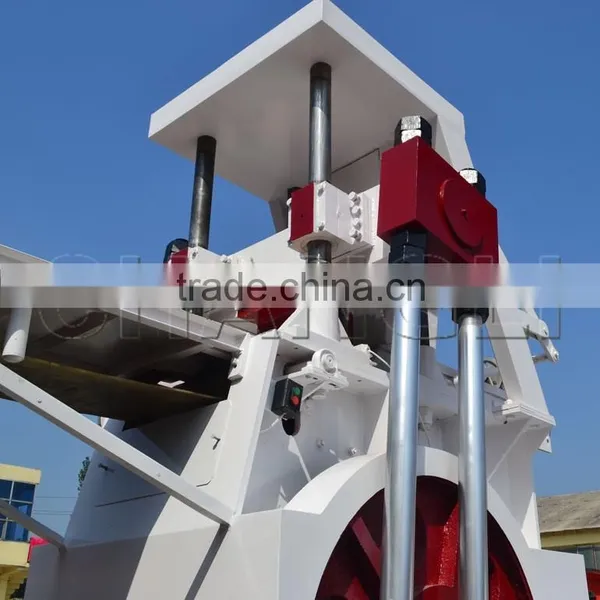

B. MZJ600 brick machine
| Model | QTM600 |
| capacity(pcs/h) | 4000 |
| power(kw) | 37 |
| pressure (ton) | 600 |
| piece/mould | 3 |
| feeding depth (mm) | 100 |
| abrasive material | 40 chrome steel |
| triangular belt model | c4200 |
| weight | 14300kg |
| size | 2560mm*2450mm*3000mm |
| standard brick size | 240mm*115mm*53mm |

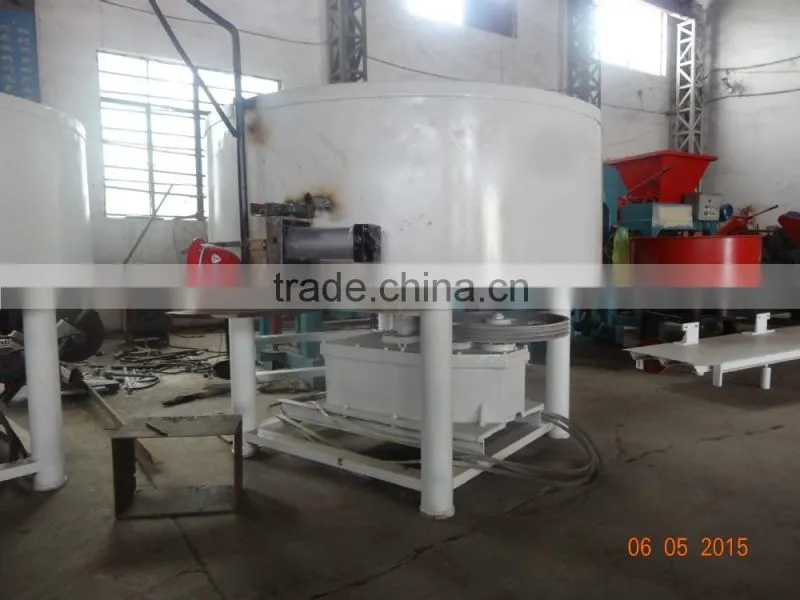

C. edge runner
| Model | Jw500 |
| Volume of material added each time(m3) | 0.5 |
| mixing time (min) | 3 to 8 |
| power (kw) | 11 |
| mixer drum diameter (mm) | 620 |
| speed of mixer blade (round/min) | 26 |
| size | 1820*1500mm |
| weight | 1900kg |

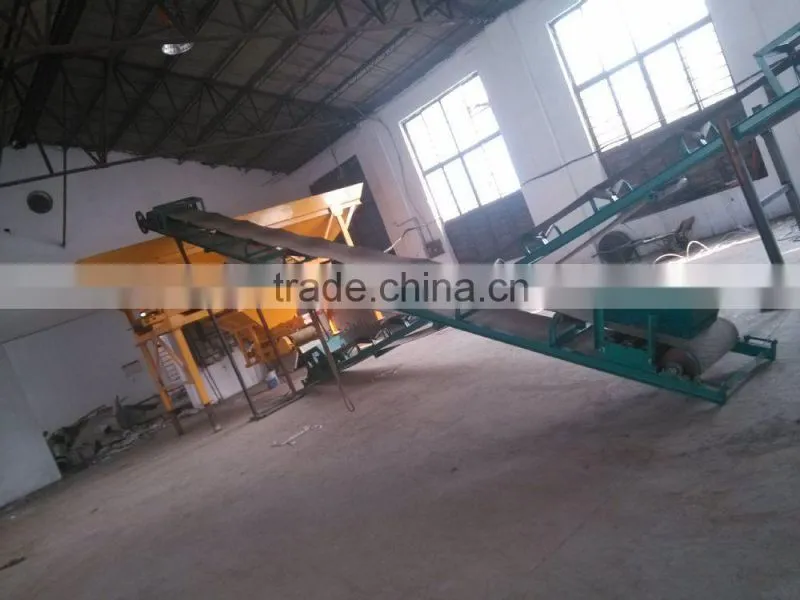

D. belt conveyor
| Model | B500 |
| width of belt conveyor (mm) | 500 |
| length of belt conveyor (m) | 12 |
| power (kw) | 4 |
| speed of belt conveyor (m/s) | 1.3 to 1.6 |
| capacity of belt conveyor (t/h) | 78 to 191 |
| weight (kg) | 600 |
| size (mm) | 10000*750 |

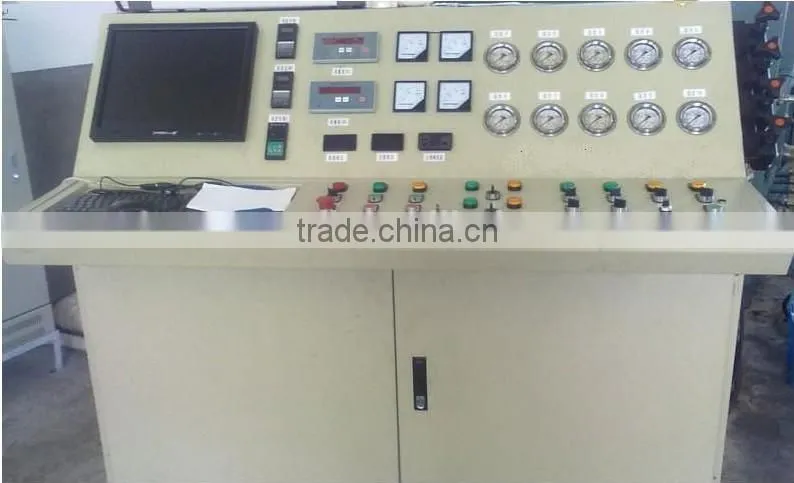

E. PLC control system
4. bricks

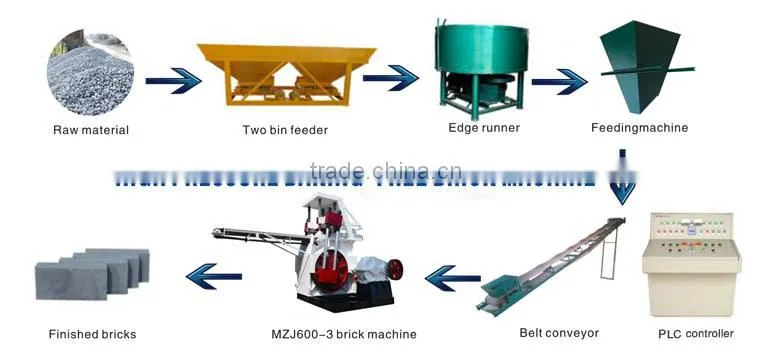

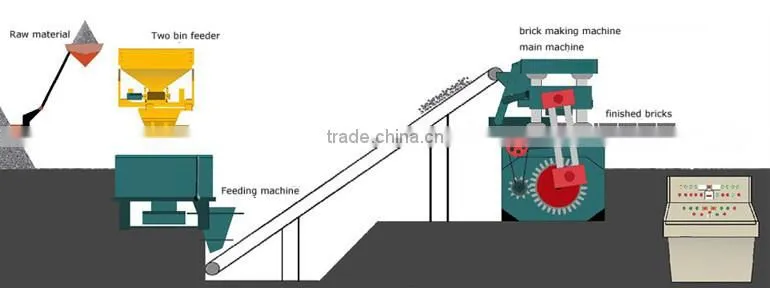

5. Flow chart
A.
B.
1.Brief introduction of our company:
A. we are a verified supplier by alibaba and BV;
B. we have over 30-year experience in the area of construction machinery;
C. we have CE and ISO certificates;
D. we are a supplier of word top 500 company: Lafarge Group;
E. we have over 500 workers to ensure quick delivery;
F. we have R&D development department to develop our equipments;
G. we can send engineers to your site to help you install the machines and train your workers;
H. we can supply all the spare parts to you.
2. Equipments we can supply:
As a leading manufacturer of construction machinery, we can supply the following equipments:
A. brick machine;
B. concrete mixing plant;
C. asphalt mixing plant;
D. stabilized soil mixing plant.
1. Packaging:
A. one 40HQ will be needed ;
B. A wooden-box with the size of 60cm*60cm*60cm will be used for small items like bolt, nult, screw etc.
2. Shipping:
A. by sea or by train; we have rich experience of shipping by sea or by train;
We provide the following services:
1. installation, debugging, operators trainning;
2. maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete plants;
D. If needed, we will send engineers to your site to solve your problems.
2. providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
3. spare parts supply;
Other equipments we supply:

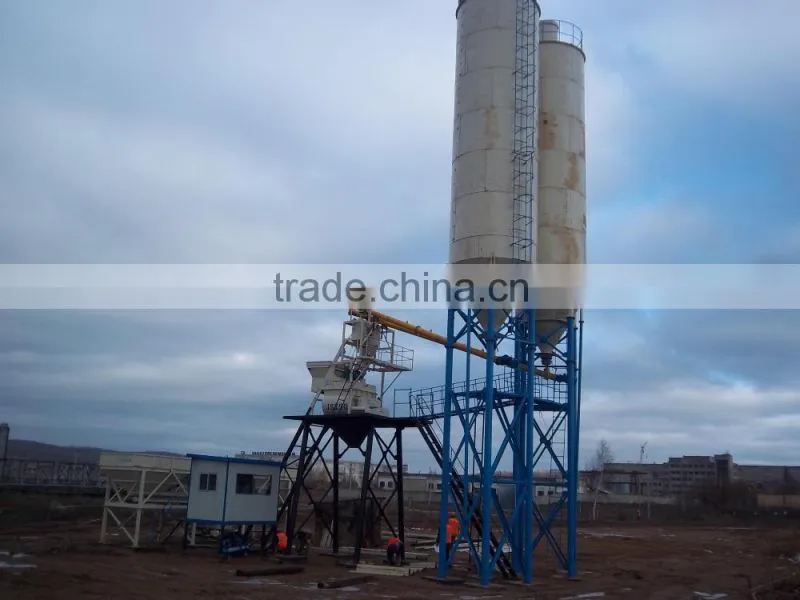

1. concrete mixing plant:
