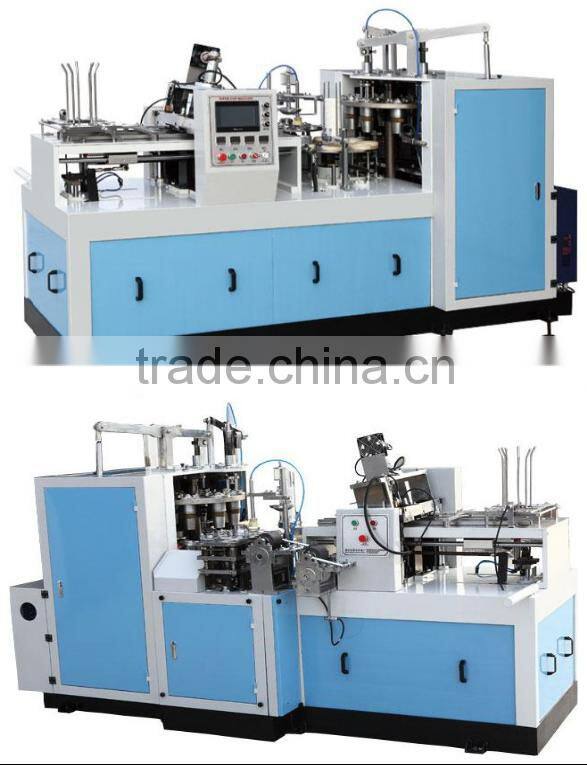

CE identification Easy operate ripple wall paper cup machine (ZBJ-X12)

CE identification Easy operate ripple wall paper cup machine is an ideal paper cup making equipment, which is our new independent research and development machine with comprehensive technical improvement.

It makes both one-side and two-side PE-film-coated paper cups after running a whole procedure of automatic Multi-step pre-printed-cup-fan-paper Feeding (Multi-step paper-feed and Anti-back device to keep the accurate position), cup-body-side welding(ultrasonic wave), robot transfer cup body, silicone-oil lubricating(for top curling), bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling(cool device for 2PE), top curling, cup discharging and collecting.

Advantage of  CE identification Easy operate machine to make disposable paper cup

1. PLC program control system
Intelligent control the movement, easy operate and maintenance, Keep the machine runs smoothly, less fault and less wastage.

2. Three times paper feeding.
Better to adjust the paper fan before folded. Can make the cup looks beautiful.

3. Stepping-motor
Stepping-motor control the bottom-reel paper feeding, which keep the bottom-disk gap within 0.1mm (more stable and save paper). Program (with the sensors) keep the cup-bottom-feed corresponding to its cup-cone-body, the machine will be stopped when out of bottom-paper, avoiding the waste in paper.

4. Use Robot hand
Use Robot hand. Can improve accuracy (taking the cups to the round plate.

5. Self-lubrication system
Adopt self-lubrication system (auto oil circle system), automatic lubricate the move parts(bearing, axis, cam, chain, etc), keep the machine long life time (more durable) and reduce the manual maintenance, reduce the friction between the parts. So the machine can be maintained without manually fueling.

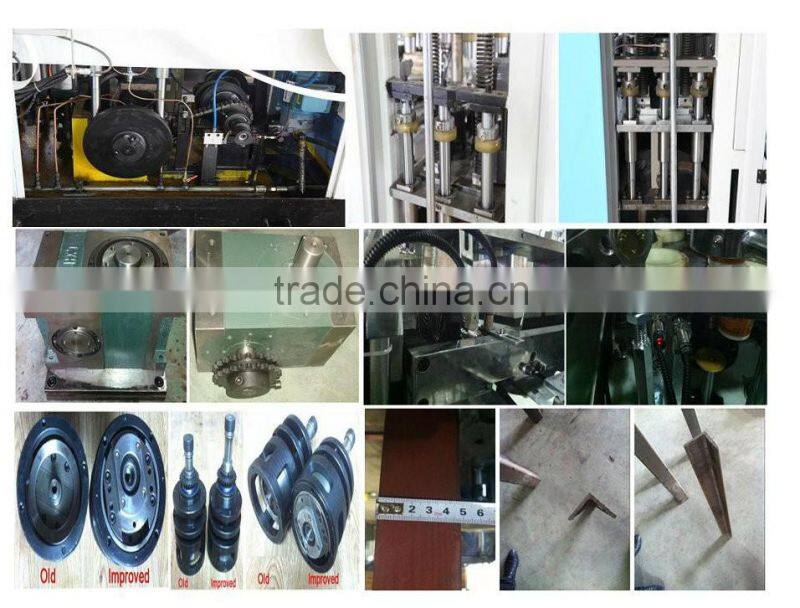

6. Adopt two model Index Gear Box

type125 and type80
v 125 type is much bigger and stronger than 100 type.
v 100 type gear box, if used for one year, is easier to have problem.

7.The frame of the machine
The frame of new machine is thicker which can bear more weight than thinner one. So when the machine works it is more stable.

8. The steel axis used
We use three shaft in the machine and normally two shafts are used.

9. Improved the Knurling Device
More durable and reliable, Better sealing (knurling pattern even and deep), Easy adjustment.

10. Non-contact multi-point light control switch
This device adopt non-contact multi-point light control switch (such as in paper holder, cup tube ,bottom paper and so on, according to customer demand). It can detect working situation, then achieve a fault alarm preventing machine from collision, makes the machine more stable and longer.
