Welcome to Wenzhou Qichen Industry & Trade Co.,Ltd.
whatsapp/Tel: 0086-18268315052 Skype:wzqc006
Brief Description:

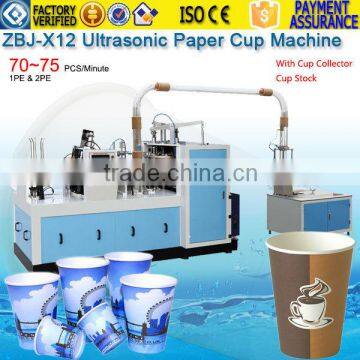

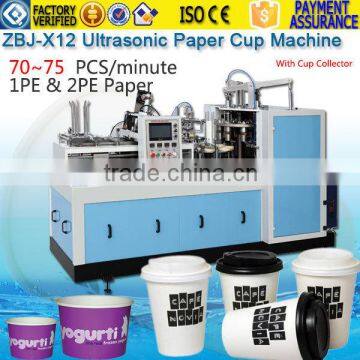

Box Cup Sealing Machine is an idea paper cup making equipment, which is our new independent research and development machine with comprehensive technical improvement.
Box Cup Sealing Machine is an automatic machine with multi-working station,which had the function of photocell, failure alarm, counter and the advantages of humansinm design ,auto lubrition and easier maintenance.

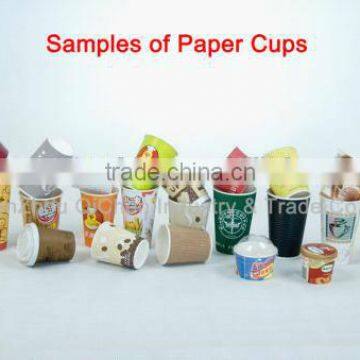

Box Cup Sealing Machine makes both one-side and two-side PE-film -coated paper cups after running a whole procedure of automatic multi-step pre-printed-cup -fan-paper feeding,cup-body-side welding, robot transfer cup body, silicone-oil lubricating, bottom-disk punchine, botttom pre-heating and pre-folding, main heating, bottom knurling, top curling, cuo discharging and collecting.
| Paper Cup Size: | 3oz~12oz (mold exchangeable) |
| Raw Material: | One-side or two side PE(polyethylene)film coated/laminated paper; |
| Suitable paper weight: | 180~350gsm |
| Rated Speed: | 60-80 cups/minute |
| Power Source: | 220V/380V 50Hz, (Better use 380V 3-phase) if your power is different, Please info us in advance. |
| Total Power: | 6KW |
| Total Weight: | GW/NW: 2750KG/2600KG |
| Pack Size (L*W*H) | 2800 x 1600 x 1580 mm |
| Working Air Source: | Air pressure:0.4Mpa; Air Out-put:0.6m³/minute Need to buy Air Compressor |
| Cup Side Welding: | Ultrasonic |
| Cup Bottom Heating: | Hot Air |
| Cup Bottom Knurling: | Heater Knurling (if use single PE coated paper) |
| Cool Device (circle water) knurling, for double PE coated paper | |
| Available to make machine or molds on user order. | |
Advantage and improvement of Box Cup Sealing Machine :
1. PLC program control system
Intelligent control the movement, easy operate and maintenance, Box Cup Sealing Machine runs smoothly, less fault and less wastage.
2. Three times paper feeding.
Better to adjust the paper fan before folded. the Box Cup Sealing Machine can make the cup looks beautiful.
3. Stepping-motor
Stepping-motor control the bottom-reel paper feeding, the Box Cup Sealing Machine can avoiding the waste in paper.
4. Use Robot hand
Box Cup Sealing Machine can improve accuracy taking the cups to the round plate
5. Self-lubrication system
6.Adopt self-lubrication system
Box Cup Sealing Machine
v 125 type is much bigger and stronger than 100 type.
v 100 type gear box, if used for one year, is easier to have problem
7.The frame of the machine
Box Cup Sealing Machine is thicker which can bear more weight than thinner one. So when the machine works it is more stable.
8. The steel axis used
Box Cup Sealing Machine and normally two shafts are used.
9. Improved the Knurling Device
More durable and reliable, Better sealing (knurling pattern even and deep), Easy adjustment.
10. Non-contact multi-point light control switch
FAQ:
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , western union ,and do CFR&CIF etc.
Q2.how can i print it and cut it ?
solution1: buy printed and cutted paper cup fan from us
solution2: find the factory in your area to print and cut for you
solution3:buy the flexo printing machine and die cutting machine to print and cut by yourself .
if you are new in this field ,i suggest you'd better to adopt solution 1 or 2 when you are in first stage.
Q3.does it easy to operate and what can i do if it doesn't work?
First ,our the Box Cup Sealing Machine is stable and easy to operate by one man ,what you do is just learn some basic thing like wet the paper cup fan , lubricating the moving parts regularly .And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
Q4. if the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free
