Automatic Disposable Ice Cream Bowl Making Machine

FOB Price

US$ 10,000 - 15,000 / Set

1 Set(Min. Order)

Port Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Product Type	Paper Bowl Machine
Processing Type	Paper Folding Machine	Place of Origin	Zhejiang, China
Brand Name	QH	Model Number	ZW-A35
Voltage	380V 50Hz, if your power is different, Please info us in advance.	Power(W)	6kw
Dimension(LWH)	2900 x 1500 x 1900 mm	Weight	2500KG
Certification	CE	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

WENZHOU QICHEN INDUS-TRY & TRADE CO.,LTD

TEL: 86-577-65566111 TEL: +86 - 15057755001

Add: Room 101, Block B, Tongqian Lake, Qiaoli Village, Feiyun Street, RuiAn, Zhejiang, China

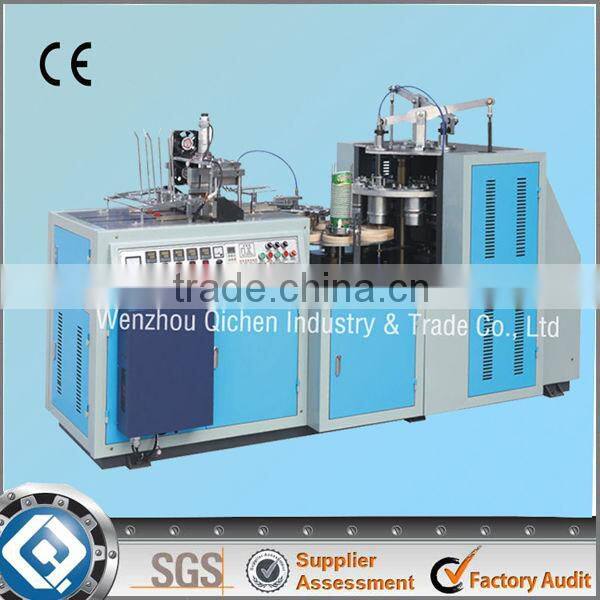

ZW-A35 Ultrasonic Two-PE Paper Bowl Forming Machine

Model ZW-A35 Ultrasonic Two-PE Paper Bowl Forming Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.

It makes both one-side-PE-film-coated and two-side PE-film-coated paper bowls after running a whole procedure of automatic pre-printed-fan-shape-paper feeding, two-step pre-heating, bowl-side-body sealing(ultrasonic wave), silicone-oil lubricating(for top curling), bottom punching, two-step bottom heating, bottom pre-folding, bottom knurling, top curling and bowl discharging.

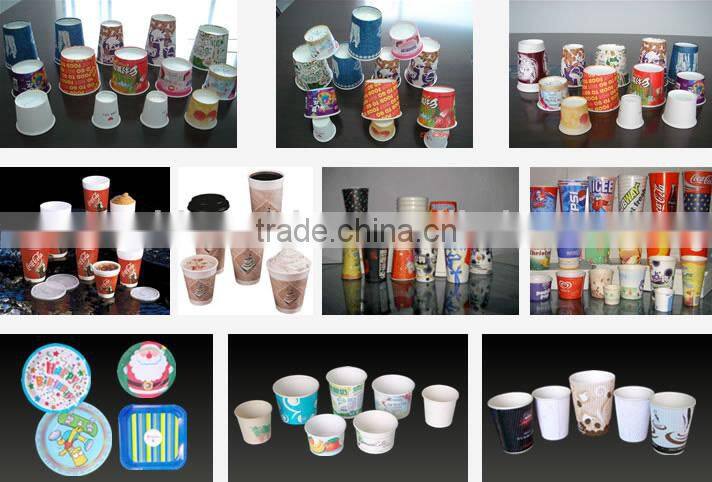

It is an ideal equipment of making soup paper bowls, noodle bowls, bigger paper cups and other large food cone-shaping containers etc.

Product Description

Paper Cup Size:	20oz~50oz (mold exchangeable)
Raw Material:	One-side or two side PE(polyethylene)film coated/laminated paper;
Suitable paper weight:	140~450gsm
Rated Speed:	35~40 cups/minute
Power Source:	380V 50Hz, if your power is different, Please info us in advance.
Total Power:	6KW
Total Weight:	2500KG
Pack Size (LWH)	2900 x 1500 x 1900 mm
Working Air Source:	Air pressure:0.4Mpa; Air Out-put:0.6m³/minute Need to buy Air Compressor
Cup Side Welding:	Ultrasonic
Cup Bottom Heating:	Hot Air
Cup Bottom Knurling:	Heater Knurling (if use single PE coated paper)
Cup Bottom Knurling:	Cool Device (recycle water) knurling, for double PE coated paper

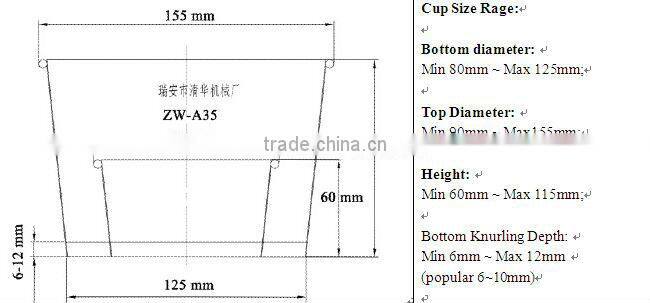

ZW-A35 machine cup size range:

Packaging & Delivery

Packaging Details:Standard export case.

Delivery Times: within 45 days after the receipt of advanced payment.
