Manufacturer High Speed Good Quality QH-9905 Barrel Corrugated Machine

Welcome to Wenzhou Qichen Industry & Trade Co.,Ltd.

Quality and the after sell service is our aim: we do not only sell the products but solutions.We believe that you will be satisfied with both our products and service.

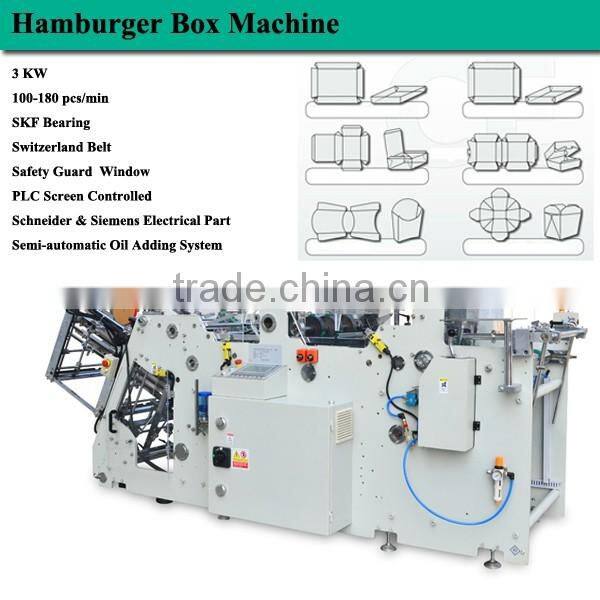

QH-9905 barrel corrugated machine is an automatic machine, specialize in making food carton, box, container which are made from cardboard, paper, paperboard, carton, corrugated paper etc.

The food box(carton, container, dish, tray) is widely used as food container, hamburger box, burger box, hot-dog box(tray), one block box, food pail box (Chinese food box, take-away box), noodle box, fries box(chips box, chips tray), lunch box, meal box, etc.

barrel corrugated machine Technical Specification:

• Model: QH-9905 barrel corrugated machine
• Paper box forming machine
• Speed: 80~ 180 box/minute
• Welding Method: Water-Glue System Welding; (Food grade glue, POLYVINYL-ACETATE EMULSION),
• Available Material: 200~600gsm cardboard, paperboard, paper, film coated paper, etc.
• Material Thickness: Max. 1.5mm
• Power: 3KW,
• Power Source: 380V, 220V 50/60Hz,
• Machine Size (L*W*H): 2950*1320*1500
• Weight: 2000KG;
• Air Source: Pressure: 6KG/cm2 ; Out-put: 200 L/minute ;
• Available to make machines and molds on user order.

barrel corrugated machine Advantage:

• # Compact structure, Strong frame, keep the machine reliable and durable with low noise.
• # Hard Plastic-glass cover, Safe and visible for user.
• # Easy exchange molds to make different products, charging and adjusting time is very short.
• # PLC program control the whole line, available to make complicated boxes.
• # Automatic collection, stock, and count.
• # Human being designed control button and panel, more easy and safe runs by user.
