Q235 Adjustable Props Jack and Scaffolding u Head Jack Base for Sale
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Factory Price Painting Galvanized Adjustable Screw Jack, Jack Base, U-head Jack
-
Screw Jack Base /Scaffolding Fittings Jack Nut Use With Screw Rod
-
Low Price and High Quality Hot Dip Galvanized U Head Screw Jack/jack Base
-
High Quality Solid Screw Jack Base for Scaffolding Parts
-
Painted Solid or Hollow Adjustable Jack Base/u Head Jack Base/moving U-head Base
-
Scaffolding Jack Base With Swivel Plate Adjustable Base Jack Screw Jack With Swivel Base Plate
Product Details
| Place of Origin | Hebei, China | Brand Name | LQ | |
| Model Number | Q235 adjustable props jack and scaffolding u head jack base for sale |
Product Description
Q235 adjustable props jack and scaffolding u head jack base for sale
Q235 adjustable props jack and scaffolding u head jack base for sale SPECIFICATIONS
1)Solid bar
a) length:300,400mm,600m,800m etc.
b) O.D.:28mm,30mm,32mm,34mm,38mm
2)Hollow tube:
a) length:300,400mm,600m,800m etc.
b)O.D.:36mm,38mm,40mm,48mm
Both the solid bar or hollow tube jack base can be with or without U-Head
3) surface: Powerder coating, white galvanized or Black finish
Q235 adjustable props jack and scaffolding u head jack base for sale -Adjustable Base Jack
| Pipe | Plate |
| M30(Solid) x 600mm | 120mm x 120mm x 4mm |
| M32(Solid) x 600mm | 140mm x 140mm x 4mm |
| M34(Solid) x 600mm | 150mm x 150mm x 6mm |
| 38(Hollow) x 4 x 600mm | 120mm x 120mm x 5mm |
Q235 adjustable props jack and scaffolding u head jack base for sale -Adjustable Up U-Head Jack
| Pipe | U-Head |
| M30(Solid) x 600mm | 120mm x 100mm x 45mm x 4mm |
| M32(Solid) x 600mm | 150mm x 120mm x 50mm x 4.5mm |
| M34(Solid) x 600mm | 150mm x 150mm x 50mm x 6mm |
| 38(Hollow) x 4 x 600mm | 120mm x 120mm x 30mm x 3mm |
Q235 adjustable props jack and scaffolding u head jack base for sale -Nut
| Nut | Weight |
| Nut Type A | 0.2KG |
| Nut Type B | 0.25KG |
| Nut Type C | 0.3KG |
| Nut Type D | 0.4KG |
Q235 adjustable props jack and scaffolding u head jack base for sale -Hollow
Leading screw | U shape plate | Jack nut | Total weight |
34×4×400mm | 150×120×50×5mm | 0.55kg | 2.91kg |
34×4×600mm | 150×120×50×5mm | 0.55kg | 3.739kg |
38×4×400mm | 150×150×50×6mm | 0.50kg | 3.607kg |
38×4×600mm | 150×150×50×6mm | 0.50kg | 4.278kg |
38×4×780mm | 150×150×50×6mm | 0.50kg | 4.881kg |
48×4/5×600mm | 150×150×50×8mm | 1.0kg | 6.241/6.818kg |
48×4/5×820mm | 150×150×50×8mm | 1.0kg | 7.195/7.984kg |
Q235 adjustable props jack and scaffolding u head jack base for sale -Solid
Leading screw | U shape plate | Jack nut | Total weight |
30×600mm | 150×120×50×4/5mm | 0.25kg | 4.092/4.327kg |
32×600mm | 150×120×50×4/5mm | 0.30kg | 4.572/4.807kg |
34×600mm | 150×120×50×4/5mm | 0.40kg | 5.132/5.367kg |
30×400mm | 150×120×50×4/5mm | 0.25kg | 3.126/3.361kg |
32×400mm | 150×120×50×4/5mm | 0.30kg | 3.463/3.698kg |
34×400mm | 150×120×50×4/5mm | 0.40kg | 3.869/4.104kg |

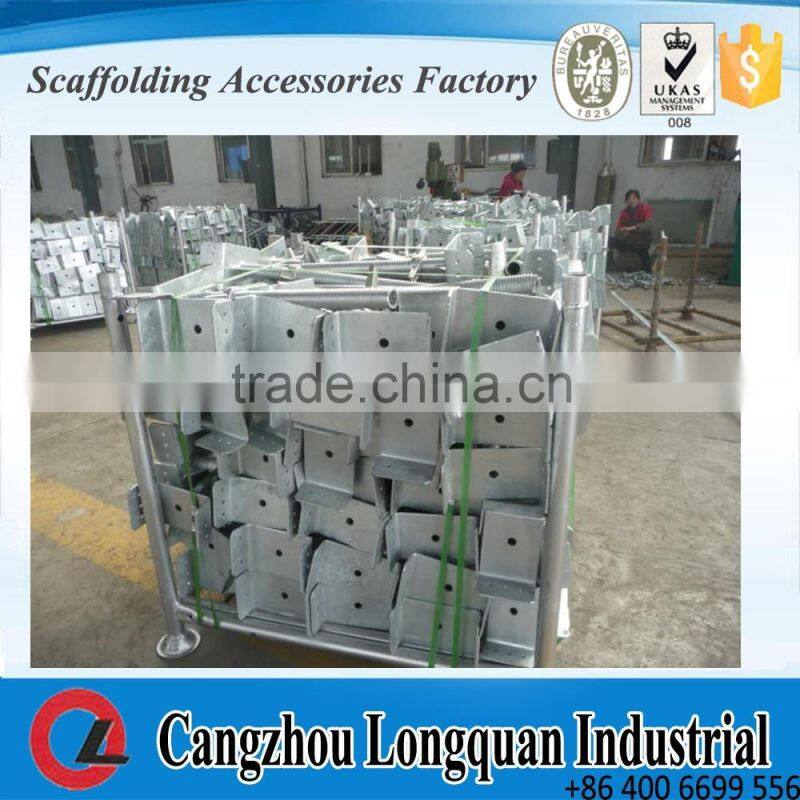

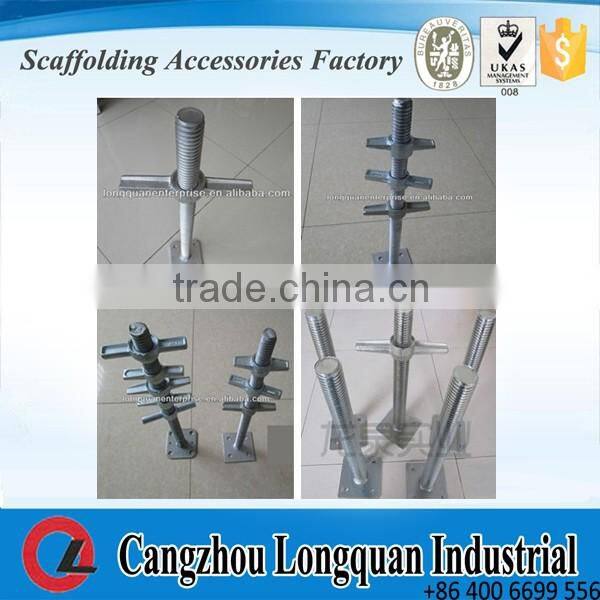

Q235 adjustable props jack and scaffolding u head jack base for sale SHOW

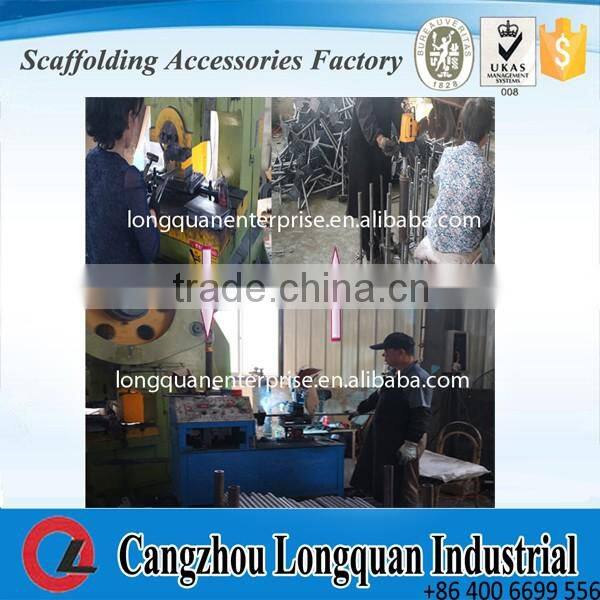

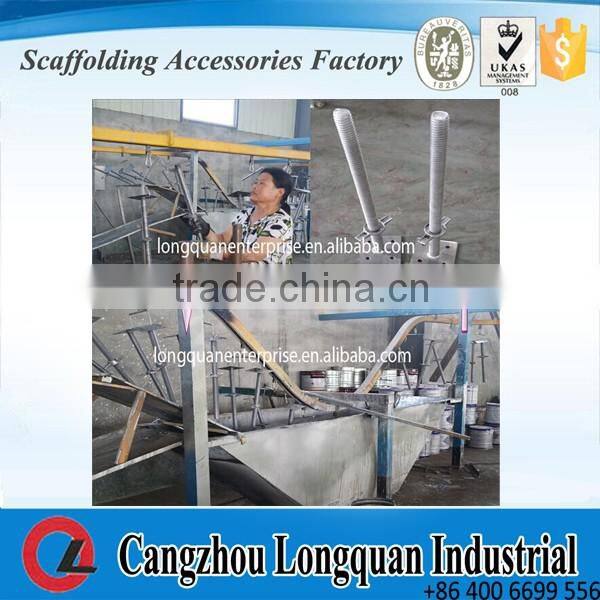

Q235 adjustable props jack and scaffolding u head jack base for sale PRODUCTS PROCESS

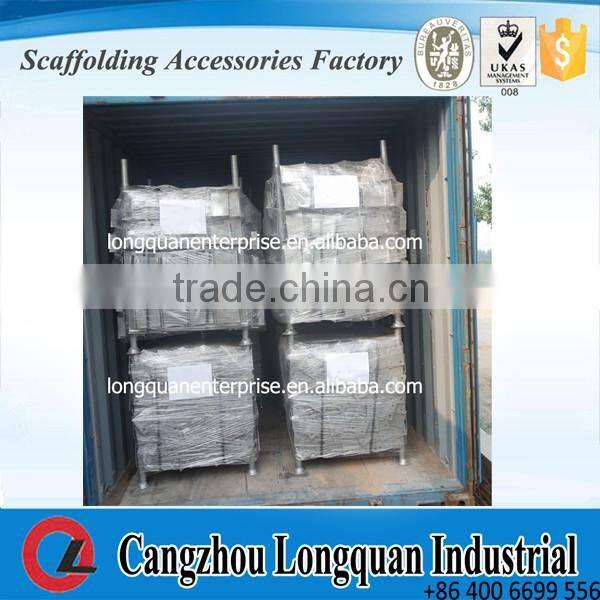

Q235 adjustable props jack and scaffolding u head jack base for sale PACKING & SHIPPING
Q: Who are you?
We are experienced manufacturer and exporter with over 20 years supplying history. We keep steady and long-term cooperation with customers in Europe, Australia, Middle East, SEA and etc.
Q: Why choose you?
We have high technology and experienced workers, who help us to guarantee the fast production, so the delivery is also prompt. We also provide professional service before and after service.
Q: What are your main products?
Our main products are formwork accessories and scaffolding fittings. Customers’ requirement supported.
Scaffolding Systems
Scaffolding Accessories
Formwork and Plywood
Formwork Accessories
♥ Your reply will be replied within 12 hours.
♥ Fast delivery time and good after service.
♥ Keep the mass production as the sample in high quality
♥ Freight forwarder: faster, safer, and convenient.
♥ Good factory price.
