screw jack for scaffolding
screw jack for scaffolding SPECIFICATIONS
1)Solid bar
a) length:300,400mm,600m,800m etc.
b) O.D.:28mm,30mm,32mm,34mm,38mm
2)Hollow tube:
a) length:300,400mm,600m,800m etc.
b)O.D.:36mm,38mm,40mm,48mm
Both the solid bar or hollow tube jack base can be with or without U-Head
3) surface: Powerder coating, white galvanized or Black finish
screw jack for scaffolding -Adjustable Base Jack
| Pipe | Plate |
| M30(Solid) x 600mm | 120mm x 120mm x 4mm |
| M32(Solid) x 600mm | 140mm x 140mm x 4mm |
| M34(Solid) x 600mm | 150mm x 150mm x 6mm |
| 38(Hollow) x 4 x 600mm | 120mm x 120mm x 5mm |

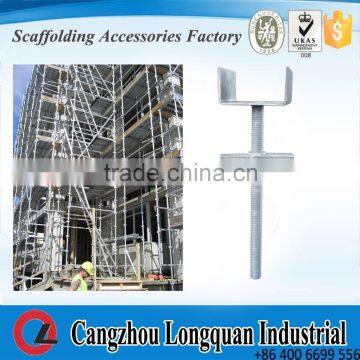

screw jack for scaffolding-Adjustable Up U-Head Jack
| Pipe | U-Head |
| M30(Solid) x 600mm | 120mm x 100mm x 45mm x 4mm |
| M32(Solid) x 600mm | 150mm x 120mm x 50mm x 4.5mm |
| M34(Solid) x 600mm | 150mm x 150mm x 50mm x 6mm |
| 38(Hollow) x 4 x 600mm | 120mm x 120mm x 30mm x 3mm |
screw jack for scaffolding -Nut
| Nut | Weight |
| Nut Type A | 0.2KG |
| Nut Type B | 0.25KG |
| Nut Type C | 0.3KG |
| Nut Type D | 0.4KG |
screw jack for scaffolding -Hollow
Leading screw |
U shape plate |
Jack nut |
Total weight |
34×4×400mm |
150×120×50×5mm |
0.55kg |
2.91kg |
34×4×600mm |
150×120×50×5mm |
0.55kg |
3.739kg |
38×4×400mm |
150×150×50×6mm |
0.50kg |
3.607kg |
38×4×600mm |
150×150×50×6mm |
0.50kg |
4.278kg |
38×4×780mm |
150×150×50×6mm |
0.50kg |
4.881kg |
48×4/5×600mm |
150×150×50×8mm |
1.0kg |
6.241/6.818kg |
48×4/5×820mm |
150×150×50×8mm |
1.0kg |
7.195/7.984kg |
screw jack for scaffolding-Solid
Leading screw |
U shape plate |
Jack nut |
Total weight |
30×600mm |
150×120×50×4/5mm |
0.25kg |
4.092/4.327kg |
32×600mm |
150×120×50×4/5mm |
0.30kg |
4.572/4.807kg |
34×600mm |
150×120×50×4/5mm |
0.40kg |
5.132/5.367kg |
30×400mm |
150×120×50×4/5mm |
0.25kg |
3.126/3.361kg |
32×400mm |
150×120×50×4/5mm |
0.30kg |
3.463/3.698kg |
34×400mm |
150×120×50×4/5mm |
0.40kg |
3.869/4.104kg |
screw jack for scaffolding SHOW
screw jack for scaffolding PRODUCTS PROCESS

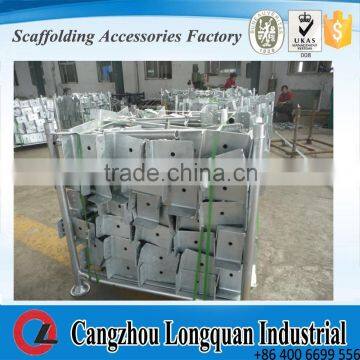

screw jack for scaffolding PACKING & SHIPPING
