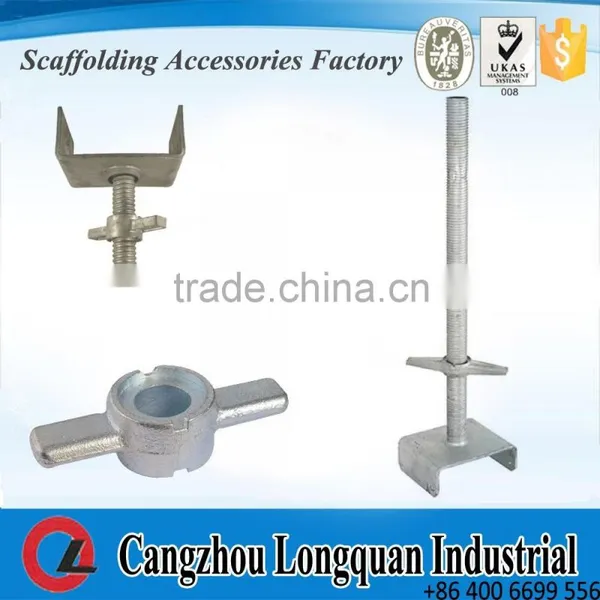

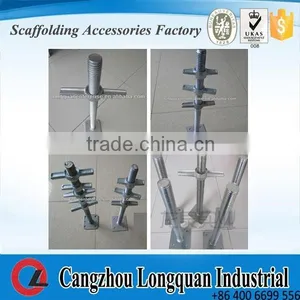

U head Jack base scaffolding u head jack base
U head Jack base scaffolding u head jack base SPECIFICATIONS
1)Solid bar
a) length:300,400mm,600m,800m etc.
b) O.D.:28mm,30mm,32mm,34mm,38mm
2)Hollow tube:
a) length:300,400mm,600m,800m etc.
b)O.D.:36mm,38mm,40mm,48mm
Both the solid bar or hollow tube jack base can be with or without U-Head
3) surface: Powerder coating, white galvanized or Black finish

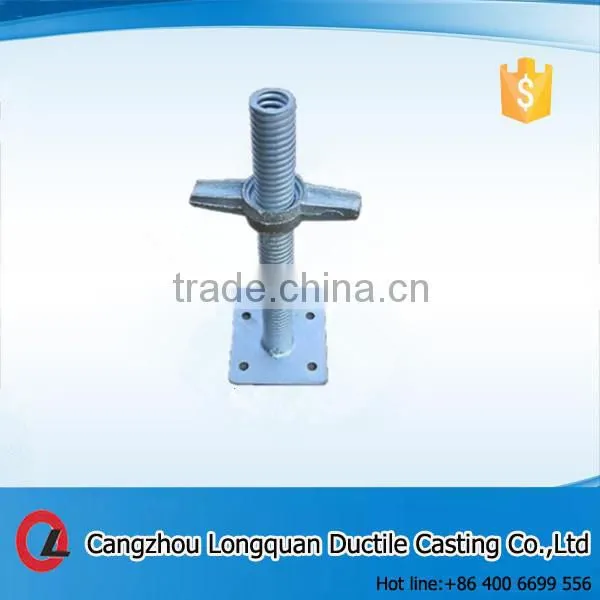

U head Jack base scaffolding u head jack base -Adjustable Base Jack
| Pipe | Plate |
| M30(Solid) x 600mm | 120mm x 120mm x 4mm |
| M32(Solid) x 600mm | 140mm x 140mm x 4mm |
| M34(Solid) x 600mm | 150mm x 150mm x 6mm |
| 38(Hollow) x 4 x 600mm | 120mm x 120mm x 5mm |

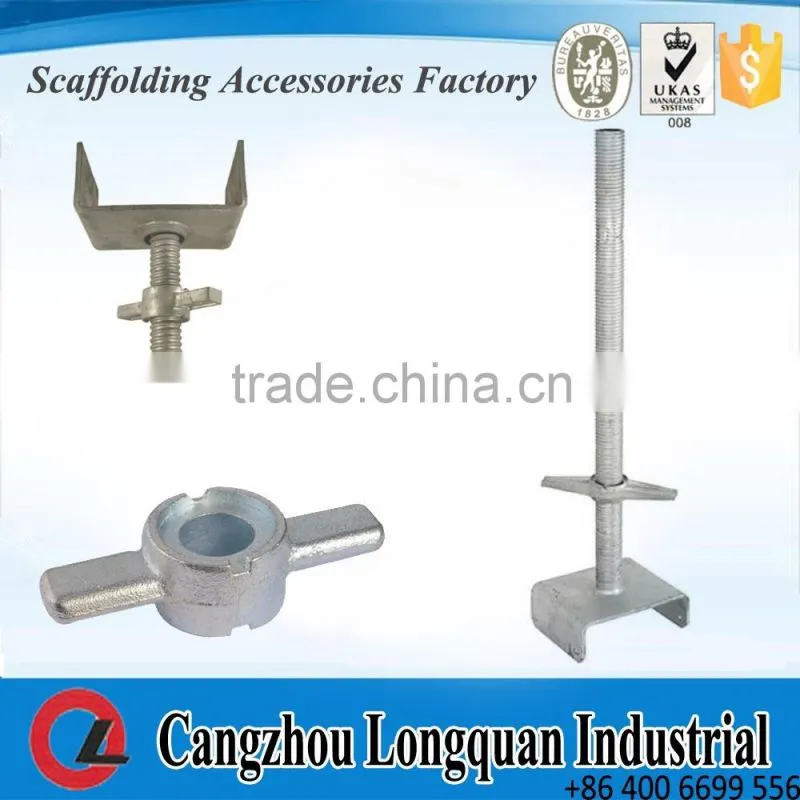

U head Jack base scaffolding u head jack base -Adjustable Up U-Head Jack
| Pipe | U-Head |
| M30(Solid) x 600mm | 120mm x 100mm x 45mm x 4mm |
| M32(Solid) x 600mm | 150mm x 120mm x 50mm x 4.5mm |
| M34(Solid) x 600mm | 150mm x 150mm x 50mm x 6mm |
| 38(Hollow) x 4 x 600mm | 120mm x 120mm x 30mm x 3mm |
U head Jack base scaffolding u head jack base -Nut
| Nut | Weight |
| Nut Type A | 0.2KG |
| Nut Type B | 0.25KG |
| Nut Type C | 0.3KG |
| Nut Type D | 0.4KG |
U head Jack base scaffolding u head jack base -Hollow
Leading screw |
U shape plate |
Jack nut |
Total weight |
34×4×400mm |
150×120×50×5mm |
0.55kg |
2.91kg |
34×4×600mm |
150×120×50×5mm |
0.55kg |
3.739kg |
38×4×400mm |
150×150×50×6mm |
0.50kg |
3.607kg |
38×4×600mm |
150×150×50×6mm |
0.50kg |
4.278kg |
38×4×780mm |
150×150×50×6mm |
0.50kg |
4.881kg |
48×4/5×600mm |
150×150×50×8mm |
1.0kg |
6.241/6.818kg |
48×4/5×820mm |
150×150×50×8mm |
1.0kg |
7.195/7.984kg |
U head Jack base scaffolding u head jack base -Solid
Leading screw |
U shape plate |
Jack nut |
Total weight |
30×600mm |
150×120×50×4/5mm |
0.25kg |
4.092/4.327kg |
32×600mm |
150×120×50×4/5mm |
0.30kg |
4.572/4.807kg |
34×600mm |
150×120×50×4/5mm |
0.40kg |
5.132/5.367kg |
30×400mm |
150×120×50×4/5mm |
0.25kg |
3.126/3.361kg |
32×400mm |
150×120×50×4/5mm |
0.30kg |
3.463/3.698kg |
34×400mm |
150×120×50×4/5mm |
0.40kg |
3.869/4.104kg |

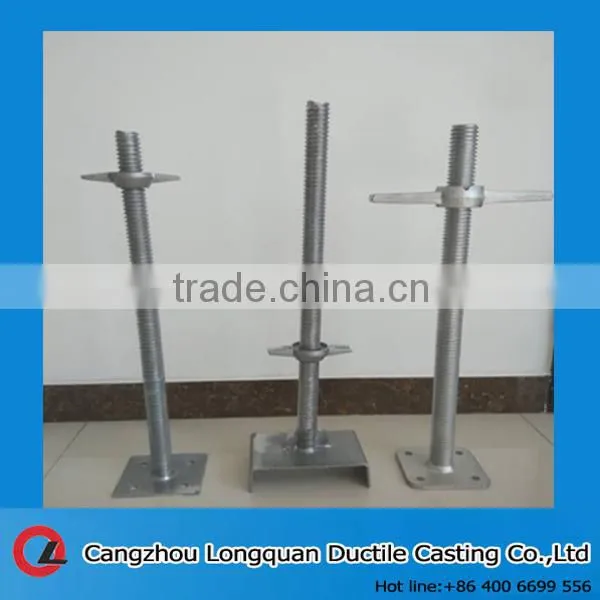

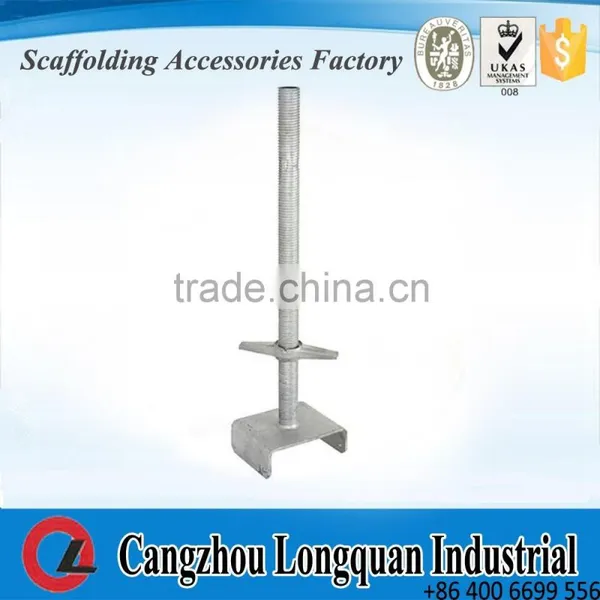

U head Jack base scaffolding u head jack base SHOW

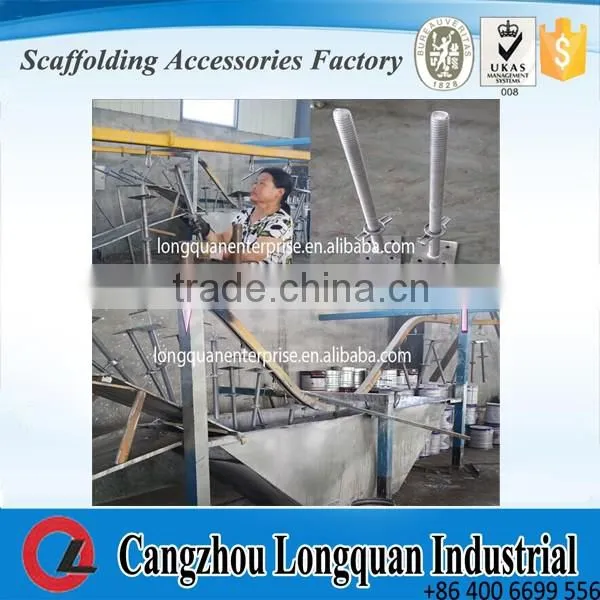

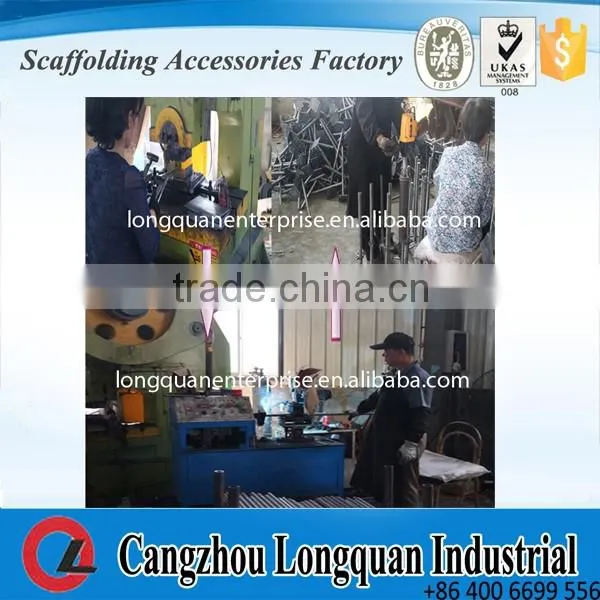

U head Jack base scaffolding u head jack base PRODUCTS PROCESS

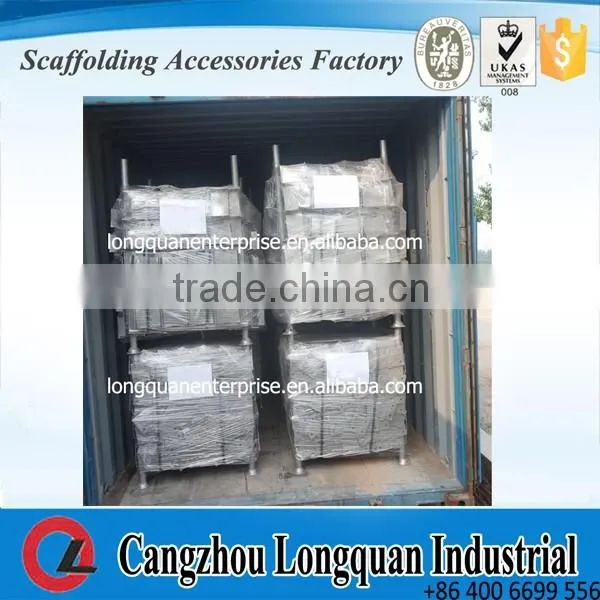

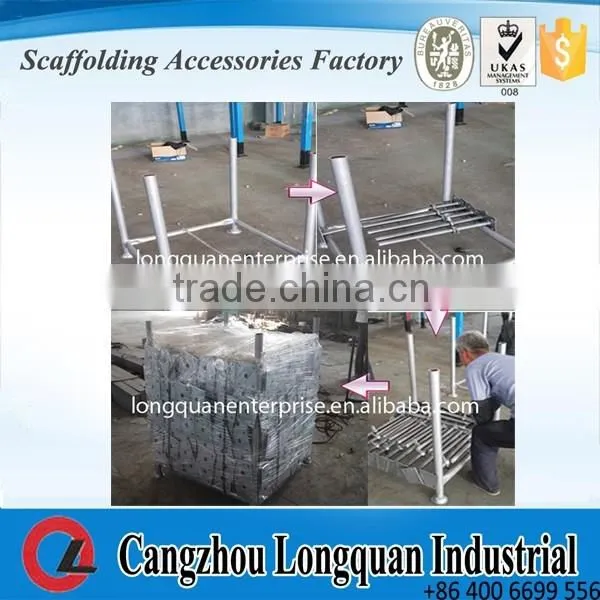

U head Jack base scaffolding u head jack base PACKING & SHIPPING
Q: Who are you?
We are experienced manufacturer and exporter with over 20 years supplying history. We keep steady and long-term cooperation with customers in Europe, Australia, Middle East, SEA and etc.
Q: Why choose you?
We have high technology and experienced workers, who help us to guarantee the fast production, so the delivery is also prompt. We also provide professional service before and after service.
Q: What are your main products?
Our main products are formwork accessories and scaffolding fittings. Customers’ requirement supported.
Scaffolding Systems
Scaffolding Accessories
Formwork and Plywood
Formwork Accessories
♥ Your reply will be replied within 12 hours.
♥ Fast delivery time and good after service.
♥ Keep the mass production as the sample in high quality
♥ Freight forwarder: faster, safer, and convenient.
♥ Good factory price.
