Cangzhou Scaffolding Fittings High Durability Screw Jack Base

FOB Price

US$ 3.55 - 6.53 / Piece

2000 Pieces(Min. Order)

Port Xingang
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	LONGQUAN
Model Number	LQ

Product Description

Cangzhou Scaffolding Fittings High Durability Screw Jack Base

Product Description

High Durability Screw Jack Base

a) Solid / hollow jack with u head or not

b) length:300,400,600,800mm etc.

c) O.D.:28mm-42mm

d) material: Q235

Product Picture

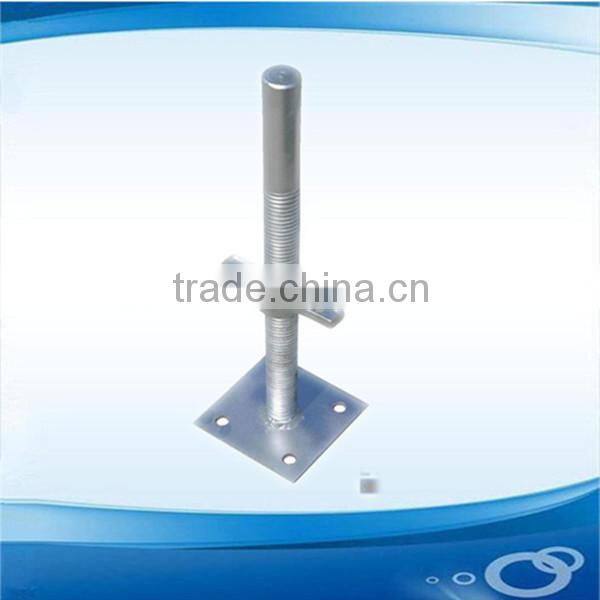

Cangzhou Scaffolding Fittings High Durability Screw Jack Base picture show

Specifications

1)Solid bar

a) length:300,400mm,600m,800m etc. B) O.D.:28mm,30mm,32mm,34mm,38mm

2)Hollow tube:

a) length:300,400mm,600m,800m etc. b)O.D.:36mm,38mm,40mm,48mm

Both the solid bar or hollow tube jack base can be with or without U-Head

3) surface: Powerder coating, white galvanized or Black finish

Adjustable Base Jack

Pipe	Plate
M30(Solid) x 600mm	120mm x 120mm x 4mm
M34(Solid) x 600mm	150mm x 150mm x 6mm
M32(Solid) x 600mm	140mm x 140mm x 4mm
38(Hollow) x 4 x 600mm	120mm x 120mm x 5mm

Adjustable Up U-Head Jack

Pipe	Plate
M30(Solid) x 600mm	120mm x 100mm x 45mm x 4mm
M34(Solid) x 600mm	150mm x 150mm x 50mm x 6mm
M32(Solid) x 600mm	150mm x 120mm x 50mm x 4.5mm
38(Hollow) x 4 x 600mm	120mm x 120mm x 30mm x 3mm

Nut

Nut	Weight
Nut Type A	0.2kg
Nut Type B	0.25kg
Nut Type C	0.3kg
Nut Type D	0.4kg

Hollow

Leading screw	U shape plate	Jack nut	Total weight
34×4×400mm	150×120×50×5mm	0.55kg	2.91kg
34×4×600mm	150×120×50×5mm	0.55kg	3.739kg
38×4×400mm	150×150×50×6mm	0.50kg	3.607kg
38×4×600mm	150×150×50×6mm	0.50kg	4.278kg
38×4×780mm	150×150×50×6mm	0.50kg	4.881kg
48×4/5×600mm	150×150×50×8mm	1.0kg	6.241/6.818kg
48×4/5×820mm	150×150×50×8mm	1.0kg	7.195/7.984kg

Solid

Leading screw	U shape plate	Jack nut	Total weight
30×600mm	150×120×50×4/5mm	0.25kg	4.092/4.327kg
32×600mm	150×120×50×4/5mm	0.30kg	4.572/4.807kg
34×600mm	150×120×50×4/5mm	0.40kg	5.132/5.367kg
30×400mm	150×120×50×4/5mm	0.25kg	3.126/3.361kg
32×400mm	150×120×50×4/5mm	0.30kg	3.463/3.698kg
34×400mm	150×120×50×4/5mm	0.40kg	3.869/4.104kg
