Product Description
Box Folding Machine
Box Folding Machine : Box Folding Machineadopt HMI and PLCcontroller, imported electronnics, feeding unit controlled by separately motor and inverter, railway running, keep the machine performance atable ,easy control and easy operate.

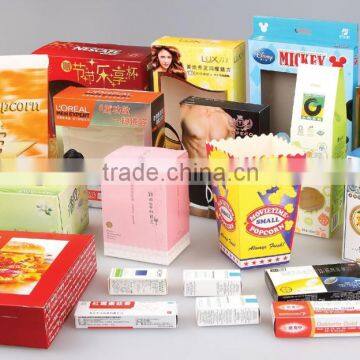

Box Folding Machine : an idea equipment of making 4 conner or 6 conner box (box with cover and fold),Carton box ,cardboard carton I.E. Which the box widely uesd for snacks, cake, muffin, ect food package.
1.Size of 6 folds box and folding box:
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 650 | 800 | 900 | 1200 |
| MIN | 300 | 300 | 400 | 400 | |
| B | MAX | 500 | 600 | 600 | 700 |
| MIN | 150 | 200 | 200 | 300 | |
| C | MAX | 100 | 100 | 100 | 100 |
| MIN | 25 | 25 | 25 | 25 | |
2. Size of 4 corners box and folding box
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 650 | 800 | 900 | 1200 |
| MIN | 150 | 180 | 200 | 250 | |
| B | MAX | 500 | 600 | 600 | 700 |
| MIN | 120 | 150 | 200 | 200 | |
| C | MAX | 100 | 100 | 100 | 100 |
| MIN | 25 | 25 | 25 | 25 | |
3.Size of bottom-locked carton and folding carton
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 750 | 950 | 1020 | 1420 |
| MIN | 180 | 200 | 250 | 250 | |
| B | MAX | 500 | 600 | 700 | 800 |
| MIN | 80 | 100 | 120 | 120 | |
| H | MAX | 100 | 100 | 100 | 100 |
| MIN | 25 | 30 | 30 | 30 | |
4.Carton type and size:
| Item/Model | 780Type | 980 Type | 1050 Type | 1450 Type | |
| A | MAX | 750 | 950 | 1020 | 1420 |
| MIN | 120 | 200 | 250 | 250 | |
| B | MAX | 800 | 900 | 1000 | 1200 |
| MIN | 60 | 60 | 80 | 100 | |
Box Folding Machine
1.Feeding section
a. Box Folding Machine : auto feed correctly and continuously, internal of feeding is adjusted by continuously variable speeder;
b. Box Folding Machine: independent high-speed feeding bell can be easily adjusted;
c. Box Folding Machine: independent vibrating motor can improve feeding greatly;
d. Box Folding Machine: feeding blade and baffle on the left and right can be adjusted upper and down to shorten adjusting and carton changing time.
2.Folding
a. Box Folding Machine: long-distant folding ensure the first line 180°, the third 135° to easily open the cartons fully filled;
b. Box Folding Machine: all parts can be easily replaced, which is convenient to install other components for other kinds of cartons.
3.Bottom folding
a. Box Folding Machine: The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
b. Box Folding Machine: Bottom-folding speed is 50-400 pcs per min, stable and reliable
4.Folding
a. Box Folding Machine: Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
5.Full pressing
a.Box Folding Machine: Pressure can be adjusted conveniently, reliable, ensure good quality of gluing
b. Box Folding Machine: Automatic Pre-Folding and Bottom Lock Folder Gluer Machine(QH-SLJ)es to match with boxes regulating, easy to count and pack
6.Transmission
Box Folding Machine: Structure is specially designed, pressure adjustment is easy and reliable to ensure the quality of gluing;
7.Collecting
Box Folding Machine: Press is equipped with independent speeding device, the operator can set the paper collecting speed according to the packing speed.
8.Spraying System
Box Folding Machine: Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box, gluing quickly and accurately sizing.
9.Servo motor
Box Folding Machine: Corrugated Paper Box Die Cut Machine Reliable (QH-SLJ): The servo control system, assistant with PLC and signal collection operation system, to fold each product (4, 6 corners box) correctly, ensure perfect quality.
We provide not only the equipment but also the solve ways.
