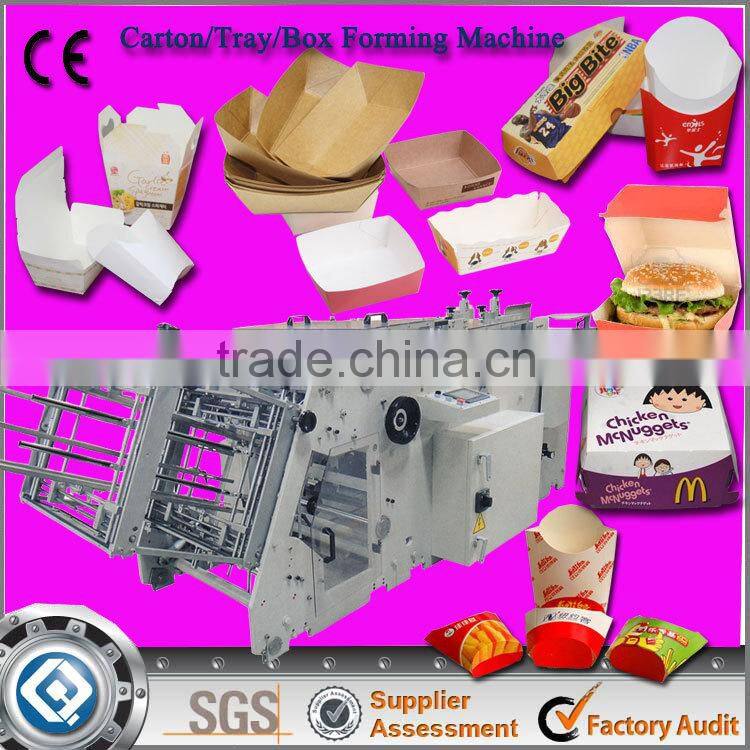

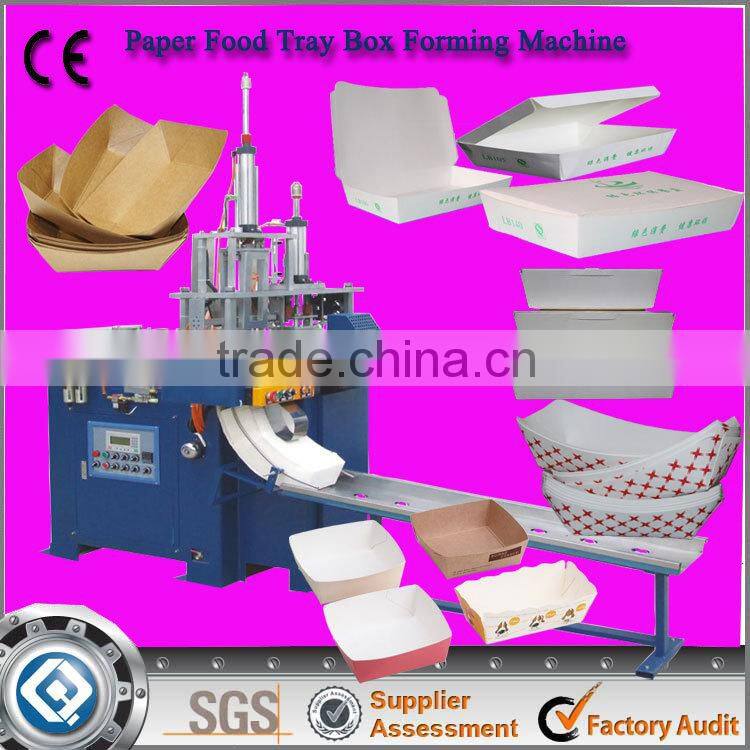

QH-9905 Paper food box tray containers making & forming machine

QH-9905 (paper food/burger/chips box/container/tray forming/making machine)

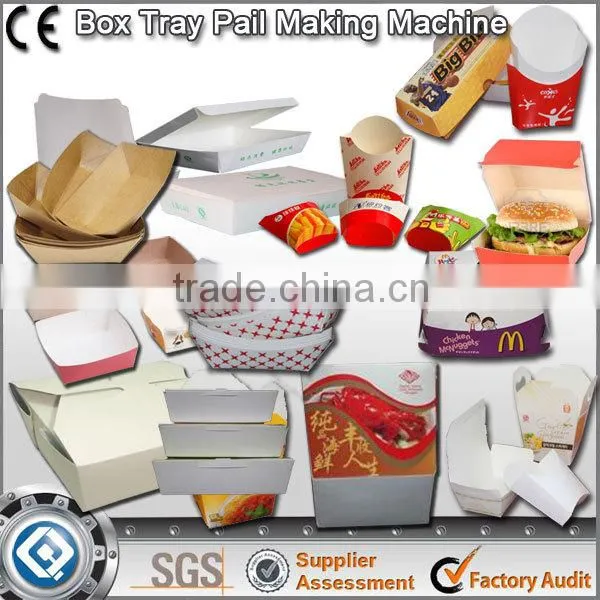

Making paper food box,food container, cardboard box, tray, burger box, hamber box, chips tray, boat tray, food packing box,

Paper food containers box tray making machine Description:

Carton Erecting Machine (paper box forming machine) is an automatic machine, specialize in making food carton, box, container which are made from cardboard, paper, paperboard, corrugated paper etc. The food box(carton, container, dish, tray) is widely used as burger box, hot-dog box(tray), one block box, food pail box(Chinese food box, take-away box), fries box(chips box, chips tray), lunch box, meal box, etc.

Paper burger box  tray forming machine Advantage:

• Compact structure, Strong frame, keep the machine reliable and durable with low noise.
• Hard Plastic-glass cover, Safe and visible for user.
• Easy exchange molds to make different products, charging and adjusting time is very short.
• PLC program control the whole line, available to make complicated boxes.
• Automatic collection, stock, and count.
• Human being designed control button and panel, more easy and safe runs by user.

Paper food box tray making machine Technical Specification

• Model: QH-9905 Carton Erecting Machine
• Speed: 80~ 180 box/minute
• Welding Method: Water-Glue System Welding;
• (Food grade glue, POLYVINYL-ACETATE EMULSION),
• Available Material: 200~600gsm cardboard, paperboard, paper, film coated paper, etc.
• Material Thickness: Max. 1.5mm
• Power: 3KW,
• Power Source: 380V, 220V 50/60Hz,
• Machine Size (L*W*H): 2950*1320*1500
• Weight: 2000KG;
• Air Source: Pressure: 6KG/cm2 ; Out-put: 200 L/minute ;
• Available to make machines and molds on user order.

Paper food box tray dish forming machine Standard Output Capacity :

• One block paper box(4-corner box without cover), Max. 180pcs/min;
• Fries box (chips box, chips tray) Max. 150pcs/min
• Burger box (hot-dog box) Max. 120pcs/min
• Food pail (DEEP food box) Max. 100pcs/min

Remark: The box size, box shape, material and its quality will affect the machine output. While the material is TWO-side FILM coated paper, or aluminum foil paper, should ADD hot melt glue system(Equipped On USER ORDER) to weld the box,.

Cardboard box forming machine Whole machine include:

• Electric control box;
• Feeding device;
• Transfer System:
• Water glue device ;
• Forming(welding) device;
• Collection device ;
• One set of mold;

ORDERED BY USER:

• Hot melt glue system;
• Air compressor and dryer .

Main Components In Paper box forming Machine:

• PLC: Siemens;
• Touch-screen: Siemens;
• Transducer(AC Driver): Siemens;
• Main Motor: Siemens;
• Reduce gear motor: JSCC;
• Low-voltage electric element: Schneider;
• KEY-bearing: SKF;
• Guide Rail(axis): INA;
• Key mechanic components: Imported;

Disposable Take Out Paper Containers Boxes Trays Making Machines

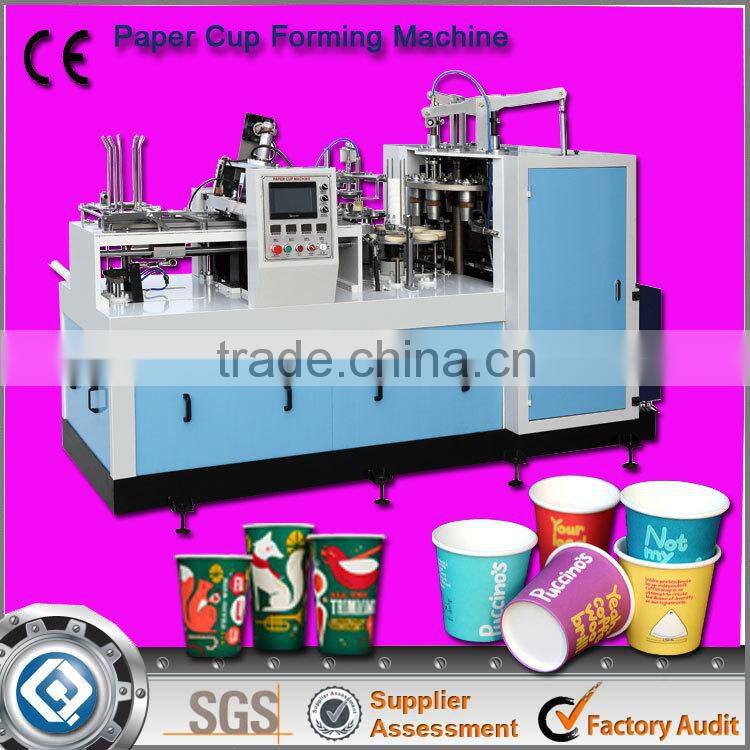

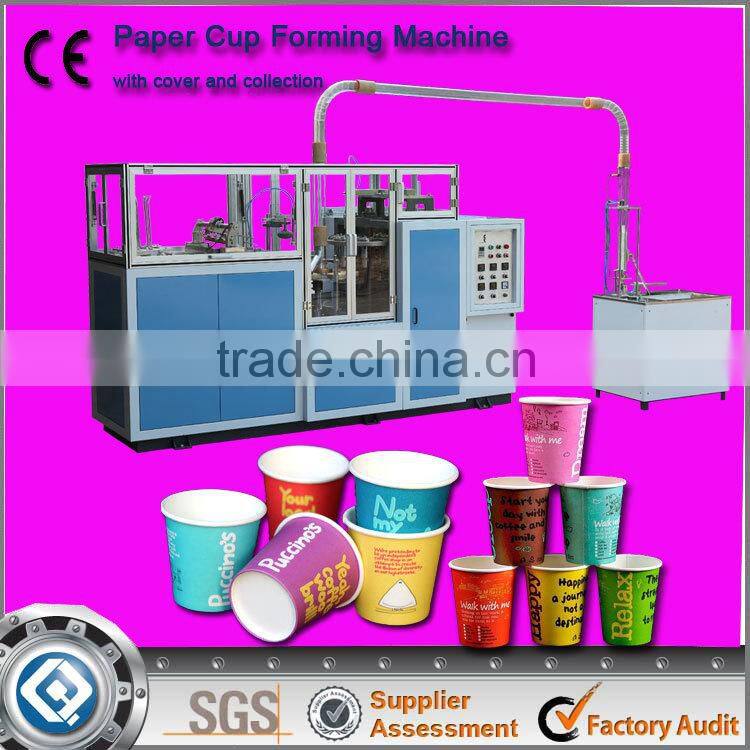

Paper Cups Making & Forming Machine

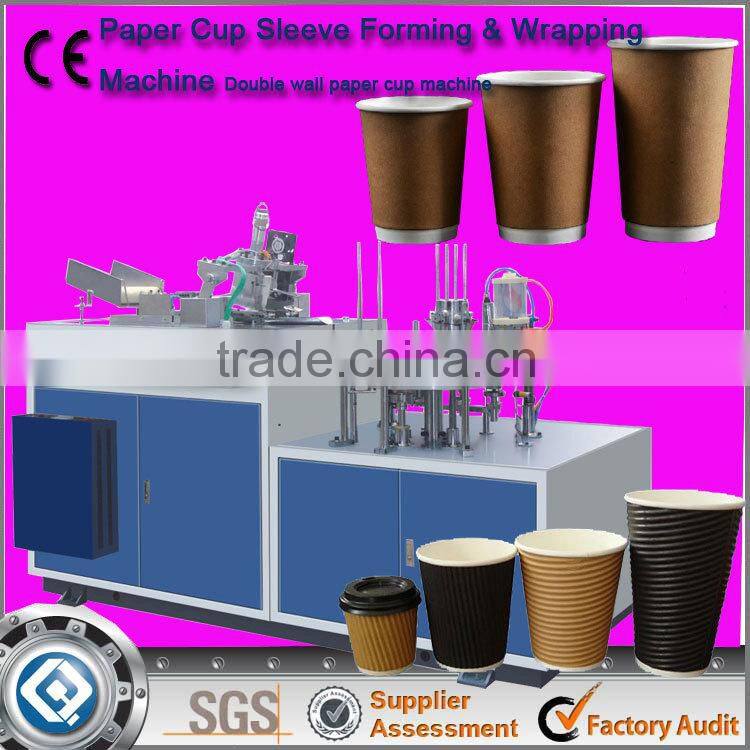

Double Wall Paper Cup Making Machine Ripple Paper Cup Machine

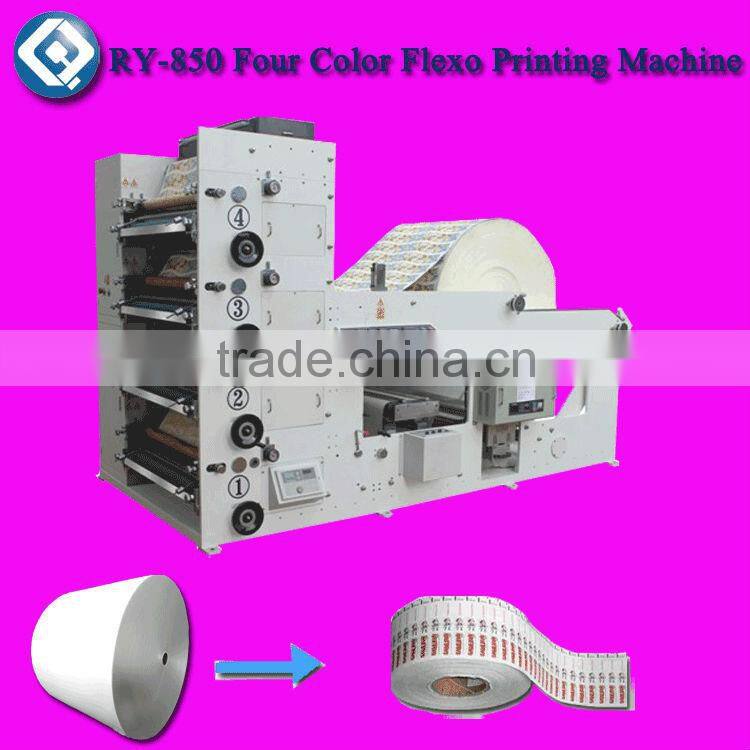

Roll Paper Flexo Print Machine

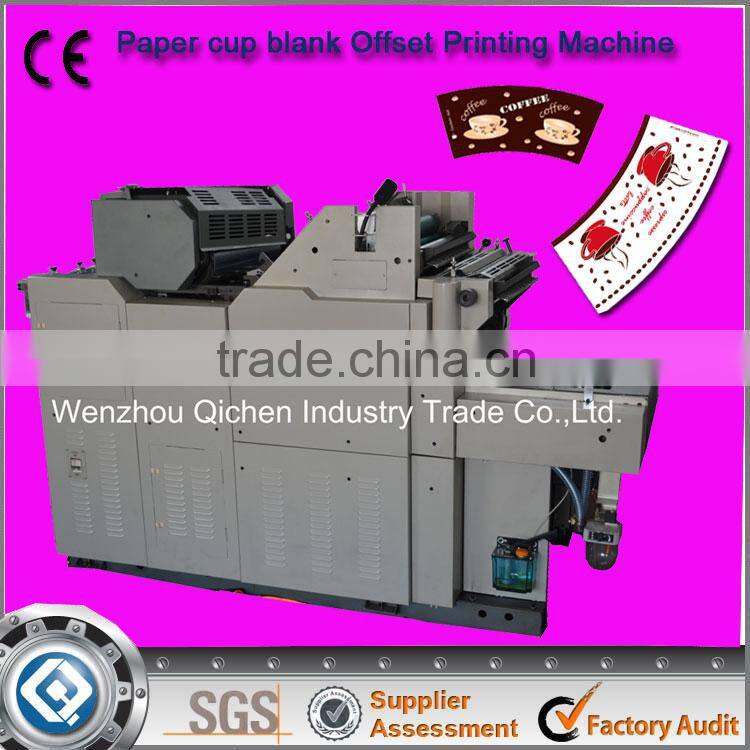

Paper Cup Blank OFfset Print Maching

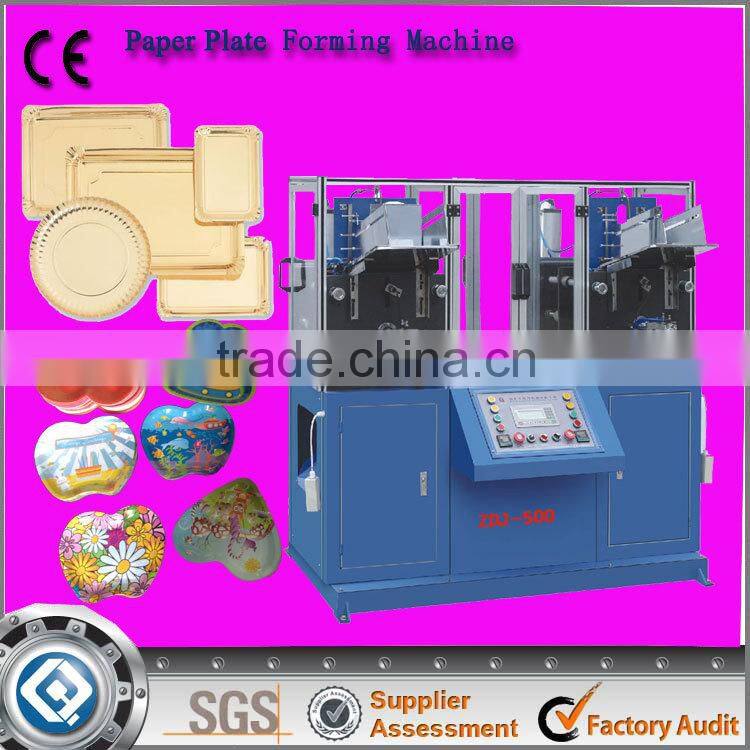

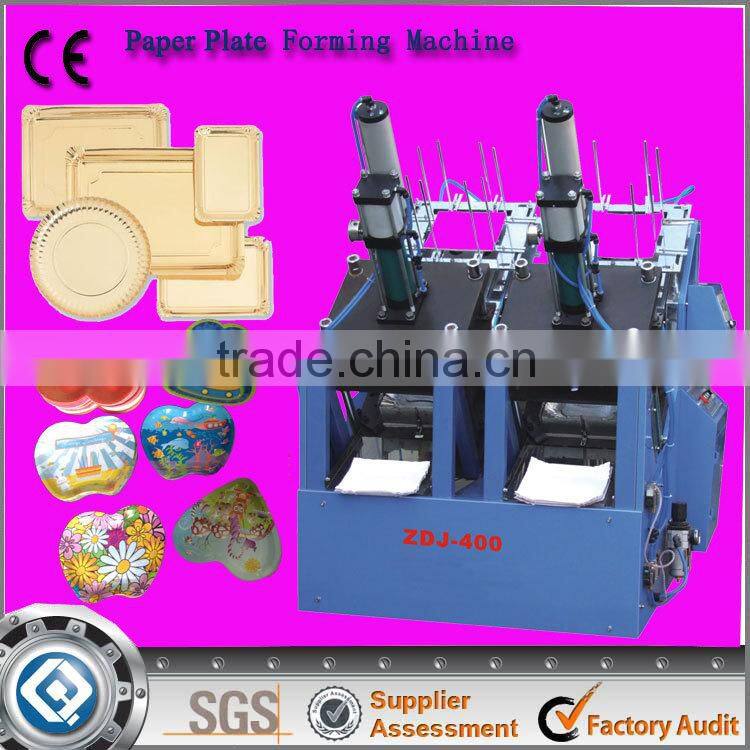

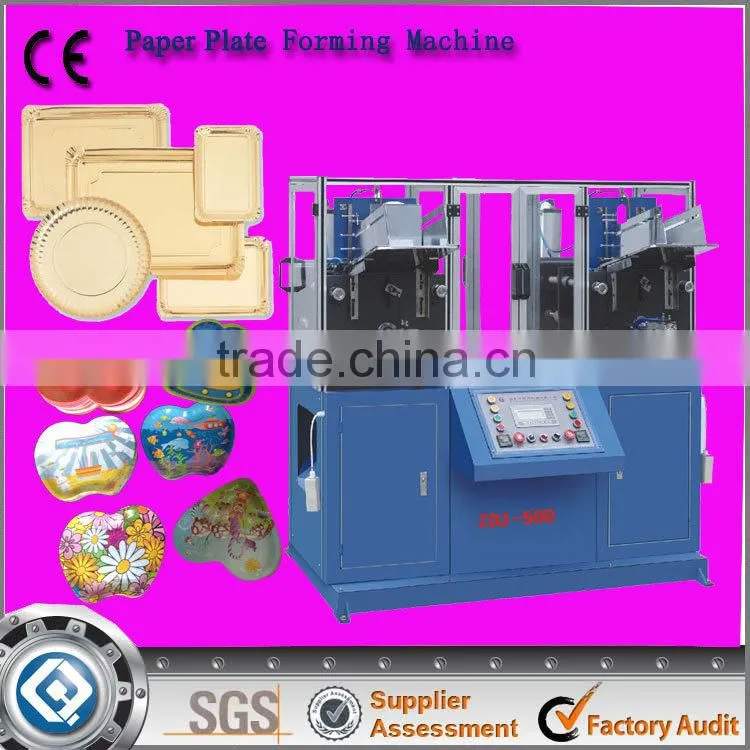

Paper Plate Dish Forming & Press Machines

Paper Cup Making LInes

Our Service:

We offer not only the products, but also the solve ways.

For all of our machines, we provide:

lOperation Manual, Operation or repair Video,

l1year guarantee, 1Year spare parts packing together with the machine,

l24-hours Email technical support, we will do our best to help the clients solve any question or problems.

lAvailable to send our engineer to clients factory, to install the machines, train the workers, repair the machines.

FAQ:

1, Are you trading company or manufacturer?

We are manufacturer, and also provide the business solution to all the friends.

2, Do you have quality certificate?

Yes we have CE, ISO etc.

3,What's the delivery time?

Around 20~30days, however, based on order.

4, Can you help us to buy other goods?

Sure of that, it is our honor to work for you, and control the goods quality.

About US:

Wenzhou Qichen Industry & Trade Co., Ltd is a professional manufacturer of the machines: Disposable paper cup(bowl, bucket, plate, dish, box, cake tray, muffin cup) machines, Printing machine, Die cutting machine and carton/box erecting/forming machine.
