t960e small reflow oven,
IR and hot air oven,
hot reflow,
mini wave soldering machine
smd /led soldering machine,
taian puhui

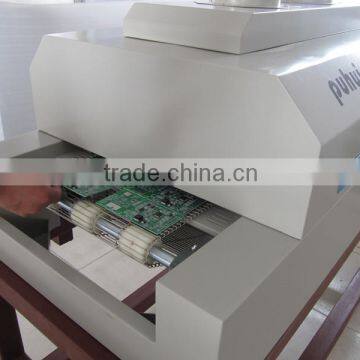

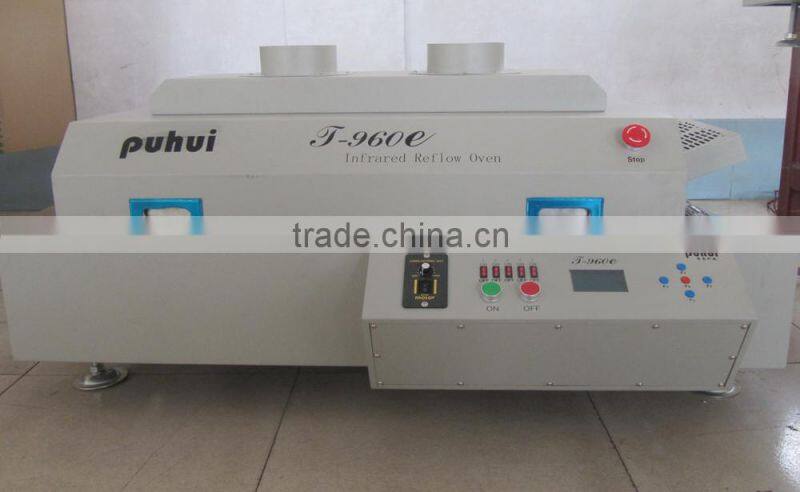

small reflow oven T-960e
Infrared and hot air heating
uninterrupted soldering LED,SMT,BGA components.
Crawler-type and five temperature zones heating systems
each zone uses independent PID controlling and up-down heating type
Eight temperature waves
Programmable technology
Thermocouple temperature measurement, compensation circuit
PID intelligent temperature control technology
Imported frequency conversion motor
1:150 imported turbine speed reducer
speed adjustable range 0-1600mm/min.
Independent wheel structure and special stainless steel strut
speed precision can reach ±10mm/min.
Easy operate, LCD display, no need connect with the PC
Good build quality, easy transportation or storage.
Technical parameters
heating zone quantity - upper3/down2
length of the heating zone - 960mm
heating type - Infrared and hot air
cooling zone quantity - 1
Max width of PCB board - 300mm
operation direction - From left to right

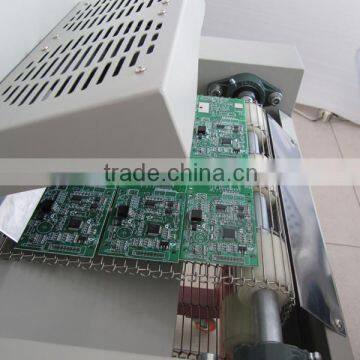

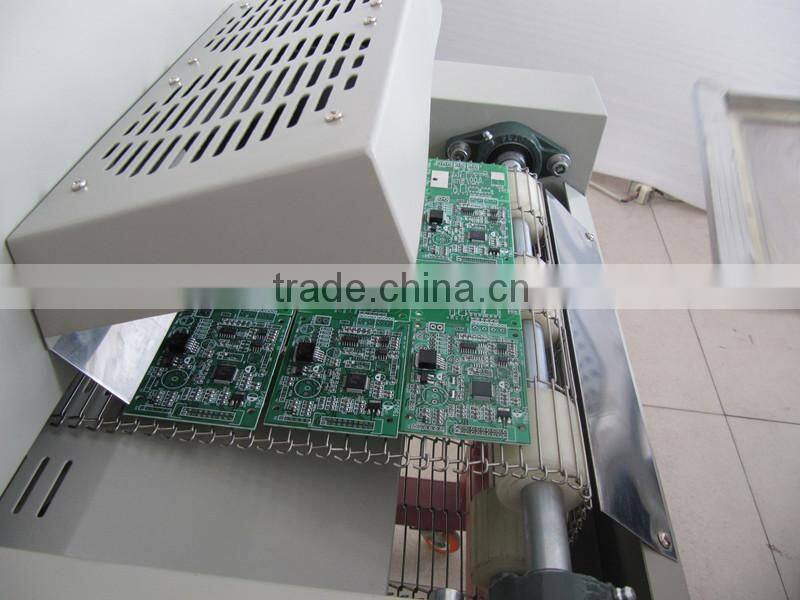

Transmission type - Net transmission+chain transmission
speed of conveyer belt - 0-1600mm/min
voltage - 380V/220V
Power - 4500w
Heating up time - Around 15mins
Temperature control range - Room temperature~350
Temperature control mode - PID
Temperature control accuracy - ±1
PCB temperature distribution balance - ±2
Overall dimensions - 1200×630×470
Machine weight - 88KGS
Easy Operation
Connect with 220v/380v
Turn on the machine
Press F2 to select suitable wave according to your solder paste
(or set wave by hand, we will support you)
Turn on 5 zone switches, start to heat up
Turn on the transmission belt speed switch and adjust speed
Put the PCB on the belt from left when the 5 zones temperatures meet the wave temperatures
T960/T960e/T960W How to select wave
Wave 1/2: less lead paste, like 85Sn/15Pb 70Sn/30Pb
Wave 3/4: more lead paste, like 63Sn/37Pb 60Sn/40Pb.
Wave 5/6: high-melting-point lead-free paste, like Sn/Ag3.5;Sn/Cu.75 Sn/Ag4.0/Cu.5 Sn95.5/Ag3.8/Cu0.7
Wave 7/8 : lead-free solder in melting point, like Sn/Ag2.5/Cu.8/Sb.5;Sn/Bi3.0/Ag3.0
We are the ONLY and ORIGINAL manufacturer – Taian Puhui
Please contact us for good price and more details
Skype : kellyzhang2
Trademanager : cntech168
QQ: 2406360635
Cell: 86 18865488826
Or send inquiry to us
Hope to cooperate with you, thank you
Ms.Kelly
Overseas Marketing Manager
Warranty
Warranty – the main body maintains for one year and the spare parts maintains for three months.
Service – provide the immediate network online Q/A and the technical advisory work service
