Specifications
T960 led reflow oven,smt reflow soldering machine- 5 zones
- for LED,SMT,SMD,PCB soldering
- factory price
- CE

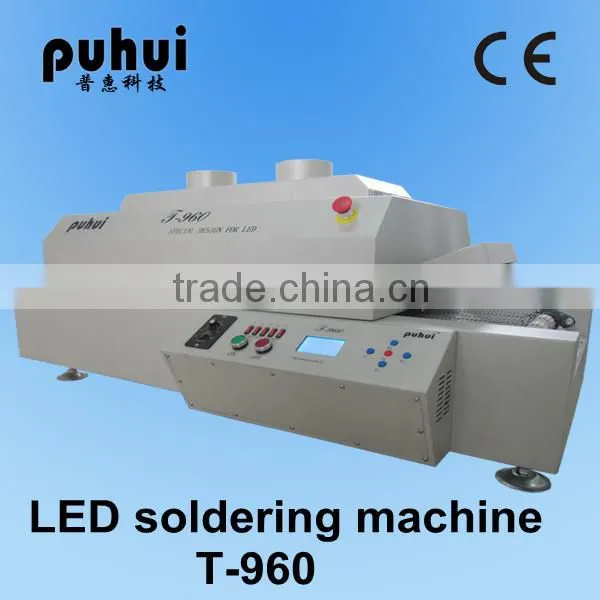

Puhui T960 IR hot air reflow oven, smt reflow oven machine
Technical parameters
The heating zone quantity - upper3/down2
The length of the heating zone - 960mm
The heating type - Infrared and hot air
The cooling zone quantity - 1
Maximum width of PCB board - 300mm
The operation direction - From left to right
Transmission type - Net transmission+chain transmission
The speed of conveyer belt - 0-1600mm/min
The voltage - 380V/220V
Power - 4500w
Heating up time - Around 15mins
Temperature control range - Room temperature~300
Temperature control mode - PID
Temperature control accuracy - ±1
PCB temperature distribution balance - ±2
Overall dimensions - 1450×630×470
Machine weight - 90KGS
Features

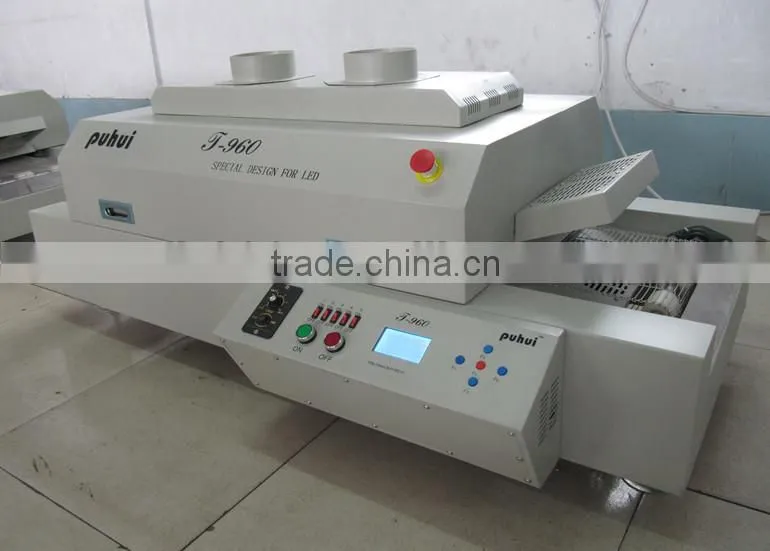

reflow oven T-960
Infrared and hot air heating technology,suit for uninterrupted soldering the LED and BGA components.
Crawler-type and five temperature zones heating systems,
each temperature zone uses independent PID controlling and up-down heating type
Eight temperature waves
Programmable technology, preset the temperature wave memory storage function
Thermocouple temperature measurement, compensation circuit
PID intelligent temperature control technology
Imported frequency conversion motor, 1:150 imported turbine speed reducer,
speed adjustable range 0-1600mm/min.
Independent wheel structure and special stainless steel strut, speed precision can reach ±10mm/min.
Independent cooling zone
Easy operate, perfect LCD display, no need to connect with the PC
Good build quality, big working area, easy transportation or storage.
Warranty
Warranty – the main body maintains for one year and the spare parts maintains for three months.
Service – provide the immediate network online Q/A and the technical advisory work service
