Specifications
T960 led soldering machine1. automatic soldering
2. 5 temperature zones
3. 8 temperature waves
4. original manufacturer

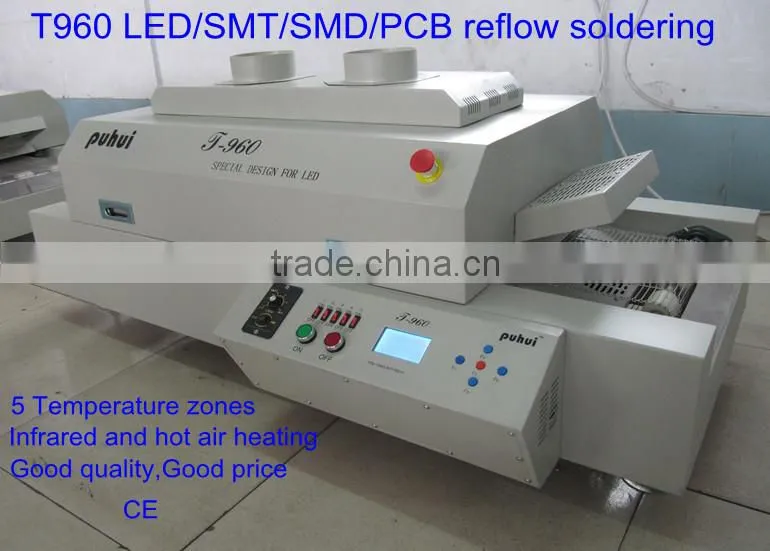

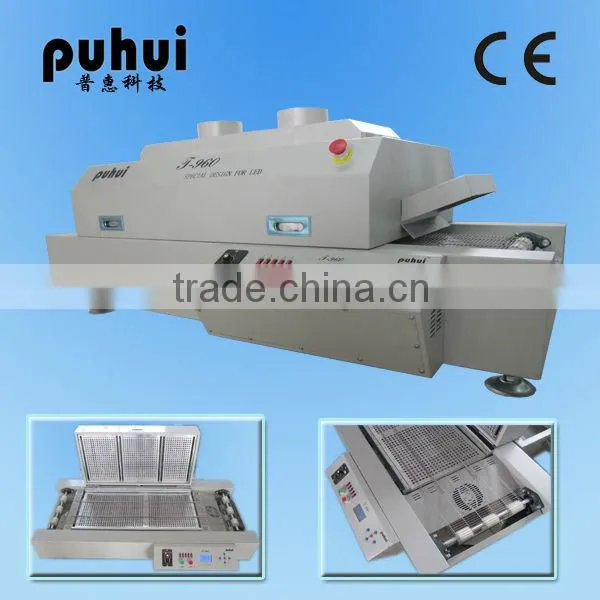

T960 led soldering machine, infrared reflow oven, bga chips soldering machine, taian, puhui
100% original manufacturer, factory price supply, long life time after service!
Features
1. Infrared and hot air heating technology,suit for uninterrupted soldering the LED and BGA components.
2. Crawler type and five temperature zones heating systems,
and each temperature zone uses independent PID controlling and up-down heating type,
3. Eight temperature waves
4. Programmable technology, preset the temperature wave memory storage function
5. Thermocouple temperature measurement, compensation circuit
6. PID intelligent temperature control technology
7. Imported frequency conversion motor, 1:150 imported turbine speed reducer, speed adjustable range 0-1600mm/min.
8. Independent wheel structure and special stainless steel strut, speed precision can reach ±10mm/min.
9. Independent cooling zone
10. Easy operate, perfect LCD display, no need to connect with the PC
11. Good build quality, big working area, easy transportation or storage.
Specifications
Model |
T-960 |
The heating zone quantity |
upper3/down2 |
The length of the heating zone |
960mm |
The heating type |
Infrared and hot air |
The cooling zone quantity |
1 |
Maximum width of PCB board |
300MM |
The operation direction |
From left to right |
Transmission type |
Net transmission+chain transmission |
The speed of conveyer belt |
0-1600mm/min |
The power supply |
380V/220V |
Power |
4.5KW |
Heating up time |
Around 15mins |
Temperature control range |
Room temperature~300°C |
Temperature control mode |
PID |
Temperature control accuracy |
±1°C |
PCB temperature distribution balance |
±2°C |
Overall dimensions |
1450×630×470 |
Machine weight |
90KGS |
Package
