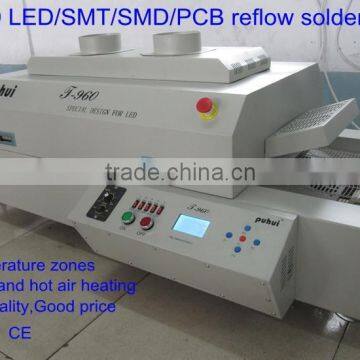

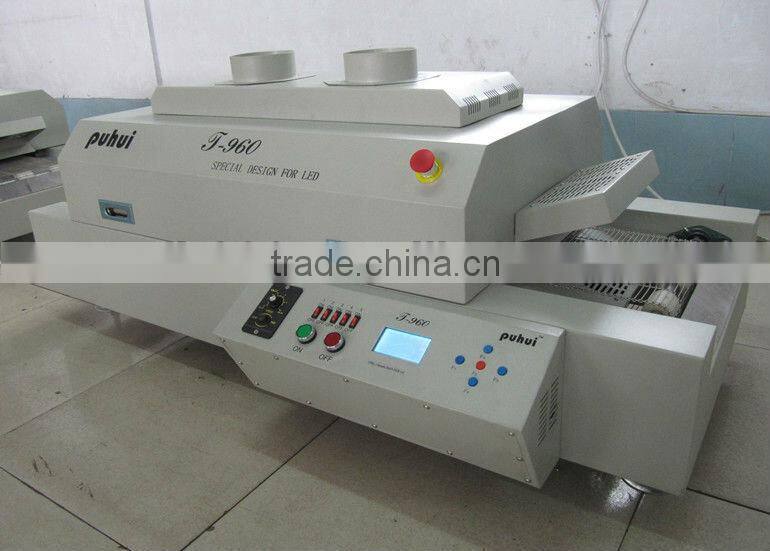

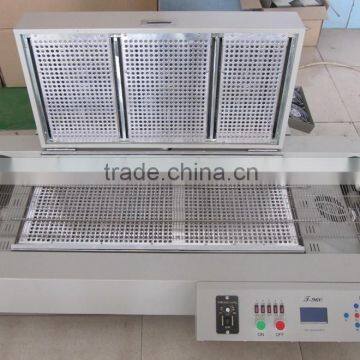

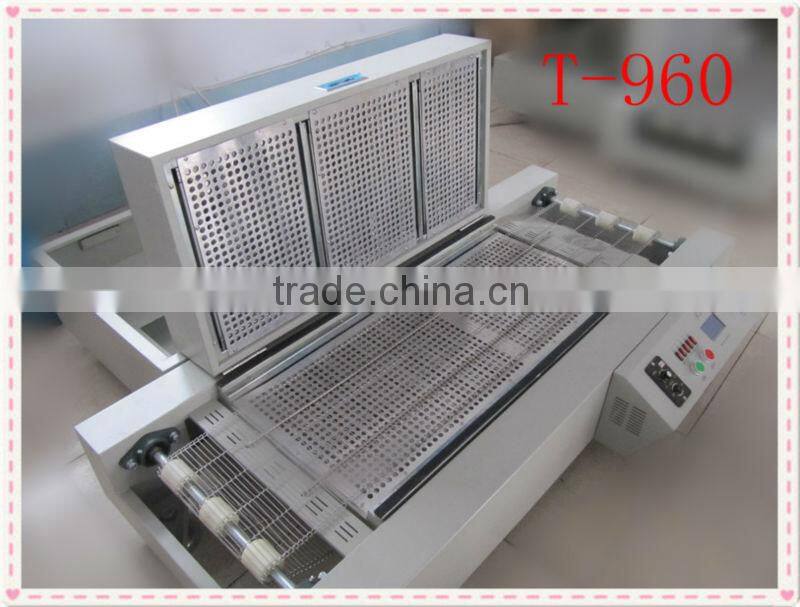

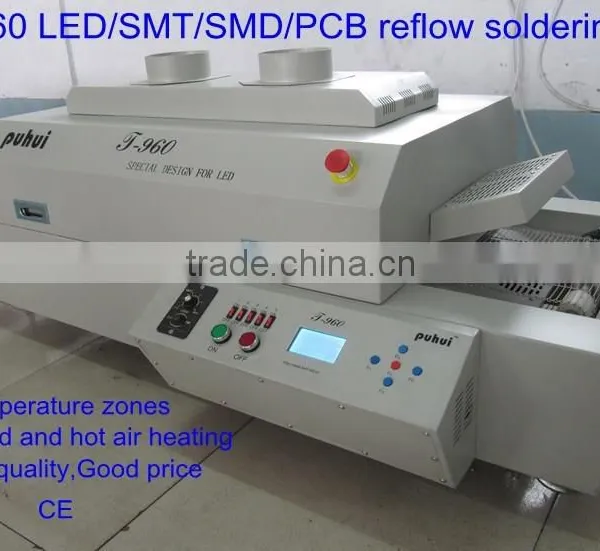

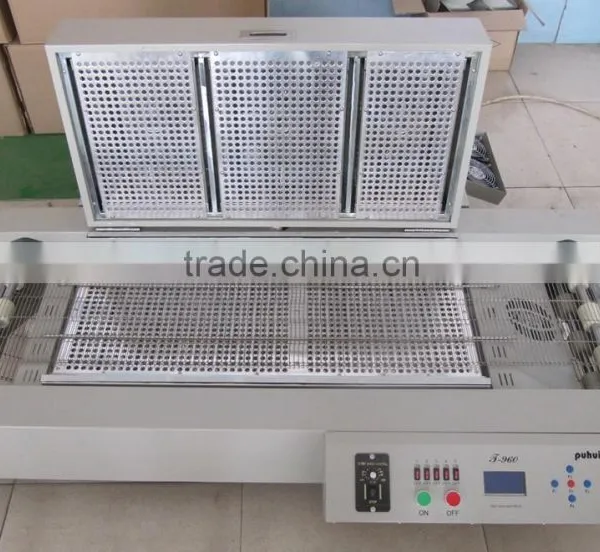

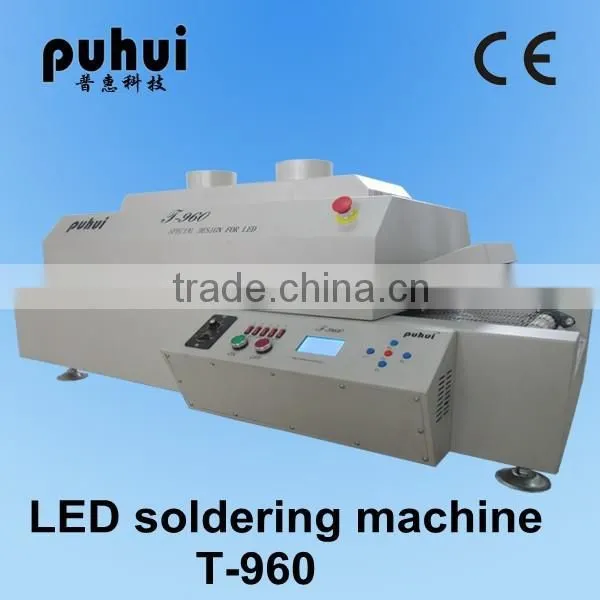

puhui t960 benchtop reflow oven, led soldering machine
Infrared and hot air heating
5 temperature zones
8 waves for choice
suit to solder SMT,SMD,LED,BGA,PCB uninterruptedly
Model |
T-960 |
The heating zone quantity |
upper3/down2 |
The length of the heating zone |
960mm |
The heating type |
Infrared and hot air |
The cooling zone quantity |
1 |
Maximum width of PCB board |
300MM |
The operation direction |
From left to right |
Transmission type |
Net transmission+chain transmission |
The speed of conveyer belt |
0-1600mm/min |
The power supply |
380V/220V |
Power |
4.5KW |
Heating up time |
Around 15mins |
Temperature control range |
Room temperature~300°C |
Temperature control mode |
PID |
Temperature control accuracy |
±1°C |
PCB temperature distribution balance |
±2°C |
Overall dimensions |
150*88*66cm |
Machine weight |
175KGS |
LED reflow oven T-960 features:
1. Infrared and hot air heating technology,suit for uninterrupted soldering the LED and BGA components.
2. Crawler-type and five temperature zones heating systems,
and each temperature zone uses independent PID controlling and up-down heating type,
3. Eight temperature waves
4. Programmable technology, preset the temperature wave memory storage function
5. Thermocouple temperature measurement, compensation circuit
6. PID intelligent temperature control technology
7. Imported frequency conversion motor, 1:150 imported turbine speed reducer, speed adjustable range 0-1600mm/min.
8. Independent wheel structure and special stainless steel strut, speed precision can reach ±10mm/min.
9. Independent cooling zone
10. Easy operate, perfect LCD display, no need to connect with the PC
11. Good build quality, big working area, easy transportation or storage.
Easy Operation
Connect with 220v/380v
Turn on the machine
Press F2 to select suitable wave according to your solder paste
(or set wave by hand, we will support you)
Turn on 5 zone switches, start to heat up
Turn on the transmission belt speed switch and adjust speed

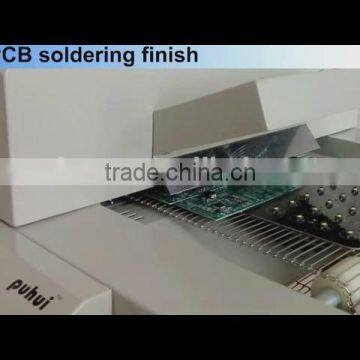

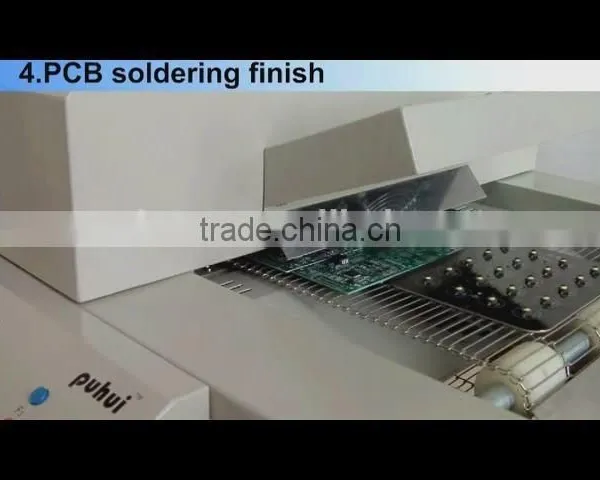

Put the PCB on the belt from left when the 5 zones temperatures meet the wave temperatures
Warranty
Warranty – the main body maintains for one year and the spare parts maintains for three months.
Service – provide the immediate network online Q/A and the technical advisory work service
T960/T960e/T960W How to select wave
Wave 1/2: less lead paste, like 85Sn/15Pb 70Sn/30Pb
Wave 3/4: more lead paste, like 63Sn/37Pb 60Sn/40Pb.
Wave 5/6: high-melting-point lead-free paste, like Sn/Ag3.5;Sn/Cu.75 Sn/Ag4.0/Cu.5 Sn95.5/Ag3.8/Cu0.7
Wave 7/8 : lead-free solder in melting point, like Sn/Ag2.5/Cu.8/Sb.5;Sn/Bi3.0/Ag3.0
>
We are the ONLY and ORIGINAL manufacturer – Taian Puhui
Please contact us for good price and more details
Skype : kellyzhang2
Trademanager : cntech168
QQ: 2406360635
Cell: 86 18865488826
Or send inquiry to us
Hope to cooperate with you, thank you
Ms.Kelly
Overseas Marketing Manager
