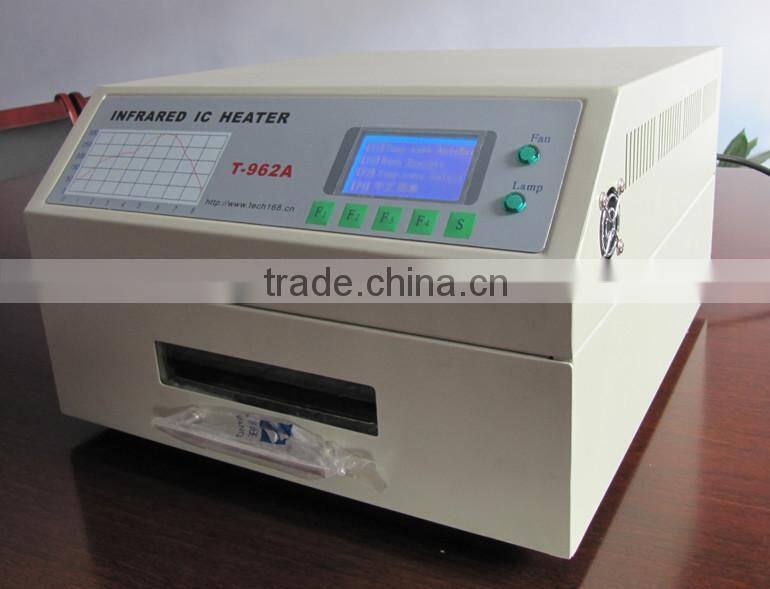

Infrared ic heater t-962a, infrared hot air soldering station
We are original manufacturer
supply 100% original product and good price
for PCB,SMT,SMD,LED soldering
8 wave for lead or leadfree solder paste

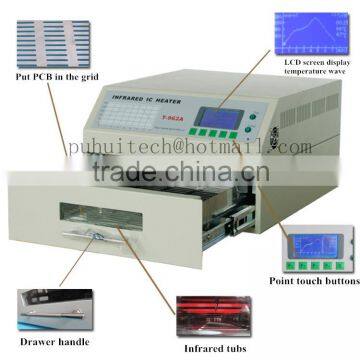

Micro-processor controlled reflow oven, suit for various soldering of SMD/BGA automatically,
easy operate; Fast infrared and hot air heating, make temperature more accurate and evenness.

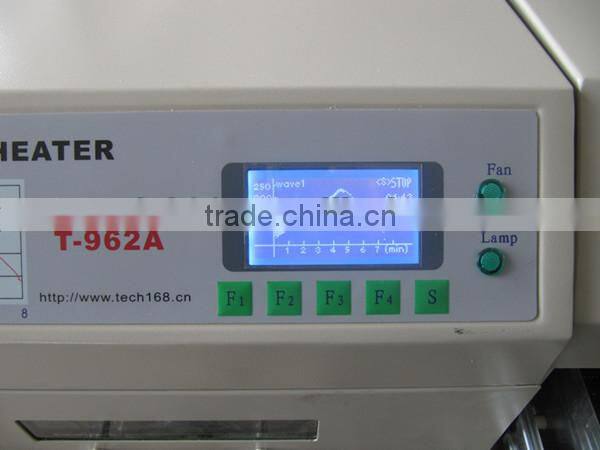

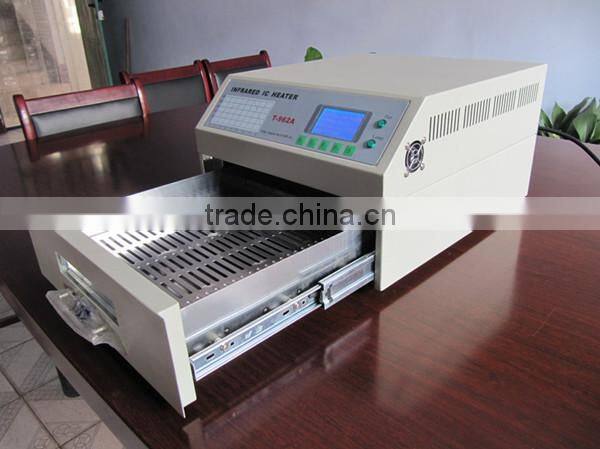

Fuzzy temperature control technology, visualization drawer, can see the whole soldering process
very clearly. It can achieve soldering of single and double-sides PCB board.
Technical parameters T962A
Soldering area: 300*320mm
Overall dimensions: 43*37*26cm
Packing dimensions: 51*45*33cm
Power: 1500W
Cycle time: 1-8 min
Voltage: AC110V-AC220V /50-60HZ
Net weight: 12.5Kgs
Gross weight: 15Kgs
FEATURES
Large infrared soldering area: 300*320mm (T-962A)
Eight soldering waves
Special heat up and temperature equalization
Big power of energy efficient Infrared heating and air circulation to re-flow solder.
Ergonomic design, practical and easily operated
Large number of available functions
Solder most single or double-sides PCB boards, for example CHIP, SOP, PLCC, QFP, BGA etc.
It is the ideal rework solution from single runs to on-demand small batch production.
Warranty
Warranty – the main body maintains for one year and the spare parts maintains for three months.
Service – provide the immediate network online Q/A and the technical advisory work service
