Home > Products > Infrared Reflow Oven > Puhui T962 small reflow oven/reflow oven t961

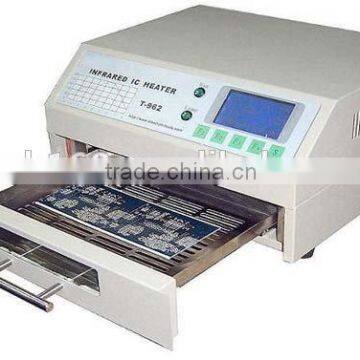

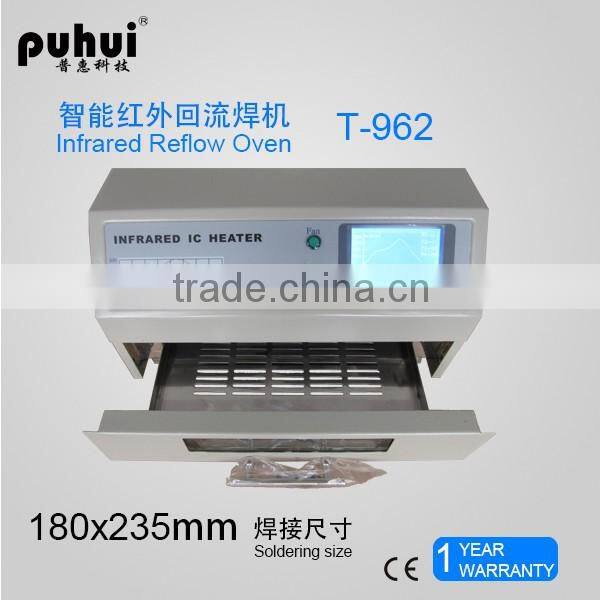

Puhui T962 small reflow oven/reflow oven t961
- 600 Piece / Pieces per Month
- qingdao/shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Lead free reflow oven machine for led bulb product with CE approve F12
- Hot sale !!high capacity Lead free reflow oven machine for led bulb product with CE approve F12
- Lead free reflow oven machine for led bulb product with CE approve F12
- hot sale!!high quality lead free reflow oven machine for led bulb product with CE approve jaguar F8
- Lead free reflow oven machine for led bulb product with CE approve F12
- Lead free reflow oven machine for led bulb product with CE approve
Product Details
Place of Origin: | Shandong, China | Brand Name: | PUHUI | Model Number: | T962 |
Usage: | reflow oven | Voltage: | AC110V220V | Weight: | 7kg |
Dimensions: | 37*42*24cm | Rated Duty Cycle: | 800w | Rated Capacity: | 800w |
Current: | 7A | Certification: | CE | After-sales Service Provided: | Overseas third-party support available |
Product Description
Puhui T962 small reflow oven/reflow oven t961
We are original manufacturer
supply 100% original product and good price
for PCB,SMT,SMD,LED soldering
8 wave for lead or leadfree solder paste
Feature
1.Micro-processor controlled reflow oven, suit for various soldering of SMD/BGA automatically,
easy operate;

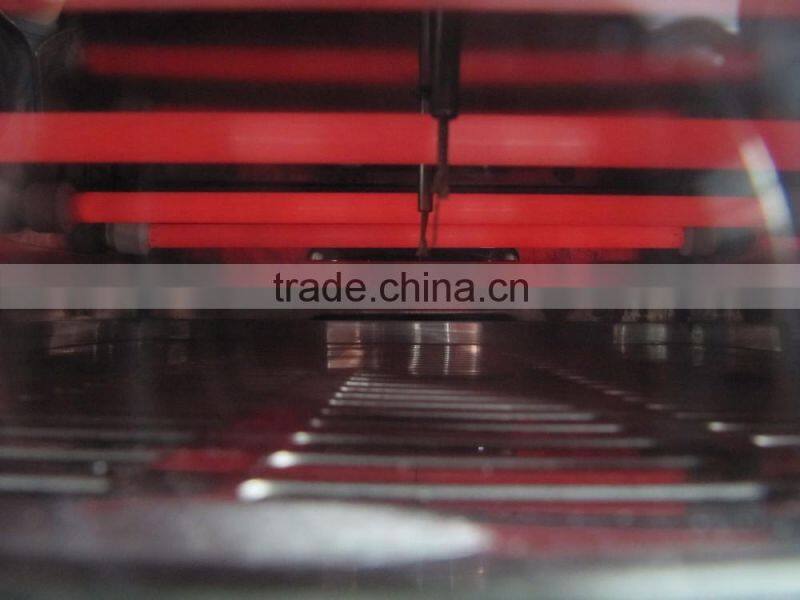

2.Fast infrared and hot air heating, make temperature more accurate and evenness.
3.Fuzzy temperature control technology, visualization drawer, can see the whole soldering process
very clearly.
4.It can achieve soldering of single and double-sides PCB board.
Technical parameters of puhui T962
Machine | INFRARED IC HEATER | Model | T-962 | ||
Power Voltage | AC220V/110V 50-60Hz | ||||
Mode Of Heating | infrared emission and circulation of the hot air flow | ||||
Rated power | 800W | ||||
Cycle Time | 1~8 min | ||||
Mode Of Controling | 8 Intelligent temperature waves heating | ||||
Temperature Range | 0-280℃ | ||||
Soldering PCB Area | 180X235mm | ||||
Dimensions | 310X290X170mm | ||||
Package size | 375X240X375mm | ||||
Weight | 7Kgs |
Solder most single or double-sides PCB boards, for example CHIP, SOP, PLCC, QFP, BGA etc.
It is the ideal rework solution from single runs to on-demand small batch production.
we are the manufacturer of reflow ovens, having ten years' experience and excellent after-sale service.
Warranty
Warranty – the main body maintains of reflow ovens for one year and the spare parts maintains for three months.
Service – provide the immediate network online Q/A and the technical advisory work service
