Cotton Spinning Machinery-ring Spinning Machine
- Qingdao
You May Like
Product Details
| Condition | New | Application | Spinning Production Line | |
| Type | Other, Ring spinning frame | Production Capacity | 99.9% | |
| Place of Origin | Shandong, China | Brand Name | TONGDA | |
| Model Number | FA506 | Spinning Method | Ring Spinning | |
| Automatic | Yes | Dimension(L*W*H) | 20300 x700 x 2300mm | |
| Weight | 5 ton | Power(W) | 25KW | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

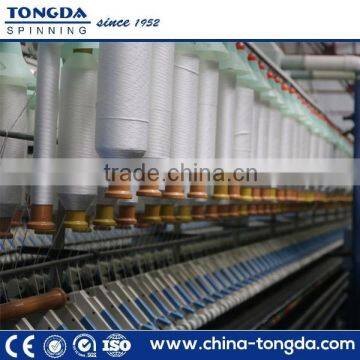

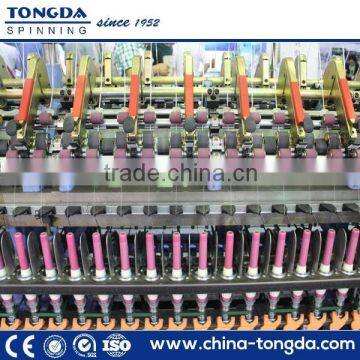

Cotton spinning machinery-ring spinning machine
Tongda Ring Spinning frame series are made from the leading design proposal,advanced
manufacturing methods and perfect special parts and components. They ensure high quality
yarn spring. The machine features convenient operation and easy to management due to its high
automation. It is suitable for spinning of cotton and synthetic fibres or their blends to produce
weaving or knitting yarns.
The machine is suitable to the processing of cotton,synthetic fibers or their blends.
FA506 Technical Data and Specifications:
Spindle gauge | 70mm |
Lifting | 205 180 155 mm |
Ring Diameter | Φ45,Φ42,Φ38mm |
Number of Spindle | 384,396,408,420,432,444,456,468,480,492,504,516 |
Yarn count | 97.2---4.9tex (6--12Ne) |
Twist | 300--1600(T/m) |
Draft Ratio | 10-50 |
Spindle speed | 15000-22000 rpm |
Spindle drive | Single tension pulley,Z or S twist optional |
Spindle wharve diameter | Φ22,Φ24,Φ20.5mm |
Creel | One tier hanger, Four or six rows optional |
Main Motor(380v50Hz) | 15/7KW 17/9KW 18.5/11KW 22/11KW (380v) |
Suction Motor (380v 59 Hz) | 1.5KW(for No.of spindles below4444) 2.2KW (for No.of spindles above 456) |
Lift Motor | 370W |
Distance between Spindle of left and right side | 700 mm |
Headstock dimensions Endstock Dimensions | Width: 640mm, length:680mm, height:1700mm Width:640mm, length:1300mm,height: 1768mm |
Total height of the machine | 2300mm |
Total length of the machine | L=2380+(N/2-1)70mm L:length N:where means the number of spindles |
A. Packing: The Machine Packed in Wooden Cases or Directly to Container
B.Delivery Details:Within 50days after you Receipt of first T/T Payment.
Why Choose Our Company?
A: History:Tongda Textile machinery Group was establish in 1952.Now have more than 60 years old history.
B: Main Products:Tongda Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame,roving frame,weaving machine(water Jet loom/Air jet loom/rapier Loom),warping machine, quilting machine and nonwoven machine.
C:Product /Quality Guarantee: All the Machine have 1 year Quality Guarantee.
D:After Sale Serivice: We are work online 24 hours. If you have any questions about our machine you can contact us.
E: Reputation:
(1) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that
we can better understand customer's needs and offer a reasonable price.
(2) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation.
Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(3) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(4) Q: How about the quality?
A:The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(5) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
Welcome to inquiry ~~~
