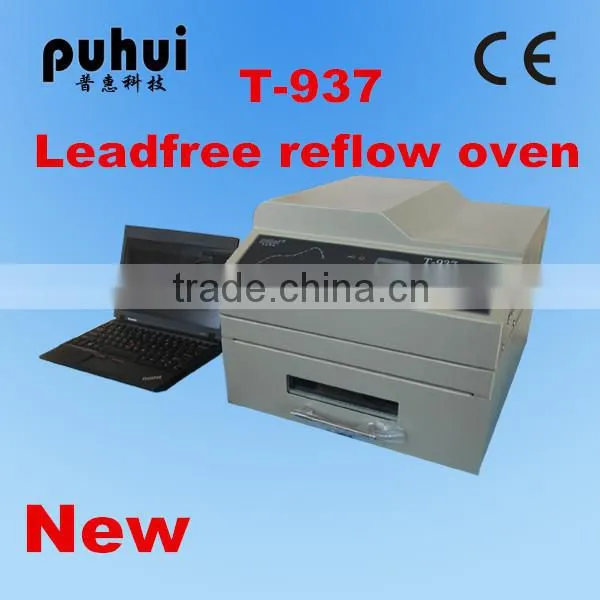

New leadfree reflow oven T-937,
taian Puhui, SMT reflow oven,
IR and hot air oven,
desktop reflow oven
Soldering area |
306mmX322mm |
Dimension |
404mmX372mmX280mm |
N. Weight |
15.5kg |
Voltage/Frequency |
AC220~230V/50~60Hz |
Power rating |
2300W |
Cycle time |
2~16 min |
Temp rage |
Room temp~350℃ |
Operation
1). Enter the software interface
Press F1, will come to the independent operation interface
2). Select the wave
Under the independent operation interface, press F2 to select wave, press F1 and F3 to select the wave you need, then press “return key” to independent operation interface.
3). Run the wave
Under the independent operation interface, press F1, it will run the wave you selected.
2) Thermostatic timer function
Under the independent operation interface, press F3, start the thermostatic timer function.
Thermostatic timer function means the machine can keep thermostatic temp if you set time, once time over, the machine stop heating.
Press F3 change “set temp”/”set time”, press F1/F2 to adjust the numerical value, the time is--:-- is untimed model, means the machine is keeping thermostatic heating, not stop automatically.
3) Change language
Under the main interface, press F3 to change the language.
Features:
a. This oven solder leadfree paste very well.
- b. This oven can connect with PC, easy to input/set/transmit/adjust/save/manage wave data.
- c. Many kinds wave input style in control software, easy to set wave.
- d. The control software is with graphical display, display the wave intuitively.
- e. The control software is with wave printing function, easy to save/manage/analysis the wave data.
- f. The control software is with 299 kinds of paste data inside.
- g. Adopt stable and high-speed MCU and advanced intelligent temperature measurement technology, temperature in the oven is very stable,exact and even.
- h. Add the compensation circuit, make the oven temperature keep stable from different environment.
- i. This oven is with hot air fan inside, to make the temperature inside more even.
- j. The temperature is room temp to 350C, suit for single/double side PCB board and lead/leadfree paste soldering.
- k. Add special exhaust on the back, provide good operation environment.
- l. Friendly human-machine operation interface, perfect LCD display, very easy to operate.
- m. Good database management function.
- n. Thermostatic timer function

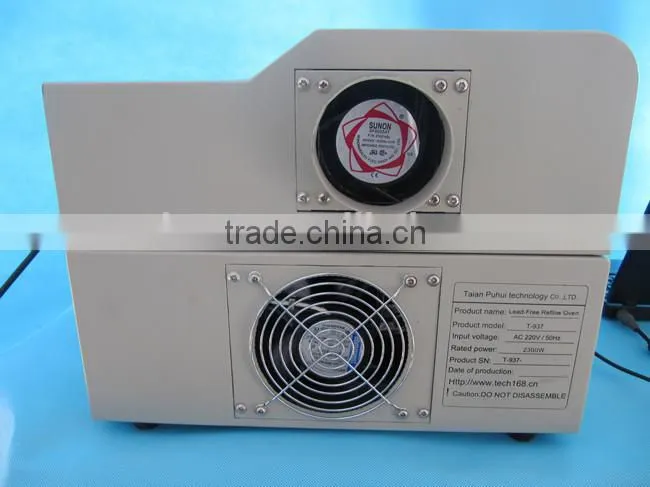

It is new model for lead and leadfree soldering, it is heating by infrared tube and hot air fan, and has air outlet on the back, and it can connect with computer through the software we designed, the user can design waves.
Please contact us if you have interest in this new leadfree reflow oven -
Skype: kellyzhang2
QQ : 2406360635
Phone: 86 18865488826
Or send inquiry to us, thank you
Best Regards
Ms.Kelly
Marketing Director
