Specifications
mobile phone bga rework station T-870A- Good quality low price
- Easily operate
- Repair the chips under 50x50mm
- CE

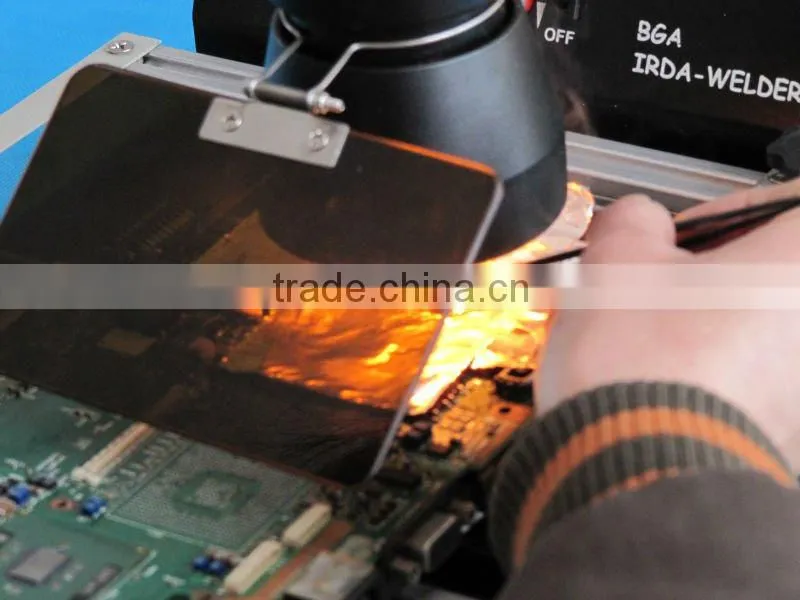

Puhui T-870A mobile phone bga rework sation , bga repair tools
1.Adopt infrared weld technology which independent exploration.
2.Use infrared heat,easy to cut through,heat proportion piercing tradition weld machine with sirocco.
3.Easily operate.Just need one day training.Can operation this machine.
4.Don't need weld tools.This machine can weld all the component of 35x35-50x50mm.
5.This machine has 800W heating system.widely to240x180mm.
6.Infrared heating don't have sirocco flow. Don't impact perimeter small component.Can suitable for all of the component,especially Micro BGA component.
7.Definitely can satisfy the computer, the notebook, the electricity swims and so on the BGA sealing off/repairs to requestSpecially especially suits to the computer north and south bridge.
Technical parameter
Working Voltage |
AC220V/50Hz AC110V/60Hz |
Output power |
1000W |
Infra-red lamp body temperature adjustable |
200°C-350°C |
Preheating dish temperature adjustable |
60°C-200°C |
Components
Description |
Quantity |
|
T-870A Chassis |
1 |
|
PCB Board holder |
1 |
|
Lamp Body and Lens(D=48mm) |
1 |
|
Temp-sensor for IR-Lamp |
1 |
|
Temp-sensor for Pre-heat dish |
1 |
|
Eye protection(IR Filter) |
1 |
|
Cell guide |
1 |
|
Focus holder |
1 |
|
Focus holder control knob |
1 |
|
Fasten nut for focus holder |
1 |
|
Steady ring |
1 |
|
Fasten nut for steady ring |
1 |
|
Power Cable (110VAC or 200VAC) |
1 |
|
5mm Fuse, 10A 250VAC (Spare) |
1 |
|
CD User Manual w/Video |
1 |
|
