IR Bga Rework Station T-8280, Preheating Plate,oven,electric Hot Plate

IR Bga Rework Station T-8280, Preheating Plate,oven,electric Hot Plate thumbnail-1
IR Bga Rework Station T-8280, Preheating Plate,oven,electric Hot Plate photo-1
US$ 1 - 199 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
PUHUI
Model Number:
T-8280
Contact Supplier Request Quote Chat Now
Taian Puhui Electric Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name PUHUI
Model Number T-8280
Voltage AC110V-220V
Rated Duty Cycle 1600W
Dimensions 39x18x49cm
Weight 8kgs
Usage preheat PCB
Certification CE

Specifications

IR bga rework station T-8280
Preheating size 280x270mm
-Good quality factory price
-Easy operate
-CE passed

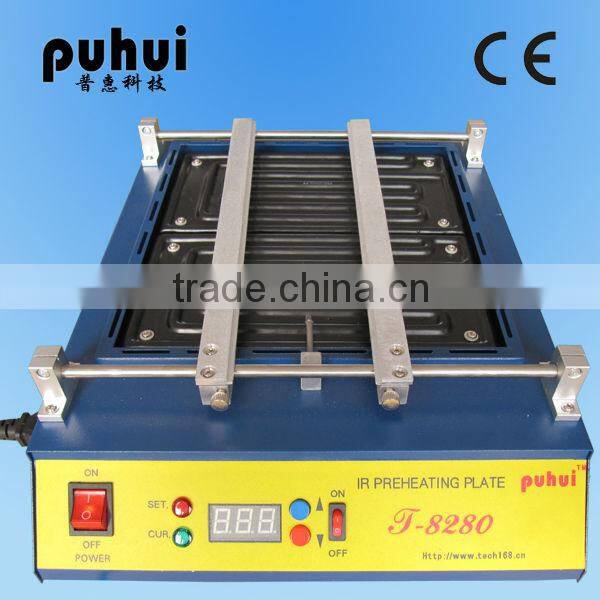

IR bga rework station T-8280, preheating plate, oven,electric hot plate

IR bga rework station T-8280, preheating plate,oven,electric hot plate

Products Features:

1. This machine selects the infrared component to give off heat which independent exploration, adopts advanced PID intelligent temperature, controls temperature precisely.
2. T-8280 can achieve to heat PCB board and component which contains lead or not,especially for the BGA and SMD parts.
3. Use infrared heat, easy to cut through, heat proportion, dont have sirocco flow. Dont shift the small components on the PCB board,ensure the welding quality.
4. This machine has 600W heating system, widely to 280x270mm.Can use together with the handhold infrared welder T-835.
5. Easily operate, you can operate it through easy training.

Technical Parameter

Work bench size
410x316mm
Rated voltage and frequency
AC220-230v/AC110V   60/50Hz
Complete machine power
1600W
Preheating plate power
1500W
Preheating plate size
280x270mm
Preheating plate temperature adjustable
0-450
Main Components:
Preheating plate main body
1
Temperature sensor
1
PCB board holder
1
Power line
1
User manual (compact disc)
1

Main component function explanation

Operation instructions

1. Inspect the machine and then open it
Check the connection of the power line.
Turn on the power switch. Allow the T-8280 Power-On-Self-Test (POST) to complete. After this, Temperature set-points will display last value used.
The black switch on the front panel are used to control the infrared preheating plate; press the blue button (up),the red button(down), can adjust the infrared preheating plate temperature between 0 and  450. Press the buttonON,the infrared preheating plate starts to work, pressOFF,it stops working.

2. Operation of preheating PCB board
(1) The placement and adjustment of the PCB board
According to the size of the PCB board, adjust the PCB board holder, then put the PCB board and fix the adjust knob.
According to the size of PCB board and welding technological requirement, press the blue button (up)and the red button   (down), regulate the output temperature of preheating plate between 0 and 450
(2) Preheating open and close:
Press the ON button,open the preheating plate about 3-5 minutes, make the temperature be the setting value then carry on the next step .
Finishing, press OFF, the preheating plate stops working.
AttentionDont close the power switch until the machine full cooling.
The preheating temperature set: If the PCB board contains lead, adjust the infrared preheating plate temperature to 100-120; if not, adjust to 120-140. You can also set the preheating temperature according to the users experience and technology.

3. Machine installation and adjustment:
The preheating plate heating type includes: the total pressure flow-through heating way and the PID percentage adjustment way. You can adjust it according to the preheating allowance. Generally speaking, if the preheating temperature is lower than 250 , selects the PID percentage adjustment method; and if the preheating temperature is higher than 250, use the total pressure flow-through heating way.

Cautions!

1. After finishing, dont turn off the power immediately; make sure the infrared preheating plate complete cooling.
2. Keep the ventilation free-flowing, the infrared preheating plate clean, use dehydrated alcohol clean it regularly!
3. The high temperature operation, pay attention, avoid scalding.
4. If you dont use the machine for a long time, youd better pull off the power source plug!

Warranty
The whole machine maintains for one year and the spare parts maintains for three months. .Provides the immediate network online Q/A and the technical advisory work service.

Statement

If there is any difference between users operating manual and actual product, according to the actual product!
