Building Cement Brick Block Machine:tilting Table

Building Cement Brick Block Machine:tilting Table thumbnail-1
Building Cement Brick Block Machine:tilting Table photo-1
US$ 1 - 3,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, AAC block making machine
Brick Raw Material:
Other, sand/flyash, lime, cement, gypsum,
Contact Supplier Request Quote Chat Now
Jiangsu Teeyer Intelligent Equipment Corp., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, AAC block making machine
Brick Raw Material Other, sand/flyash, lime, cement, gypsum,
Processing Brick Production Line
Method Autoclaved Aerated Concrete
Automatic Yes
Capacity 50,000-350,000m3 / year
Place of Origin Jiangsu, China
Brand Name Teeyer
Model Number JQF
Voltage 220V/380V
Power 400-1000KW
Dimension(L*W*H) 6000mm*1200mm*600mm
Certification CE,ISO
Warranty 12 months
After-sales Service Provided Overseas service center available
AAC block making machinary

Packaging & Shipping
Packaging:




 building cement brick block machine:tilting table  building cement brick block machine:tilting table

Delivery Detail:  Within 5 months


Product Description

 building cement brick block machine:tilting table

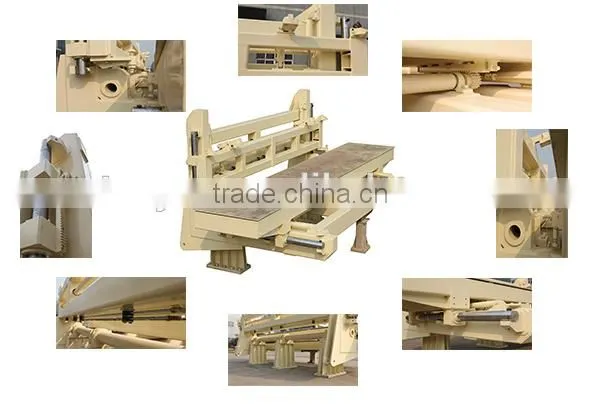

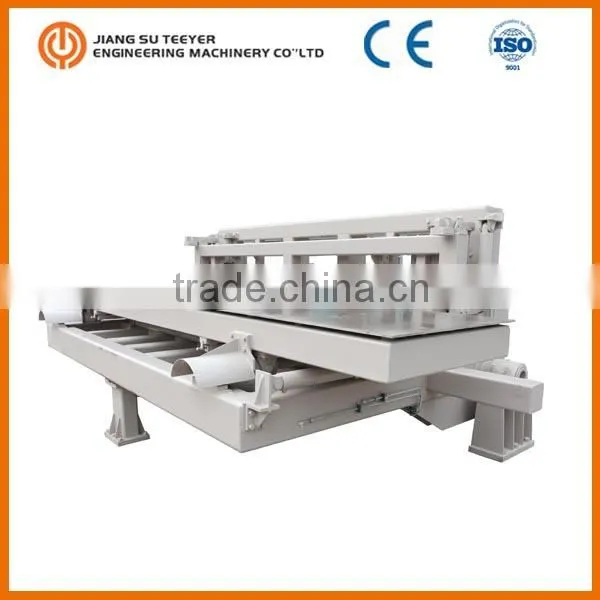

Tilting table

The function of tilting table is to remove the top and bottom layers on green cake. It consists of platform, guides and hydraulic system components and control system etc.

The green cake as well as its side plate after cutting shall be hoisted by semi-finished product hoister onto the platform which will fix the side plate and tilted the cake over by 90 degrees by hydraulic system, so as to remove the waste automatically. After removing, the platform turns back and releases the side plate.

Our Services



TEEYER sells  AAC cutting machine  all over the county and exports to foreign countries such as Germany, American, England, Korea, Japan, Singapore, Russia, Indonesia and United Arab Emirates and so on.



  1. We own advanced technicians and ensure supply of enough accessories;
  2. We have perfect management and regular tour visit to our customers;
  3. The Technical Service Development makes regular tour check and training upon customers;
  4. We have training system to rise up customer’s technique;
  5. We promise one year warranty time for quality.






Company Information



TEEYER AAC Block Machine Advantages:

  1. Experience:  specialized in AAC industry since 1989, occupy the biggest market share with over 700 plants in domestic market and 70 plants abroad China.
  2. Customer:  31 sets in India, 10 sets in Middle East, 10 sets in Indonesia, 6 sets in Vietnam, 6 sets in Russia, 2 plants in Thailand, and etc.
  3. Technology:  cooperate with Germany company, use the same type cutting machine as Wehrhann.
  4. Patents:  have patent for cutting machine, separator, side plate and mould.
  5. After-sales service:  advanced technicians, enough accessories, regular tour visit, training system, one year warranty time for quality.



TEEYER AAC Block Plant Reference:



building cement brick block machine:tilting table

building cement brick block machine:tilting table







Working Live-Action:





building cement brick block machine:tilting table





Quality Control:

      building cement brick block machine:tilting table



 Cutting Specification:

building cement brick block machine:tilting table



Certifications:

building cement brick block machine:tilting table

Group Photos with Customers:

building cement brick block machine:tilting table





Introduction of AAC Block & Panel Plant:



AAC(Autoclave Aerated Concrete) is a new type building material that the raw materials are siliceous materials(fly-ash, sand, slag), calcareous materials(lime, cement and gypsum), and Aluminium powder. AAC product has been widely used in industrial and civil construction. AAC brick making machine is sold well in the world.





Advantages & Features of AAC Block & Panel  Plant:

  1. Light Weight:350 – 700 kg/m³
  2. High Intensity: 3.5~10.0Mpa
  3. Good Sound Insulation:2 dB bonus
  4. Good Thermal Insulation Property: 0.1~0.20W/(m · k)
  5. Great energy efficiency
  6. Excellent fire resistance
  7. Outstanding structural performance



Production Engineering of AAC Block & Panel  Plant:building cement brick block machine:tilting table

1) The preparing of the raw material;



2) Batching, Mixing, and Pouring;



3) Cutting and grouping;



4) Autoclaving and finished products;



5) Side plate back, mould assembling and mould oiling.





Raw Material:



Flyash AAC Brick Series

building cement brick block machine:tilting table

Sand AAC Brick Series

building cement brick block machine:tilting table
