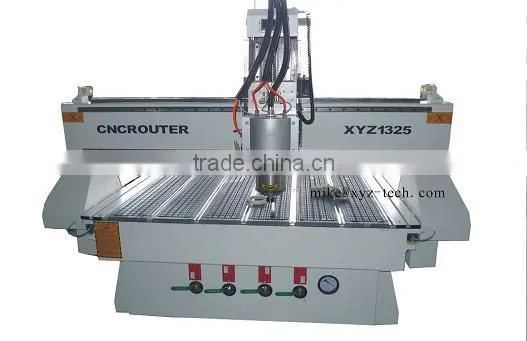

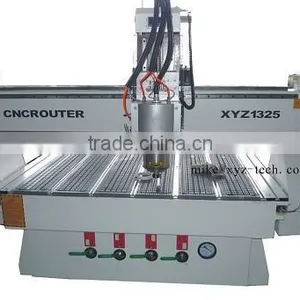

XYZ CNC ROUTER CUTTING MACHINE 1325
The machine is widely used in many industries such as furniture, decoration, wooden doors, stone, metal...It is suitable to process various wooden products, breastplate,handicraft, gravestone, embossment, davertisement plates, density board, hard plastic, archaized furniture, acrylic cutting, curved surfaces of instrument, sucking plastic mould making, and other metal or nonmetallic materials...
1.X, Y, Z working area 1300 X 2500 X 200 mm
2.X, Y Movement Rack and Pinion transmission, Linear Square orbit (Taiwan Hiwin).
3.Z - Movement Imported ball screw made in Germany Linear Square orbit (Taiwan HIWIN)
4.Resolution Working Accuracy Reposition Accuracy 0.01 mm
0.05 mm
5.Machine Bed Structure Welded Steel / Cast Steel structure
6.Bed Type T Slot + Vacuum
7.Max. idling speed 50 m/min
8.Spindle Type 3.0,4.5kw water cooling / 3.0, 6kw air cooled HSD Italy
9.Spindle speed 0-24000 rpm / 0-18000 rpm
10.Working voltage Three Phase 380V/50Hz
11.Inverter Delta Taiwan
12.Drive Motors Stepper
13.Max. Power (without spindle) 1850 Watts
14.Max. Working Speed 25,000 mm/minute (good quality cutting bits ensured)
15.Command G code, HPGL, U00, mmg, plt
16.Operating system DSP/ Mach3/ NC Studio
17.Interface USB
18.Diameter of cutter ¦Õ3.175-¦Õ12.7
19.Dust collector (complete) Yes
20.Work-holding T Slot + By suction (vacuum)
21.Guarantee: One year from the date of commissioning.
