♣---ABOUT OUR FACTORY
we are the top 5manufacture of precision seamless steel tube in China , our factory produces cold drawn/rolled seamless steel tube , honed /SRB tube ,hydraulic cylinder steel tube ,etc. our products mainly used in hydraulic cylinder ,automobile ,textil machinery ,oil drilling ,and engineering machinery . our company established in 1992, so we have more than 20 years experience in the steel tube world .and we have the advanced equipment and best services,so welcome to our company to visiting and negotiate business.
♣---ABOUT OUR PRODUCT
Commodity |

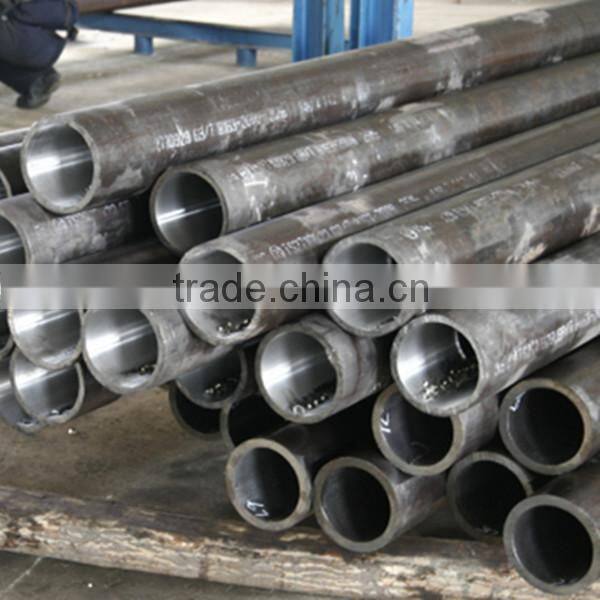

CK45 5inch cold finished hydraulic cylinder carbon seamless steel tube | |||
Items |
Seamless steel tube |
Cold drawn/rolled tube |
Honed tube |
|
Length |
According to the customer’s need |
|||
Tolerance |
H8 H9,H10 or as customer’s need |
|||
Surface roughness |
Ra0.2-0.8µm |
|||
Standard |
Round pipe: GB/8163-2008, GB 8162-2008, ASTM A 106, DIN2391, ASTMA519 |
|||
Grade |
Q345,10#-45#,ST35-ST52,16Mm |
|||
Application |
Hydraulic cylinder, automobile, oil drilling, textile machinery,etc. |
|||
Inspection |
With hydraulic testing, eddy current and infrared test. |
|||
|
Normal Seaworthy Packing
|
1. Bundle packing. 2. Beveled end or plain end or varnished as per buyer's requests. 3. Marking: as per customer's requests. 4. Painting varnish coating on the pipe. 5. Plastic caps at ends or according to your request. |
|||
Delivery Time |
Less than 25days after the advanced payment |
|||
Payment Terms |
T/T or L/C |
|||
Outer diameter |
30-250mm |
|||
Finally condition |
BK BKS BKW NBK GBK |
|||
♣---ABOUT THE DIMENSION
40*50 |
90*110 |
140*170 |
190*215 |
40*55 |
95*110 |
145*170 |
190*220 |
50*60 |
95*115 |
150*170 |
190*225 |
50*65 |
100*110 |
150*175 |
200*220 |
55*70 |
100*114 |
150*180 |
200*225 |
60*70 |
100*115 |
155*180 |
200*230 |
60*75 |
100*120 |
160*175 |
200*245 |
60*78 |
100*125 |
160*180 |
200*250 |
63*73 |
105*125 |
160*185 |
220*250 |
63*75 |
110*125 |
160*190 |
220*270 |
63*76 |
110*130 |
160*195 |
225*250 |
63*78 |
115*130 |
165*190 |
240*273 |
65*80 |
115*135 |
165*205 |
250*290 |
70*80 |
120*140 |
170*200 |
250*300 |
70*82 |
125*140 |
180*200 |
260*300 |
70*85 |
125*145 |
180*205 |
280*323 |
70*90 |
125*150 |
180*210 |
280*355 |
75*90 |
130*150 |
180*215 |
300*350 |
80*92 |
130*155 |
180*220 |
200*213 |
80*95 |
130*160 |
185*205 |
200*216 |
80*100 |
135*160 |
185*215 |
250*266 |
85*100 |
140*160 |
185*220 |
|
90*105 |
140*165 |
190*210 |
♣---ABOUT THE TOLERANCE
ID size |
ID deviation (mm) |
|||
|
H7 |
H8 |
H9 |
H10 |
30 |
+0.021 0 |
+0.033 0 |
+0.052 0 |
+0.084 0 |
>30~50 |
+0.025 0 |
+0.039 0 |
+0.062 0 |
+0.100 0 |
>50~80 |
+0.030 0 |
+0.046 0 |
+0.074 0 |
+0.120 0 |
>80~120 |
+0.035 0 |
+0.054 0 |
+0.087 0 |
+0.140 0 |
>120~180 |
+0.040 0
|
+0.063 0 |
+0.100 0 |
+0.160 0 |
>180~250 |
+0.046 0 |
+0.072 0 |
+0.115 0 |
+0.185 0 |
>250~315 |
+0.052 0 |
+0.081 0 |
+0.130 0 |
+0.210 0 |
>315~400 |
+0.0527 0 |
+0.089 0 |
+0.140 0 |
|
♣---ABOUT THE PACKAGING
(1)Delivery time: In 20 days or according to client's requires
(2)Trade terms: EXW/FOB/CIF etc
(3)Payments: T/T or L/C or according to client's requires
(4)Port: Yantai or Qingdao
(5)MOQ: 5 metric tons or at customer's demands
(6)Packing: we usually bundle with steel strips ,
branding parcel or wooden box outside ,or according to the customer’s acquirement
♣---ABOUT THE PROCESSING
♣---ABOUT THE TESTING
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
2.100% Dimension & Visual Examination |
|
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
|
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
6.Straightness Test (optional) |
7.Roughness Test (optional) |
8.Intergranular Corrosion Test(optional) |
9.Impact Test (optional) |
10.Grain Size Determinations (optional) |
|
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
♣---ABOUT THE CERTIFICATE
What is the advantage of our company ?
1.Rapid response on any inquiry.
2.Competitive price with best service .
3.Professional inspection department to guarantee quality.
4.ISO System 90012008certifa
5 Industry experience over20years.
6.Management Systems-Internal Software
7.Finished Product Inventory-More Than 5000 Tons.
8Raw Material inventory -Over 6000 Mertic Tons.
9Shipment of goods -More than 70 countries worldwide.
10.The most convenient transport and prompt delivery
