Specifications
XYZ-CAM P4-1 1325 C axis1) 9.5KW HITECOspinlde
2) CAROUSEL Magazine
30 SYNTEC EZ-4 controller system
3) YASKAWA
4 axis 3d cutter milling cnc router for foam mdf wood plastic aluminium

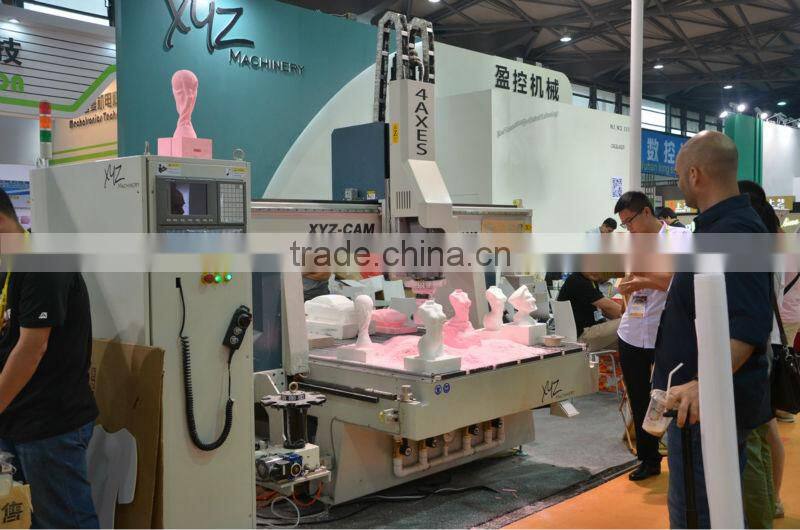

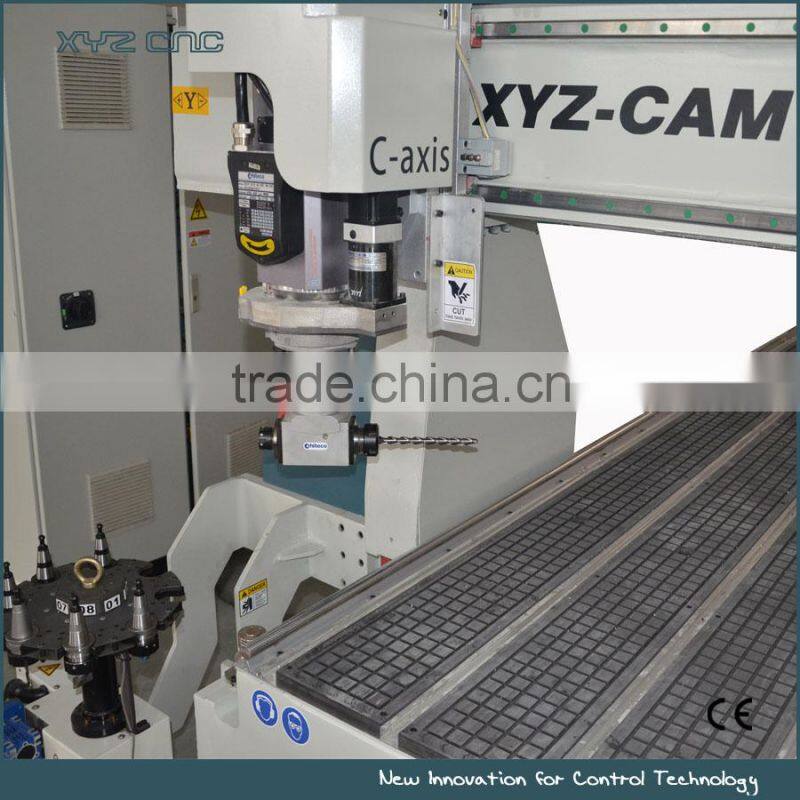

4 axis CNC Router XYZ1325 with angular head rotating 360 degree for side processing
can do many jobs of 5 axis do
4 Axis CNC Router for 3D Mould/Model industry
Belief Introduction of 4 Axis CNC Router for 3D Mould/Model industry:

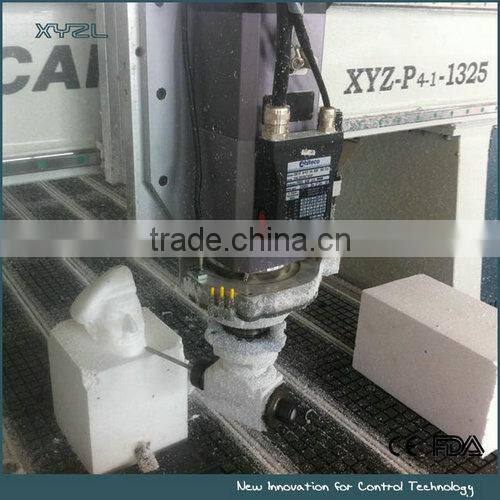

1.XYZ-CAM,P4-1,C axis with angular head CNC router , incorporates a 9.5kw Italian-made ATC spindle and 90° angular head with C Axis, it is a combination for both three axis vertical machining and the horizontal machining by C Axis (4th Axis). The machine is capable to finish a true 3D structure in a single setup. The ideal material for this machine including foam, wood, plastics, composite resin….
2. With Precision machined & heavy duty frame, stress relieved in a rigorous thermal treatment, hence, the P4 4 Axis CNC is allows a 500-1000mm large Z travel, and offers accurate and smooth machining effect without vibration.
3. Motion by helical rack and gear on X and Y, imported high-precision ball screw on Z Axis, which moving smoothly, to ensure the machine’s high precision.
4. High-performance Japanese Yaskawa servo system with planetary gear reducers to ensure the machine’s high speed and accuracy.
5. Advance 4 Axis control system, auto-complete multilevel 3D processing, carving or cutting. Meanwhile, offline operation can be realized.
6. Original industrial standard HSK tool holders, Taiwan made Carousel tool magazine with 8 positions plus T9 the angle head position.
7. Standard configuring with auto lubrication system, automatic tool setting system.
8. Top quality accessories, to minimize the machine’s failure rate,Well-known electrical parts Schneider, Omron, Honeywell, etc., Pneumatic components Taiwan AirTAC.
Applicable Industries of 4 Axis CNC Router for 3D Mould/Model industry:

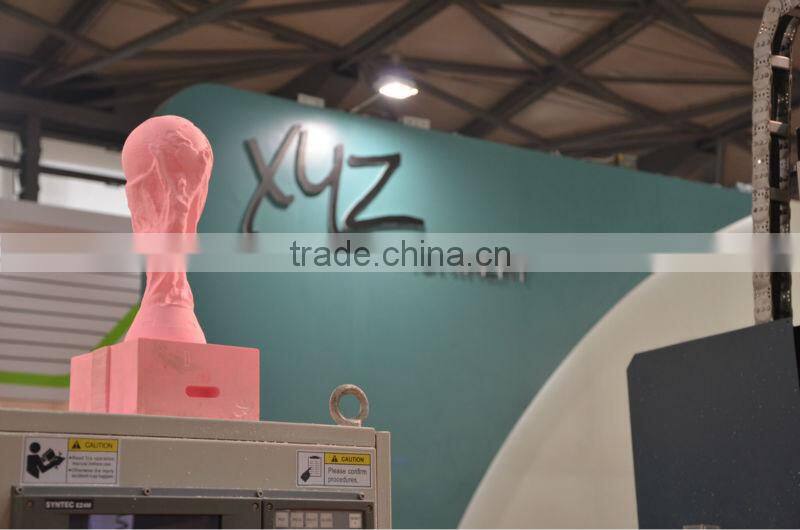

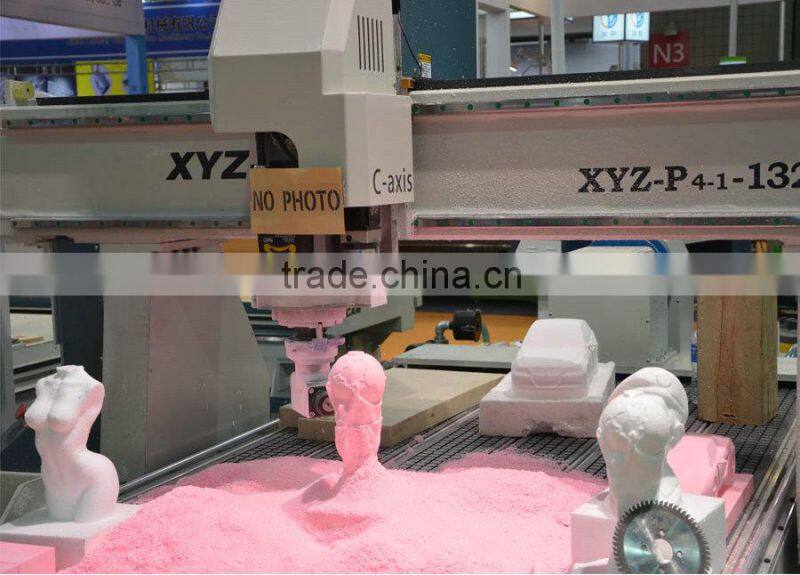

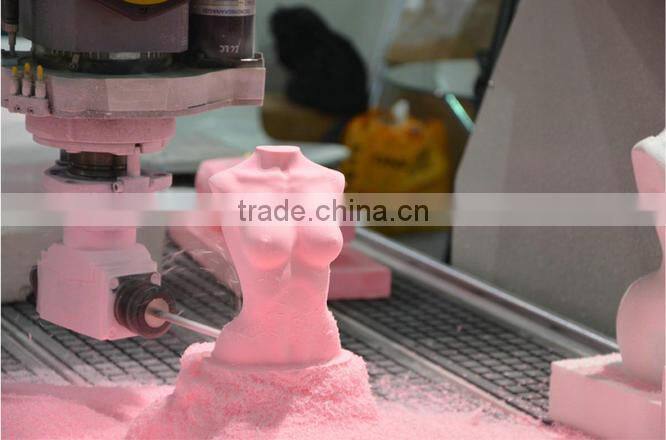

The machine is capable to finish a true 3D structure in a single setup. The ideal material for this machine including foam, wood, plastics, composite resin…. 3D models, moulds, animated advertising and decorative elements, theme parks, Arcade Games
Configure:
1) 9.5KW Hiteco ATC spindle, Change tools automatically. With Carrousel tool magazine 12 pcs HSK F63 real industrial tool holder.
3) SYNTEC EZ-4M controller system with Ethernet interface, working without connecting with computer during working and easy to control.
4) Software: CAD/CAM designing software such as Original type3, Artcam, UG,Power mill.
5) Auto lubrication system, easy to operate by pressing one key.
6) Separated big control cabinet makes operation easily.
7) Adopt high speed YASKAWA SERVO motor and drivers, Z axis motor with brake, Max speed is 50000mm/min.
8) Perfect design, top quality accessories, to minimize the machine’s failure rate.
Certificates:
Other model:
Technical Parameter:
Number |
Index |
Parameter |
1 |
X,Y,Z, AWorking Area |
2500x1300X400mm ±360° |
2 |
Table Size |
2940X1490mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy: |
±0.03mm |
5 |
Table Surface |
Integrated Vacuum and T-slot Combined (Option: T-slot Table) |
6 |
Frame |
Precision machined & heavy duty frame (stress-relieved),one-piece steel base |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and TBI Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 4.5Kw |
10 |
Max. Rapid Travel Rate |
50000mm/min |
11 |
Max. Working Speed |
30000mm/min |
12 |
Spindle Power |
4.5/6.0/7.0/9.5/12.0 Kw HITECO ATC(optional HSD ) |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
Yaskawa Motors |
15 |
Working Voltage |
AC380V/50/60Hz,3PH |
16 |
Command Language |
G Code |
17 |
Operating System |
Syntec EZ-4M Control System/10B |
18 |
Computer Interface |
CF card, Ethernet |
19 |
Flash Memory |
256M |
20 |
Tool holder |
HSK F63 |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility |
Type3, UcancameV9 software ( UG software/Power mill) |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3400X3500X2800mm |
26 |
N.W. |
2600KG |
27 |
G.W. |
2800KG |
28 |
Optional Parts |
Lucbricating system |
Vacuum Pump | ||
Mist-cooling System | ||
Positioning air cylinder |
