4 axis 3d cutter milling cnc router for foam mdf wood plastic aluminium

Specifications

4 axis cnc router
1) 9.0KW HSD spinlde
2) With ATC
30 SYNTEC EZ-4M controller system
3) 850W YASKAWA SERVO

4 axis 3d cutter milling cnc router for foam mdf wood plastic aluminium



Berifes

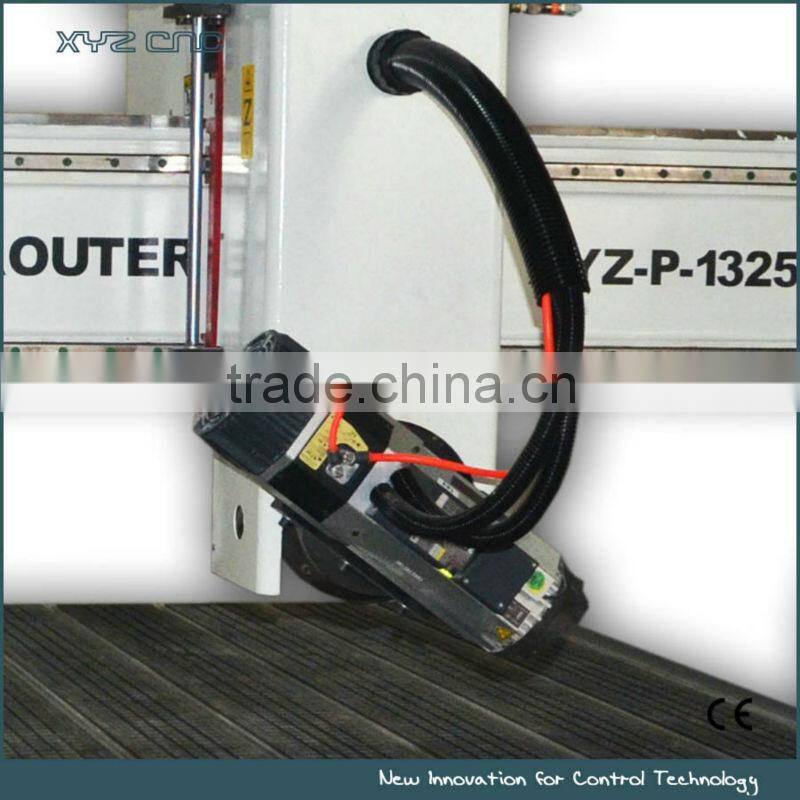

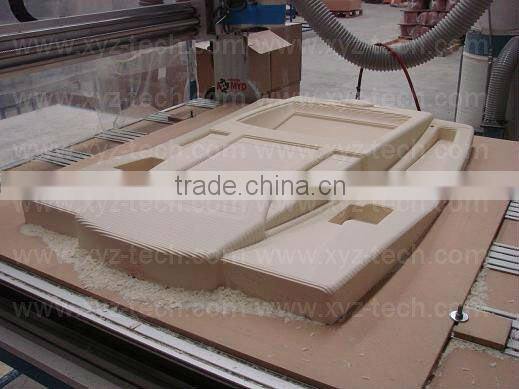

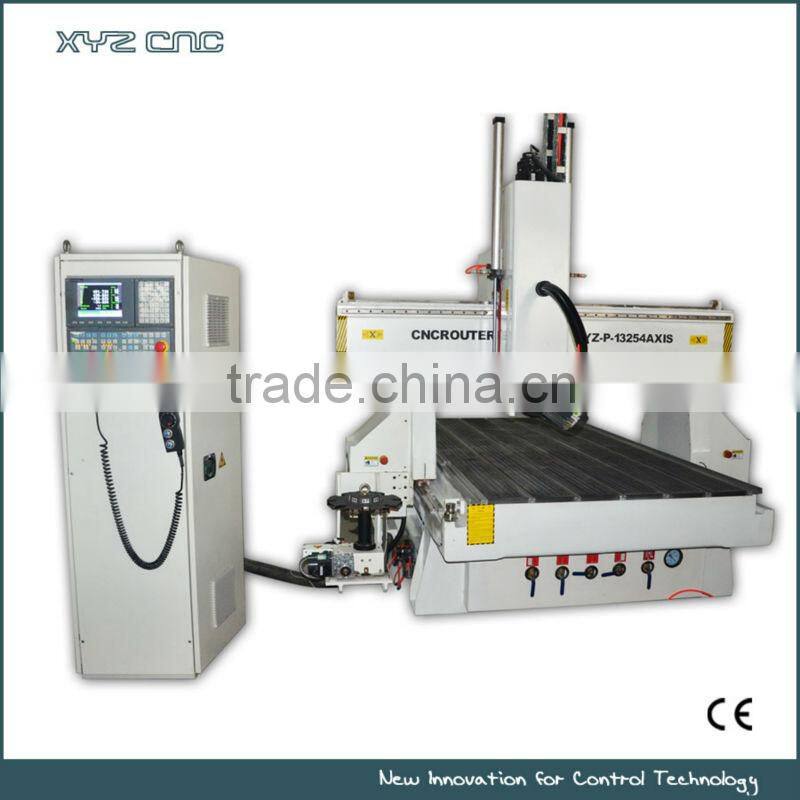

With hard steel tube structure, carrousel tool magazine, XYZ-1325 3d engraving CNC Router 4 axis is specially for 3D industry machining. With Italy HSD ATC spindle(B axis) can rotate +/-100 degree, and change tools automatically, can make multi-kinds of surface which we can design with Software, for example: arc-surface milling, bend surface machining for 3D jobs, like special shaped arts, bended doors or cabinets. The machine is completely good at workingon hard wood, Rosewood, MDF, Acrylic, Plastic, and some soft metal.



ATC cnc router 4 axis for 3d mould industry XYZ-1325 performance and Feature:

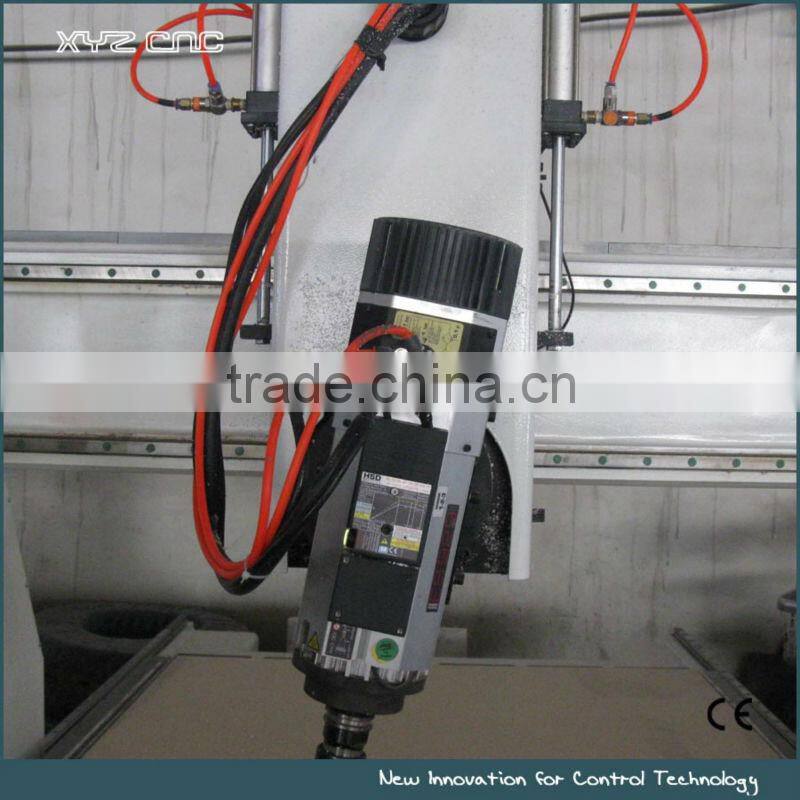

1) 9.0KW HSD ATC spindle, Change tools automatically. With Carrousel tool magazine

, and long life time.

3) SYNTEC EZ-4M controller system with Ethernet interface, working without connecting with computer during working and easy to control.

4) Software: CAD/CAM designing software such as Original type3, Artcam, UG.

5) Auto lubrication system, easy to operate by pressing one key.

6) Separated big control cabinet makes operation easily.

7) Adopt high speed 850W YASKAWA SERVO motor and drivers, Z and B axis motor with brake, and two motors for Y axis. Max speed is 60000mm/min.

8) Perfect design, top quality accessories, to minimize the machine's failure rate.







ATC CNC engraver applicable Industry:

1) Wood working industry, for hard wood, Rosewood

2) Synthetic material industry, for MDF, Acrylic, Plastic

3) Metal industry, for some soft metal



Other Models:



Technical Parameter:

Number	Index	Parameter
1	X,Y,Z, AWorking Area	1300x2500x400mmX 180°
2	Table Size	1450×2940mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy:	±0.03mm
5	Table Surface	Vacuum and  T-slot Combined (Option: T-slot Table)
6	Frame	Big Steel Tube Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle)  4.5Kw
10	Max. Rapid Travel Rate	40000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	9.0 Kw HSD ATC(optional: 3.8Kw)
13	Spindle Speed	0-24000RPM
14	Drive Motors	850W Yaskawa Motors
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
16	Command Language	G Code
17	Operating System	Syntec EZ-4M Control System
18	Computer Interface	CF card, Ethernet
19	Flash Memory	256M
20	Collet	ER32(ISO30)
21	X,Y Resolution	<0.03mm
22	Software Compatibility	Type3, UcancameV9 software  ( UG software)
23	Running Environment  Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	3300X2200X2000mm
26	N.W.	2500KG
27	G.W.	2800KG
28	Optional Parts	Water cooling ATC spindle
		Vacuum Pump
		Mist-cooling System
		Delta/ Panasonic Servo Motors
