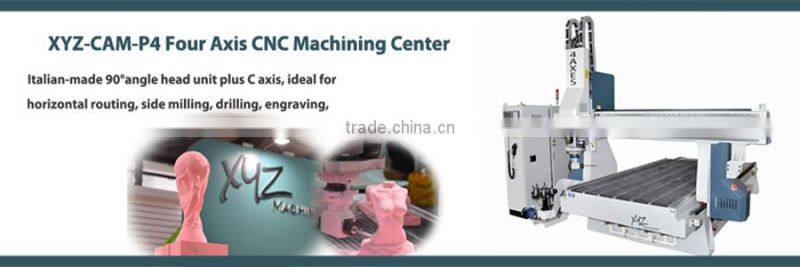

4 Axis Mould CNC Router Mould Engraving Machine XYZ-P4-1325 ATC

Heavy Duty 4 Axis CNC Router for 3D Mould/Model industry XYZ-CAM-P4-1325

(Certificate: ISO, CE, FDA, GOST-R)

4 Axis CNC Router for 3D Mould/Model industry:

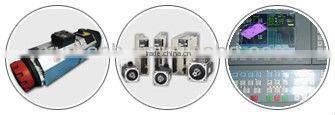

1) Italian-made spindle & Angle head + C Axis
2) Auto tool changing with Carousel Magazine
3) Advanced 4 Axis controller system
4) 1.3KW YASKAWA SERVO with planetary reduction gears

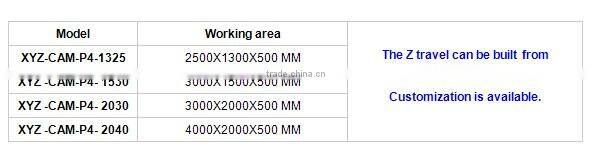

Standard Models of 4 Axis CNC Router for 3D Mould/Model industry:

Belief Introduction of 4 Axis CNC Router for 3D Mould/Model industry:

1.XYZ-CAM-P4-1325 CNC router , incorporates a 9.5kw Italian-made ATC spindle and 90° angle head with C Axis, it is a combination for both three axis vertical machining and the horizontal machining by C Axis (4th Axis). The machine is capable to finish a true 3D structure in a single setup. The ideal material for this machine including foam, wood, plastics, composite resin….

2. With Precision machined & heavy duty frame, stress relieved in a rigorous thermal treatment, hence, the P4 4 Axis CNC is allows a 500-1000mm large Z travel, and offers accurate and smooth machining effect without vibration.

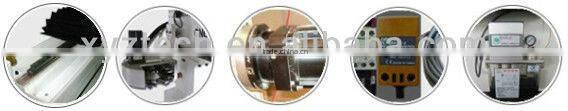

3. Motion by helical rack and gear on X and Y, imported high-precision ball screw on Z Axis, which moving smoothly, to ensure the machine’s high precision.

4. High-performance Japanese Yaskawa servo system with planetary gear reducers to ensure the machine’s high speed and accuracy.

5. Advance 4 Axis control system, auto-complete multilevel 3D processing, carving or cutting. Meanwhile, offline operation can be realized.

6. Original industrial standard HSK tool holders, Taiwan made Carousel tool magazine with 8 positions plus T9 the angle head position.

7. Standard configuring with auto lubrication system, automatic tool setting system.

8. Top quality accessories, to minimize the machine’s failure rate, Well-known electrical parts Schneider, Omron, Honeywell, etc., Pneumatic components Taiwan AirTAC.

Applicable Industries of 4 Axis CNC Router for 3D Mould/Model industry:

The machine is capable to finish a true 3D structure in a single setup. The ideal material for this machine including foam, wood, plastics, composite resin…. 3D models, moulds,  animated advertising and decorative elements, theme parks, Arcade Games

Technical Parameters of 4 Axis CNC Router for 3D Mould/Model industry:

Packing& Shipment

Long Term Cooperated shipping forwarder to offer shipment.

Standard export package, custom suffocating free.

Service

Engineers available to service machinery overseas…

Remote assistance, support online, by call, by video, by e-mail…
