Specifications

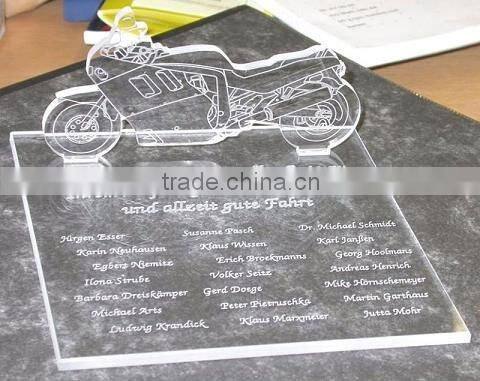

Laser Engraving and Cutting Machine EXLAS1280 is for engraving & cutting acrylic, fabric, rubber and nonmetal materials.1.Unique design
2.High precision beeline slide obit
3.Professional machinery frame to ensure high engraving quality
Machine Description | EXLAS-1280 Laser Engraving and Cutting Machine |
Machine Performance: | |
Laser-type | Hermetic and detached CO2 laser tube |
Laser-power | 80W (100W or 150W for option) |
Cooling Mode | Circulating-water-cooling |
Power Adjustment | 0-100% controlling, no segment and adjusting by software |
Machine Control and Drive | Speedy DSP controlling, stepper motor |
Max Engraving Speed | 48000mm/min |
Max Cutting Speed | 500mm/min(when cutting 10mm thick of acrylic) |
Repeating Location | 0.01mm |
Minimum Character | Chinese character 1.5mm, crisscross-row 1mm |
Max Power | 1800W |
Adjustable Up-down Distance of Laser Head | 40mm |
Working Travel Area | 1200x800mm, 1250mm width with infinity material-feeding |
Table Area | 1250x850mm |
Up-down Range of Working Table | Mechanical 260mm |
Working Voltage | AC220V 50Hz |
Working Environment | Temperature: 0-45oC, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language | English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Dictate Format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw direct outputting |
Body Dimension (LxWxH) | 1800x1180x1100mm |
Packaging Dimension (LxWxH) | 1920x1400x1220mm |
Packaging | Wooden box |
Gross Weight | 274kg |
Machine Color | Customizable |
Delivery Time | 15 days |
Payment | T/T |
Optional Equipment | Rotary attachment |
Motorized up-down table | |
Water-cooling unit | |
Red-light position | |
Vacuum table | |
DSP Off-line operation with usb flash | |
