RECI 80W /100W /150W Laser Engraving Machine and Laser Cutting Machine EXLAS 6090

Specifications

RECI 80W /100W /150W laser engraving machine and laser cutting machine EXLAS 6090

1. Technical Parameter:

1) Working Travel Area: 600 x 900mm,600mm width with infinity material-feeding

2) Laser power: 80W,100W

3) Laser type: carbon dioxide laser tube

4) Max Engraving speed: 1,200mm/s

5) Max Cutting speed: 500mm/min (80w, 10mm thick of acrylic)

6) Resetting positioning accuracy: <0.015mm

7) Cutting depth: acrylic 0-25mm

8) Min. shaping character: Chinese character 1.5mm, crisscross-row 1mm

9) Power supply: 220V±10% 50Hz or 110V±10% 60Hz

10) Gross power: 1,800W

11) Software supported: ArtCut, CorelDraw, PhotoShop, AutoCAD

12) Graphic format supported: .plt,.dst,.dxf,.bmp,.ai,

13) Engraver for curve surfaces: we can add a Rotary attachment on the laser engrave/cutting machine,

then the machine can engrave on cylinder objects.

14) Circulating-water-cooling: yes

15) Up-down Range of Working Table: Mechanical 260mm (up and down by hand)

16) Laser tube (life hours): 10,000hours

17) Equipment dimensions (mm): 1680mmx1170mmx1340mm

18) Assistant equipment includes: water pump, exhaust fan, aluminum alloy worktable

19) Optional spare part: rotary system, motorized up-down table, cooling water system, red-light

position bond with laser beam coaxially, DSP Off-line operation with USB flash

20) Recommended spare parts / consumables: laser tube and lens

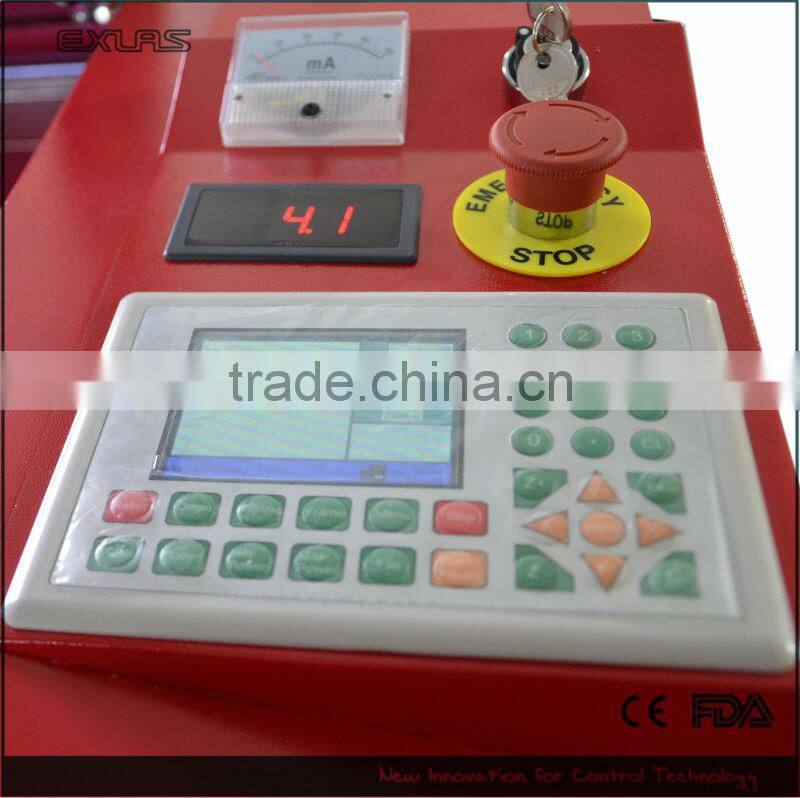

21) English LCD

22) USB interface

23) Supports CAD and CorelDraw output directly

2. Applicable Industry and Material:

1) Model industry(construction, wooden toy, aviation and navigation model ), advertisement, decoration,

art crafts, electronics, and electric appliances, etc.

2) Non-metal materials such as acrylic, wood plank(light plank), bamboo ware, double color sheet, paper,

leather, shell, coconut shell, ox horns, resin animal grease, ABS board, lamp shade, etc.

3. New Improvement:

1) New humanized design makes the machine body more compacted, saving working space.

2) Improved structure enable the laser works more stable, better accuracy, lower noise.

3) Intelligent switch on door opening and closing. When you open the door, the machine will stop

beaming and traveling, and then you can resume working manually orby closing the top door.

4) Intelligent thermostat and water flowing switch to protect the laser tube, when the temperature goes

above a certain point(can be fixed), the laser will pause and resume till temperature get normal, when

there is no water flowing,the switch will close and machine stop working. All these can enable the laser

tube lifespan to be extended.

5) LED Lamp also fixed, with long lifespan and safe position.

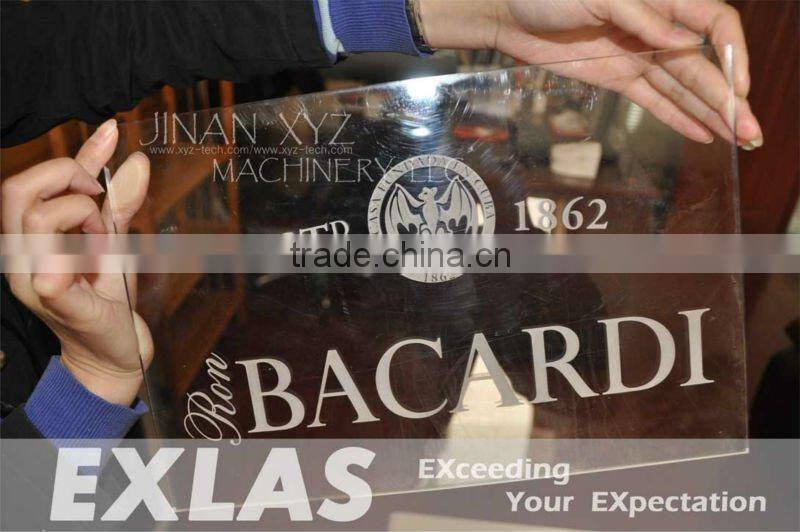

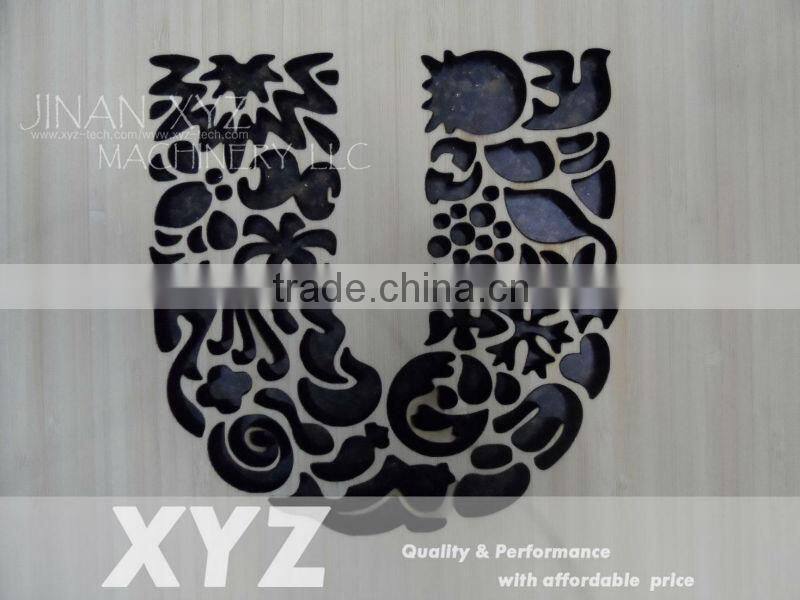

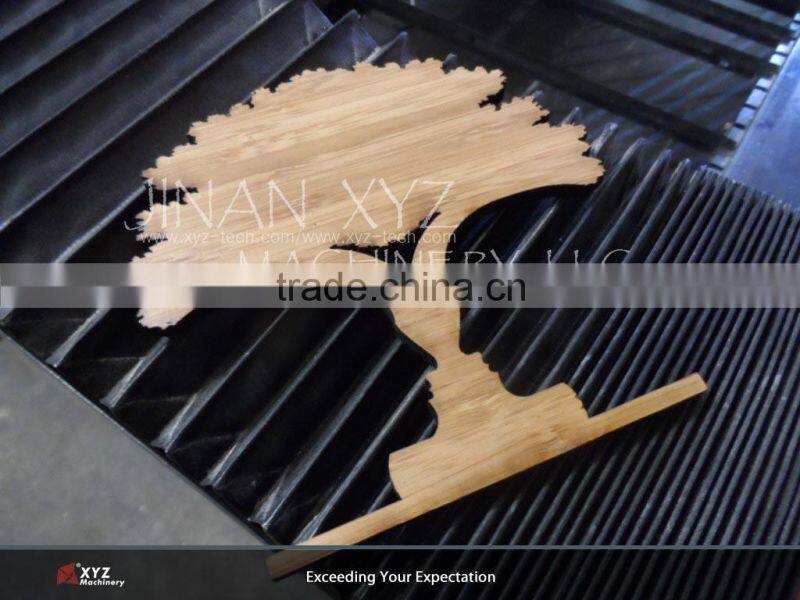

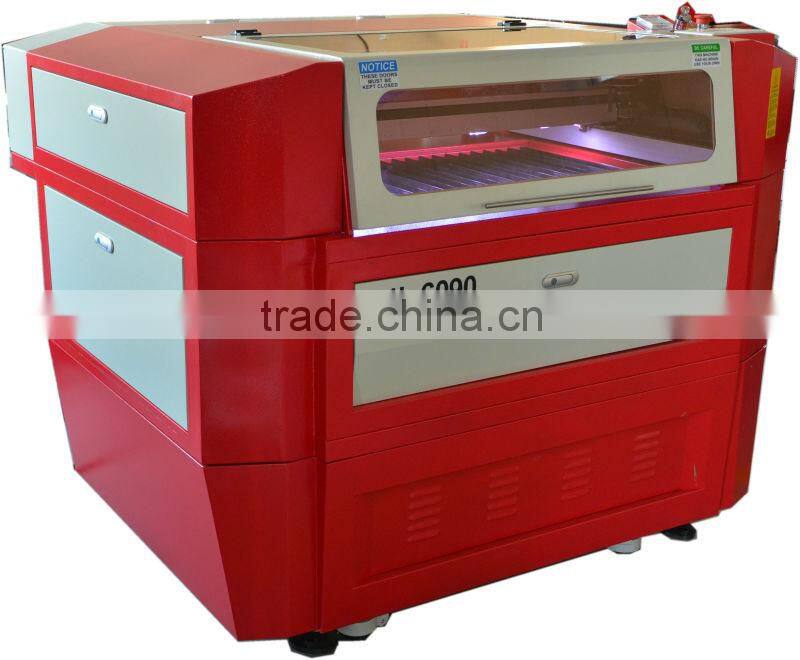

4. Samples and machine photos

5. Packaging and shipping :

Outside package :Standard export wooden case

Inner package : Stretch film

6. Gurantee and After sales service :

 Two years guarantee from the date of commissioning for the laser.
 Reci brand laser tube guaranteed 9 month.
 Exhaust fan guarantee for half year
 18 hour technical supports by email or calling
 User-friendly English manual and Video CD

7. Company information :

    Jinan XYZ Machinery LLC (XYZ Technologies Ltd.) is a professional manufacturer of CNC router and CO2 laser machines. With over 10 years of experience in the industry and constant technical innovation, we have developed CNC machines- the XYZ series CNC Router under "XYZ-CAM" brand, and CNC Laser machines-"EXLAS" Brand. The Company has its own outstanding product development team comprising of professional engineers and research technologists with a long industry experience. Due to our sustained focus on excellent product quality and dependable after-sales service, the Company has established stable and mutually beneficial relationship with clients and distributors in more than 40 countries and regions.

With the latest technology available, our high quality machines are capable of meeting diverse needs. Thanks to our attentive service and competitive price, our customers have been very satisfied over the past years.

XYZ Has rich experience on redesigning and manufacturing many special CNC and Laser machines for variety of applications
