PCB CNC Router 300*300mm ZK-3030
PCB CNC Router machine introduction
PCB cnc machines can quickly manufacture Printed circuit board samples, shorten the development time, and save the development cost, during the experiment, it has great security finishing the PCB samples .Our pcb cnc machine is portable , with small size , has all the function of PCB drilling, PCB milling ,the line sculpture, appearance cutting, the line width isolation set, engraving and cutting , breakpoint continuingly, edge milling and different hole drilling , and other functions. It is your best chose to make PCB samples. During the engraving process, the processing depth and speed is controlled by computer, no need by the manual adjustment and try again and again. Our PCB cnc machine is widely used in the colleges and universities electronic related, electronic development companies, military industry, office, government, and other fields
Technical Parameters
Model |
ZK-3030PCB CNC Router |
Drive mode |
High precision ballscrew lead |
XY-Axis working area |
300*300mm |
Minimum processing line diameter |
6-8mil |
Minimum processing line distance |
8mil |
Drive mode |
3-axis Step motor |
Milling speed |
5000mm/min |
Spindle power |
800w water cooled spindle motor |
Line isolation |
Yes |
Processing board |
Single/double board |
Drive motor |
Step motor |
Compatible software |

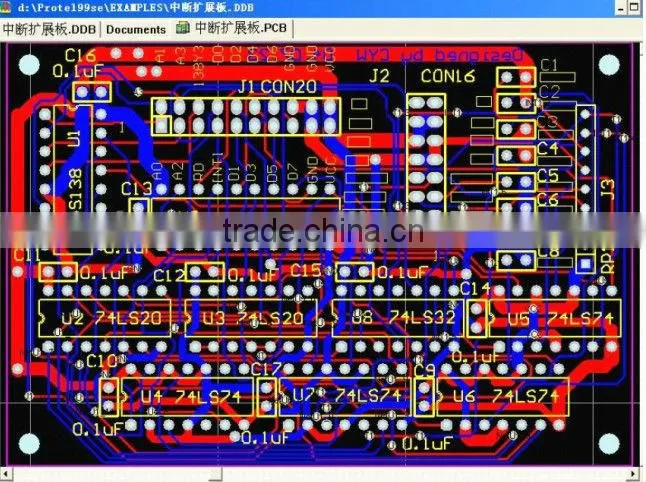

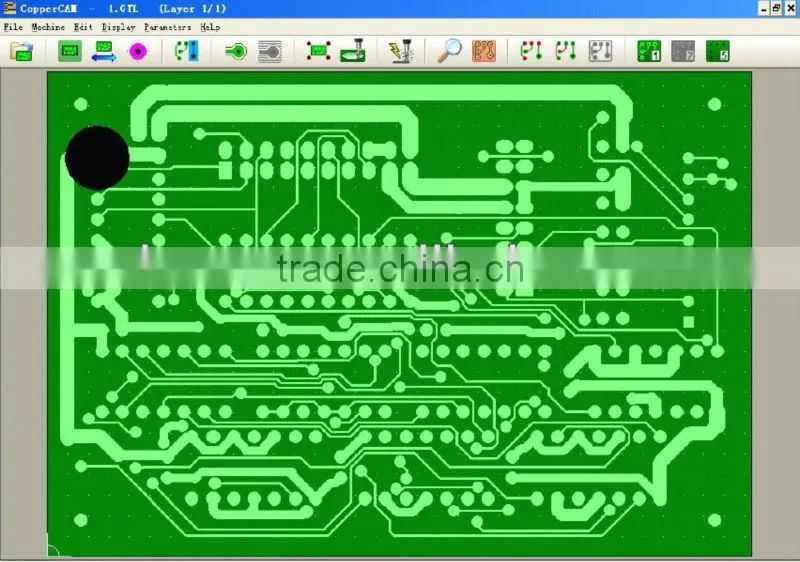

Protel99 , CopperCAM |
Operation system |
WindowsXP |
Command format |
G code,U00(Type3),.nc, mmg(ArtCAM), plt |
Power supply |
AC220V 50/60HZ Or AC110V 50/60HZ or AC 380V 50/60Hz, or according to your local standard |
Control system |
NcStudio control system |

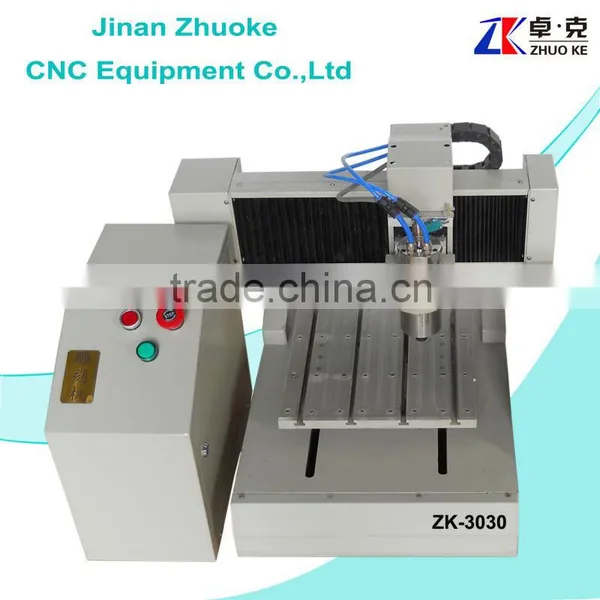

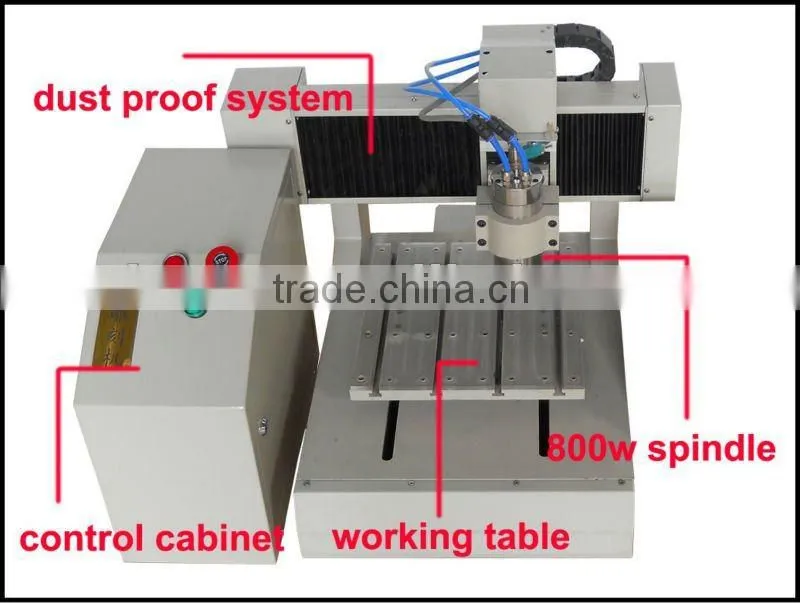

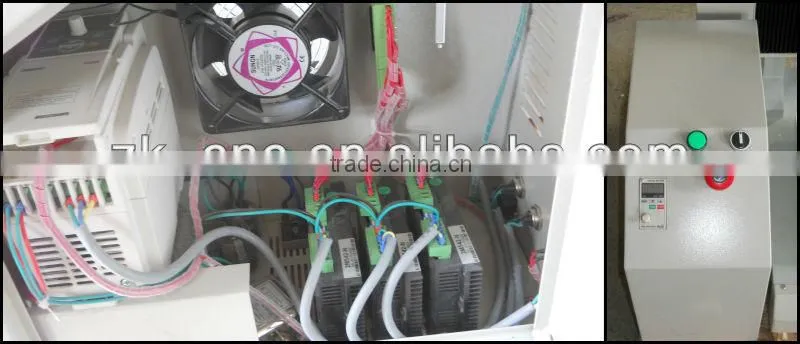

Reference Machine Photos
Machine advantage

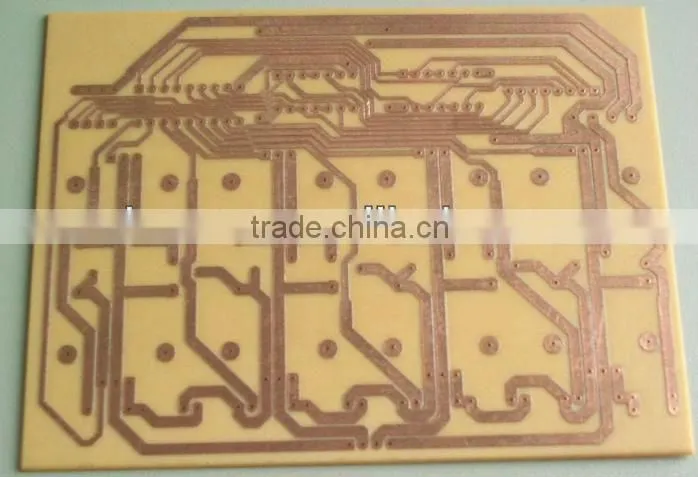

1. The PCB machine can drill and mill double pcb panel, and drilling process is quite simple.
2. Drilling and milling speed can be adjustable, can engrave a relatively thin lines, and carving process can temporarily stop.
3. Has the breakpoint renewal carving and regional sculpture features.
4. During the carving process ,you can adjust the Z axis altitude, which can avoid not carving the circuit board because of substrate gravamen.
5. Has the function of milling plane, substrates in after many drilling and milling plane after carving can through to adjust the level of the substrate, and still can put the substrate to get rid of the holes, facilitate double panel orientation.

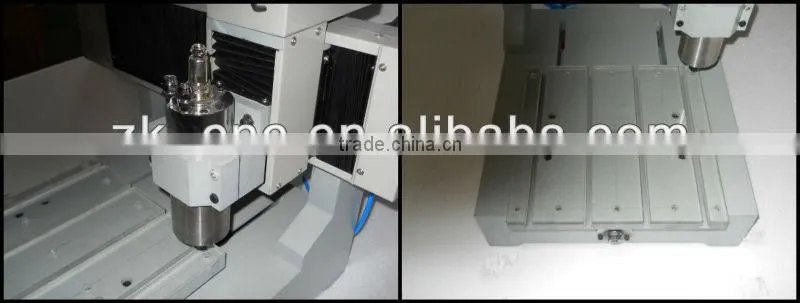

6. Spindle motor for a 800 W high power water-cooled PCB special frequency conversion motor, 1.5 KW frequency converter, long service life, work and more relaxed
7. Application software, machine adopted international general G code processing file so that many such as PowerPCB, such as Protel software, all can be used in the circuit design, more strong adaptability.
8. Our pcb machine can estimate the processing time, to avoid a long time of meaningless waiting
Other models
ZK-4040, 400*400mm ZK-6060, 600*600mm ZK-6090, 600*900mm
Our CNC Router's Configuration/Working Area/ Color Can Be Changed Just According To Your Need!
We Provide 24H Online Service For you! Pls Feel Free To Contact Us!
