Home > Products > Ready to hone Cylinder Tube > Cylinder Using 20 to 250ID Cold Drawn Honed China Steel Pipe
Cylinder Using 20 to 250ID Cold Drawn Honed China Steel Pipe
US$ 1.1 - 1.8
/ Metric Ton
5 Metric Tons(Min. Order)
- Yantai/Qingdao
- T/T
You May Like
Product Details
| Thickness | 2, 30 | Section Shape | Round | |
| Outer Diameter | 30 - 250 mm | Place of Origin | Shandong, China | |
| Secondary Or Not | Non-secondary | Application | Other, Hydraulic Pipe, Hydraulic cylinder | |
| Technique | Cold Drawn | Certification | Other, ISO 9001 2008 | |
| Surface Treatment | Other, According to the custome's need | Alloy Or Not | Non-alloy |
Product Description
Specifications
Cylinder using 20 to 250ID Cold drawn honed China steel pipe1.Grade :45# , 20#, Q345B, 25Mn, 16Mn
2 MOQ: 5MT
3. ID50-250mm
Cylinder using 20 to 250ID Cold drawn honed China steel pipe
Welcome all clients come to inquiry!
Round Cold Draw Seamless Mechanical Tubing

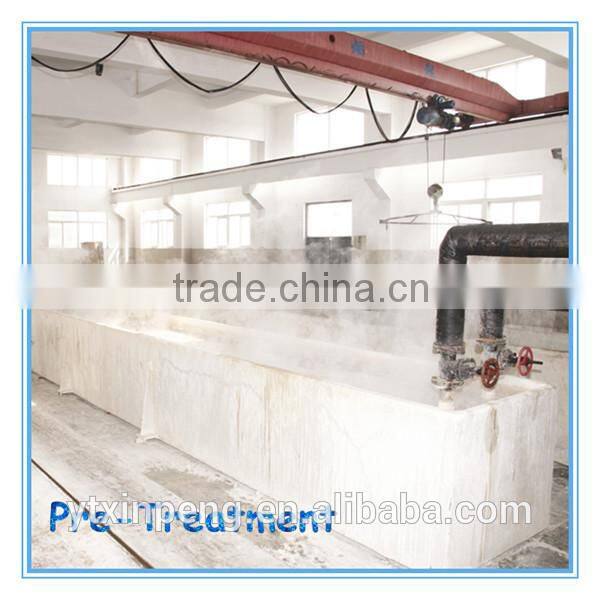

- DIN highly accurate, cold drawn and bright seamless steel tube is used as the tube to be phosphated. The phosphated is realized with the imported chemical fluid to form a black film. The antirust oil is absorbed by means of the micropore on the film to prevent from the rust. The caps are covered at two ends of tube to prevent from the dust.
- High accuracy, excellent brightness, no oxidization on the outer and inner walls after heat treatment, high cleanness inside wall.
- The steel tube is able to stand high pressure. No deformation after cold bending, no crack after flaring and flattening. The complicated geometrical forming and machining can be realized.
- The color of NBK tube is Bright Black. Color is homogeneously distributed on the tube surface. The tube has good property of antirust.
Production Standard ¡GDIN 2391/DIN 1629/EN 10305/ASTM A179/JIS G3445 Finished Condition ¡G NBK(+N) / GBK(+A) / BK(+C) / BKW(+LC) / BKS(+SR)
Material¡G ST35(E235) / ST45(E255) / ST52(E355) / ST37.4
Round Seamless Tubing - Round Steel Tubes
Size List : all dimensions are by metric. | |||||||
OD¡ÑWT | OD¡ÑWT | OD¡ÑWT | OD¡ÑWT | OD¡ÑWT | OD¡ÑWT | OD¡ÑWT | OD¡ÑWT |
4x0.5 | 12x1.5 | 16x2.5 | 22x1.5 | 28x2.0 | 34x2.0 | 38x3.0 | 48x3.5 |
| 4x1.0 | 12x2.0 | 16x3.0 | 22x2.0 | 28x2.5 | 34x2.5 | 38x3.5 | 48x5.0 |
| 5x1.0 | 12x2.5 | 18x1.0 | 22x2.5 | 28x3.0 | 34x3.0 | 38x4.0 | 50x5.0 |
| 6x1.0 | 14x1.0 | 18x1.5 | 22x3.0 | 28x3.5 | 34x3.5 | 38x5.0 | 50x6.0 |
| 6x1.5 | 14x1.5 | 18x2.0 | 22x3.5 | 28x4.0 | 34x4.0 | 38x6.0 | 60x3.0 |
| 6x2.0 | 14x2.0 | 18x2.5 | 22x4.0 | 30x1.5 | 34x4.5 | 40x4.0 | 60x5.0 |
| 8x1.0 | 14x2.5 | 18x3.0 | 22x5.0 | 30x2.0 | 34x5.0 | 42x2.0 | 60x6.0 |
| 8x1.5 | 14x3.0 | 19x2.0 | 24x2.0 | 30x2.5 | 35x1.5 | 42x3.0 | 60x7.0 |
| 8x2.0 | 15x1.0 | 20x1.0 | 25x2.0 | 30x3.0 | 35x2.0 | 42x3.5 | 60x8.0 |
| 8x2.5 | 15x1.5 | 20x1.5 | 25x2.5 | 30x3.5 | 35x2.5 | 42x4.0 | 65x5.0 |
| 9x1.5 | 15x2.0 | 20x2.0 | 25x3.0 | 30x4.0 | 35x3.0 | 42x4.5 | 65x8.0 |
| 10x1.0 | 15x2.5 | 20x2.5 | 25x4.0 | 30x5.0 | 35x3.5 | 42x5.0 | 70x4.0 |
| 10x1.5 | 15x3.0 | 20x3.0 | 27x3.0 | 32x2.0 | 35x4.0 | 42x6.0 | 70x5.0 |
| 10x2.0 | 16x1.0 | 20x3.5 | 27x3.5 | 32x2.5 | 35x4.5 | 45x3.0 | 70x8.0 |
| 10x3.5 | 16x1.5 | 20x4.0 | 27x4.0 | 32x3.0 | 35x5.0 | 45x6.0 | 90x5.0 |
| 12x1.0 | 16x2.0 | 22x1.0 | 28x1.5 | 32x4.0 | 38x2.5 | 48x3.0 | 114x4.0 |
Remark | ¡¹Other Specification and requirement can be customers make. | ||||||
Xinpeng Have passed the ISO9001 verified.

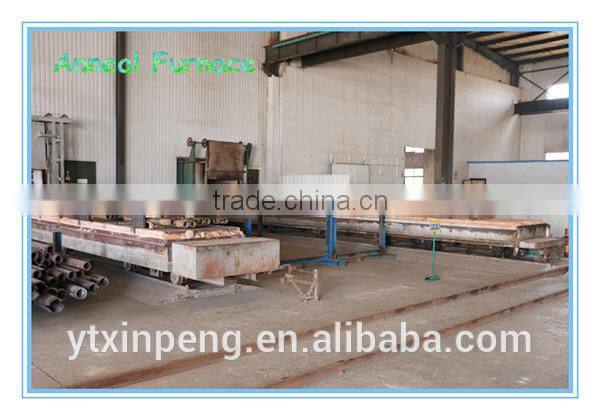

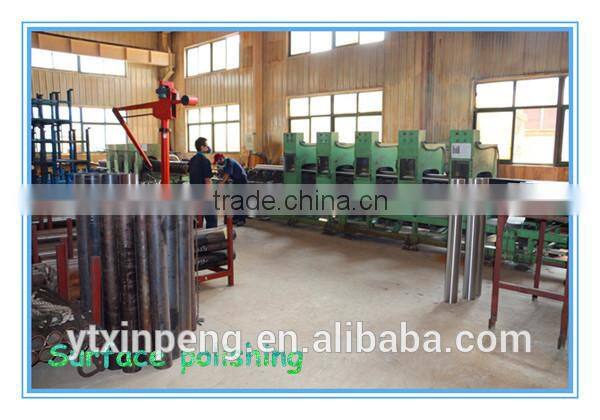

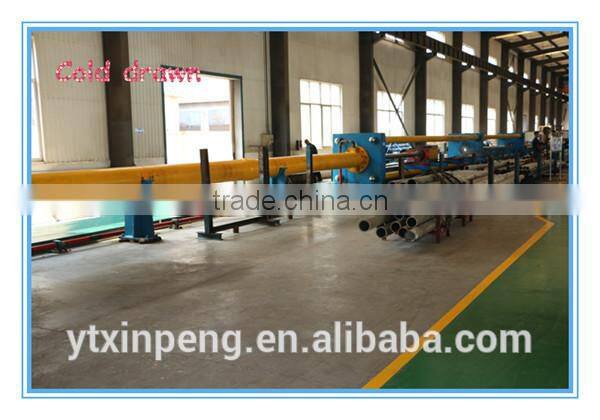

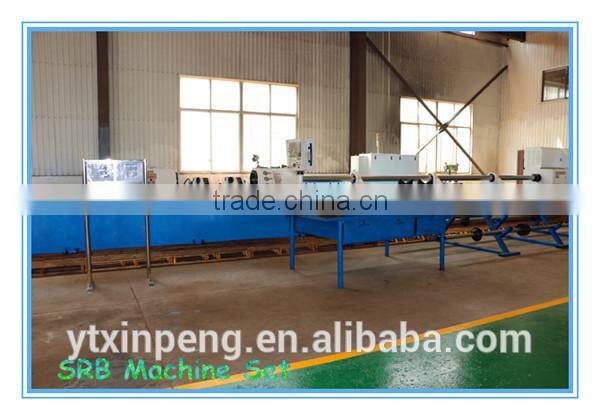

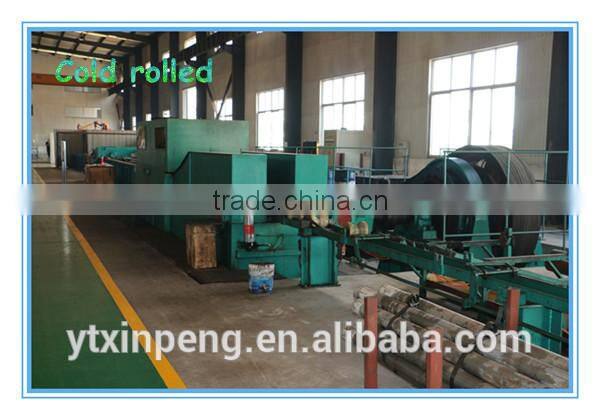

Process
About our service:
1.cargo track during transporting and feedback service after cargo is loaded on board
2.flexible terms of payment by T/T and L/C
3.big discount for repeat customers
4.smooth delivering procedure
we can supply all kinds of steel pipes such as hot rolled seamless steel pipes ,cold drawn seamless steel pipes,honed pipes,cold drawn welded tubes(DOM tubes).
Welcome to inquiry at any time, we will try our best to serve you.
Contact Us
- Yantai Xinpeng Steel Pipe Co., Ltd.
- Contact nameJudy Gao Chat Now
- Phone0086-535-6835398
- Address2th,Binglun Road,APEC Technology Industrial Park,Zhifu District,Yantai City, Yantai, Shandong
