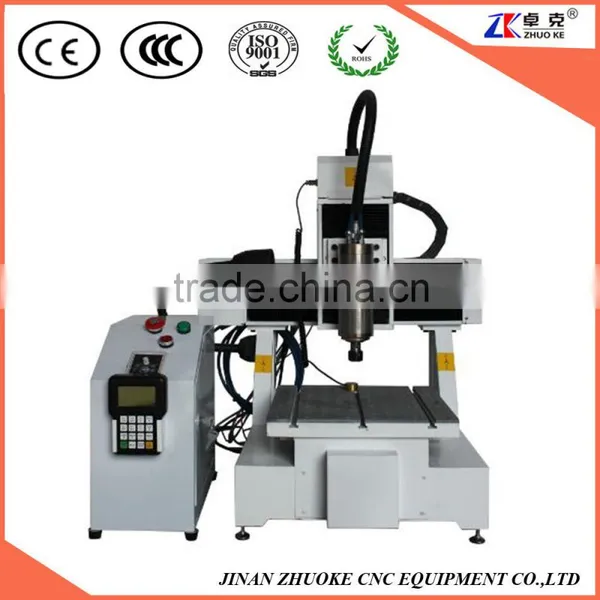

China high accuracy PCB Milling Machine3030
1.Small machine body , whole cast iron or aluminum,the machine stable ,no deformation

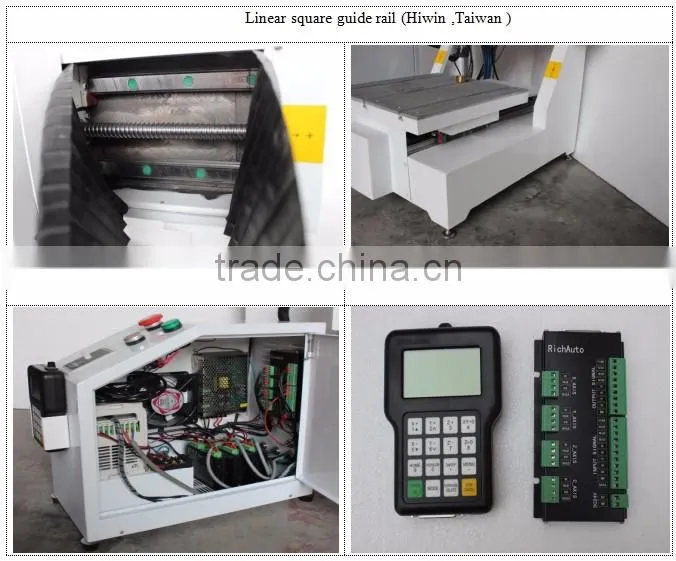

2.Imported high linear square guide rail ,ball screw ,the achieve the high pricision engraving
3.2.2 kw water cooling spindle ,low noisehigh speed rotated (0-24000rpm/min)
4.Auto tool calibration help you to set the tools , not break the tool nose ,ensuring the workpiece high pricision processing
5.Continuing working after the break point/ power failure ,lower the rejection rate
6. Design software:Protel99&Copper CAM
7.Working table Aircraft aluminum T slot
8.DSP control handwheel ,offline the compurter ,convenient to use
Machine dates
| Effective working area | 300*300*80mm | Suitable tools diameter :3.175mm,4mm,6mm | |
| Materials | whole cast iron or whole cast aluminum | Design software:Protel99&CopperCAM | |
| Working table | Aircraft aluminum T slot | Voltage :AC 220V ,50/60 hz | |
| Moving type | Platform moving | Control system :PCI NcStudio | |
| Transmission | Ball screw | Carving instructions:G code *U00*mmg*plt HPGL | |
| Spindle motor | 1.5kw water cooling spindle | Optional item: DSP /Mach 3 /Servo motor | |
| Driving mode | stepper motor | ||
| Guide rail | Square guide rail or round guide rail |

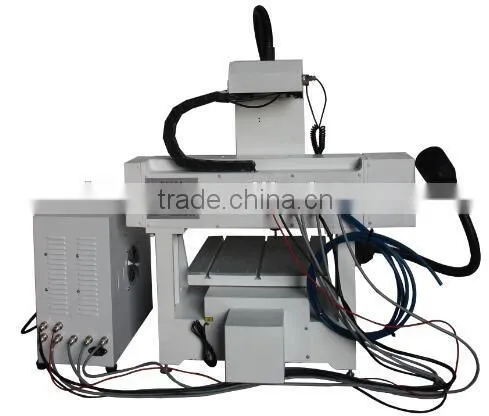

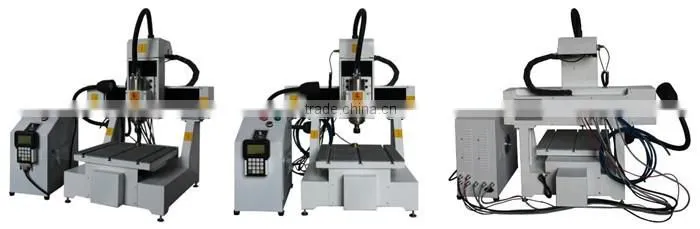

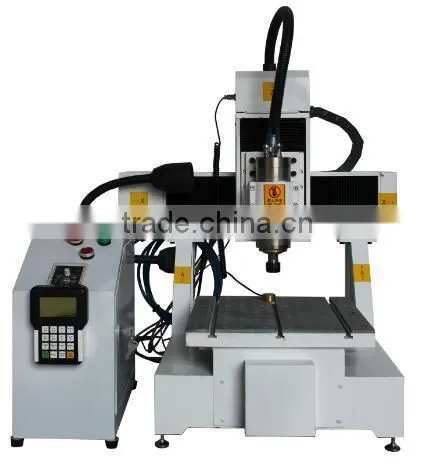

Machine pictures
Jinan ZHUOKE CNC equipment Co.,Ltd is a modern export -oriented enterprise It located in the Jinan city ,SHANDONG province.
Our products are woodworking CNC router,PCB CNC router ,and laser engraving cutting machine ZHUOKE series products are widely used in the woodworking advertising ,stone architectural models
electronics,clothing ,and other industries.
Our CNC machine are not only sold to the domestic,but also the Southeast Asia,Africa and so on.
The important thing is our products are excellent in quality and reasonable in price.
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement
5.24 hours online service each day,free technical support with English languages.
6.We provide door to door technical support ,if necessary.
1.Outside Package:Standard export wooden cases
2.Inner package:strech film
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/
Fedex.
