Help CenterCold Drawn Aisi 1020 Steel Tube
Related Products
-
Better Mechanical Properties St52 Steel Pipe For Hydraulic CylinderUS$ 800 - 1,380MOQ: 5 Metric Tons -
En10305 Standard Hydraulic Cylinder Steel Pipe 40mm DiameterUS$ 800 - 1,380MOQ: 5 Metric Tons
-
Big Diameter 180 to 250mm Precision Seamless Steel Pneumatic Cylinder TubeUS$ 1,000 - 1,500MOQ: 1 Metric Ton
-
SK RB/Honed Hydraulic Cylinder Cold Drawn TubeUS$ 0.95 - 1MOQ: 5 Kilograms
-
SSID Tubing for Hydraulic Cylinder Mirror Surface Top QualityUS$ 0.85 - 1.2MOQ: 5 Metric Tons
Specifications
1 ID30-250mm W.T.2-30mm2 ISO DIN2391 En10305
3 Straightness:0.3~1mm/m

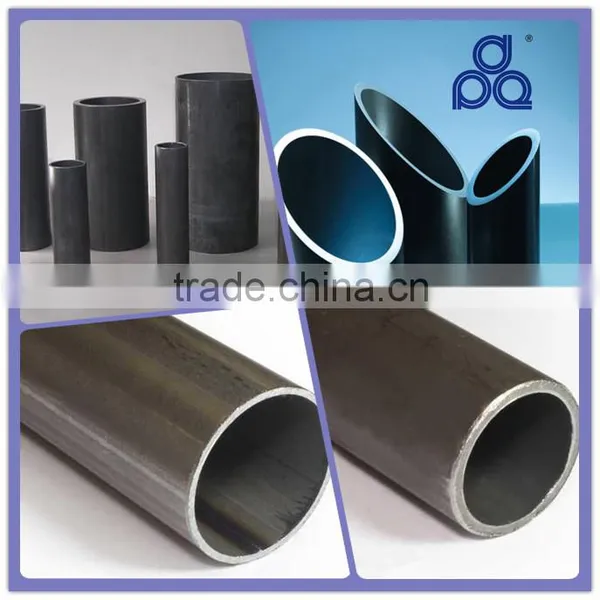

Cold drawn aisi 1020 steel tube
Cold drawn aisi 1020 steel tube
1.Grade: 20#(ck20,aisi1020),45#(ck45,aisi1045),st52(16Mn,Q345D),
25Mn(stkm13c-t),27SiMn
2.ID:30-250mm
3.ID tolerance:H8,H9
4.Surface roughness:Ra 0.02— 0.4μm
5. Final supply condition:cold drawn and stress-relieved(BK+S)
6. Machining allowance:0.5-1.5mm
7.Wall thickness:10%×ID
Variety
Processing |
Cylinder Diameter |
Straightness |
Size Accuracy |
W.T/mm |
Inner Bore Roughess |
|
Cold drawn/ cold rolled |
ID30-250 |
0.3 |
H9-H11 |
±10% |
0.4~1.6um |
Honed tube |
ID50-250 |
0.3 |
H7-H9 |
±10% |
<0.4um |
Mechanics performance
Material |
Tensile strength |
Yield strength |
Elongation |
Hardness |
Ck20/20#/AISI1020 |
>520 N/ mm2 |
>375 N/mm2 |
>15% |
>85HB |
Ck45/45#/AISI1045 |
>600 N/ mm2 |
>520 N/ mm2 |
>15% |
>85HB |
ST52/16Mn/Q345D |
>600 N/ mm2 |
>520 N/ mm2 |
>15% |
>85HB |
25Mn/STKM 13C-T |
>600 N/ mm2 |
>530 N/ mm2 |
>15% |
>85HB |
Dimension tolerance
ID size |
ID deviation (mm) |
|||
H7 |
H8 |
H9 |
H10 |
|
30 |
+0.021 0 |
+0.033 0 |
+0.052 0 |
+0.084 0 |
>30~50 |
+0.025 0 |
+0.039 0 |
+0.062 0 |
+0.100 0 |
>50~80 |
+0.030 0 |
+0.046 0 |
+0.074 0 |
+0.120 0 |
>80~120 |
+0.035 0 |
+0.054 0 |
+0.087 0 |
+0.140 0 |
>120~180 |
+0.040 0
|
+0.063 0 |
+0.100 0 |
+0.160 0 |
>180~250 |
+0.046 0 |
+0.072 0 |
+0.115 0 |
+0.185 0 |
>250~315 |
+0.052 0 |
+0.081 0 |
+0.130 0 |
+0.210 0 |
>315~400 |
+0.0527 0 |
+0.089 0 |
+0.140 0 |
+0.230 |
Delivey conditions:
- Standard packing with plastic caps and strapped bundles.
- Commercial length 2000~10500mm,custom lengths upon request
-
Surface protection
We can supply cold drawn/cold rolled seamless tube,honed tube,hydraulic pipe,hydraulic cylinder tube.
- Pretreatment : Acid cleaning- Parkerizing
- Cold drawn/cold rolled
- Annealing furnace—— stress-relieving (+SR)
- Straightener—— Straightening/ Leveling
Straightness inspecting
Dimension inspecting
- Sawing off not good parts
- Lathe
- Surface Polishing
Finished honed tube
Application:Hydraulic cylinder tube
Any need or intrest, please feel free to contact us!
