Specifications
Cold drawn honed 27SiMn alloy tube oq:10mT1.MOQ:5Tons
2.Payment:L/C T/T
3.FOB QINgdao900-1700usd
4.MOq:10MT top quality

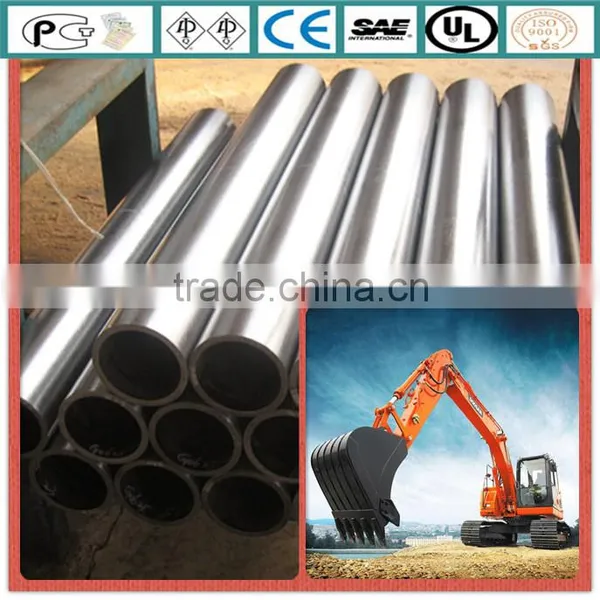

Product Name : Cold drawn honed 27SiMn alloy tube oq:10mT
Introduction:
hydraulic cylinder tube st52 din2391 is a kind of after cold rolling processing of a kind of high precison steel tube, full name cold rolled precision seamless steel tube. Precision seamless steel tube wall inside and outside the precision seamless steel pipe seamless steel pipe without oxidation layars, under high pressure without lea, high precision, high finish, cold bending deformation, flaring, flattening without cracks,etc, it is mainly used to produce pneumatic or hydraulic components products, such as a cylinder or cylinder, are made seamless tube. the chemical composition of precision seamless steel tube with carbon sulfur C,Si, Mn, S, P, Cr.
The difference between precision steel pipe and seamless pipe:
1. the seamless steel tube with obvioue difference is that dimensional accuracy, can be up to 0.1mm.
2. high precision steel pipe diameter surface finish, the customer without processing can be used directly and ordinary seamless steel tube to the customer and lather, polishing processing.
Features:
hydraulic cylinder tube st52 din2391 inside and outside the wall without oxidation layer, under high pressure, no leakage, high precision, high finish, cold bending deformation, flaring, flattening without cracks, surface rust proffing
1. The smaller outer diameter
2. High precision to do small batch production
3. Cold drawn finished products of high precision, good surface quality
4.The steel pipe transverse area is more complex
5. Steel pipe is superior performance, dense metal
Specifiation:
Standard |
DIN2391, DIN2445, EN10305, GB/T 3639, GB 8713 |
Grade |
ST35(E235), ST37, ST24(E255), ST52(E355), 10#, 20#, 35#, 45# |
O.D. |
4.0MM-400MM |
W.T. |
0.5MM-18MM |
Surface Treatment |
bare, varnished,oiled, anti-corrosion coating as request |
Packing |
1. bundle packing 2. marking as per customer's requests 3. paint on the pipe as per customer request 4. pipe caps as customer request |
Condirion of Delivery |
1. NBK(+N) after cold forming, eventually above phase transition point, in a protective atmosphere of annealing oxidation medium 2. GBK(+A) after cold forming, annealing in non oxidizing medium protective gas 3. BK(+C) the final heat treatment after cold forming, threfore small steel pipe plasticly, the plasticly degree does not guarantee 4. BKW(+LC) after final heat treatment, a tiny cold drawing deformation, continue again when machining steel pipe allowed inside certain limits cold deformation(bending, flaring) 5. BKS(+SR) have a stress relief after cold forming, heat treatment, steel pipe can be carried out within a certain limit in the appropriate processing again |
hydraulic cylinder tube st52 din2391
Some Demension:
OD x WT |
OD x WT |
OD x WT |
OD x WT |
4*0.5 |
16*0.5 |
26*1.8 |
35*9.0 |
4*0.8 |
16*0.8 |
26*2.0 |
35*10 |
4*1.0 |
16*1.0 |
26*2.2 |
38*0.5 |
4*1.2 |
16*1.2 |
26*2.5 |
38*0.8 |
5*0.5 |
16*1.5 |
26*2.8 |
38*1.0 |
5*0.8 |
16*1.8 |
26*3.0 |
38*1.2 |
48*5.0 |
70*2.8 |
90*10 |
130*14 |
48*5.5 |
70*3.0 |
90*12 |
130*16 |
48*6.0 |
70*3.5 |
90*14 |
130*18 |
48*7.0 |
70*4.0 |
90*16 |
140*2.5 |
48*8.0 |
70*4.5 |
95*2.0 |
140*2.8 |
48*9.0 |
70*5.0 |
95*2.2 |
140*3.0 |
Variety
Processing |
Cylinder Diameter |
Straightness |
Size Accuracy |
W.T/mm |
Inner Bore Roughess |
|
Cold drawn/ cold rolled |
ID30-250 |
0.3 |
H9-H11 |
±10% |
0.4~1.6um |
Honed tube |
ID50-250 |
0.3 |
H7-H9 |
±10% |
<0.4um |
Mechanics performance
Material |
Tensile strength |
Yield strength |
Elongation |
Hardness |
Ck20/20#/AISI1020 |
>520 N/ mm2 |
>375 N/mm2 |
>15% |
>85HB |
Ck45/45#/AISI1045 |
>600 N/ mm2 |
>520 N/ mm2 |
>15% |
>85HB |
ST52/16Mn/Q345D |
>600 N/ mm2 |
>520 N/ mm2 |
>15% |
>85HB |
25Mn/STKM 13C-T |
>600 N/ mm2 |
>530 N/ mm2 |
>15% |
>85HB |
Dimension tolerance
Process
- Standard packing with plastic caps and strapped bundles.
- Commercial length 2000~10500mm,custom lengths upon request
-
Surface protection
Process Photos
1.Pickling
2. COLD DRAWN/ROLLED
3.STRESS RELIEVED/ ANNEALED
4.STRAIGHTENING
5.STRAIGHTENING INSPECTATION
6.DENMENTION INSPECTING
6.SAWING
6.LATHE
7.DENMENTION TESTING
8.SURFACE POLISHING
9. PRODUCT TESTING
9. SRB
10.Package
Q1.What do you want to purchase ?
What we can offer are cold drawn seamless tubes,cold drawn welded tubes (DOM tubes)
Q2.Do you have the target price ?
Generally ,we have the target price when we buy something ,which is good for both supplier and
customer ,at the same time ,the target price should be objective ,reflecting the market.
