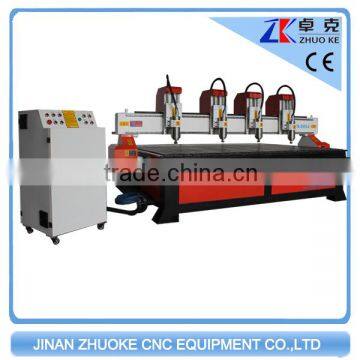

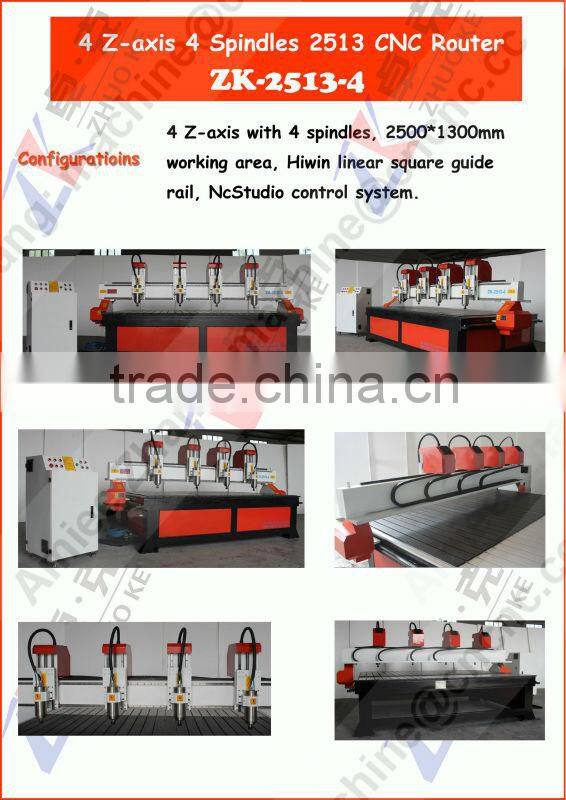

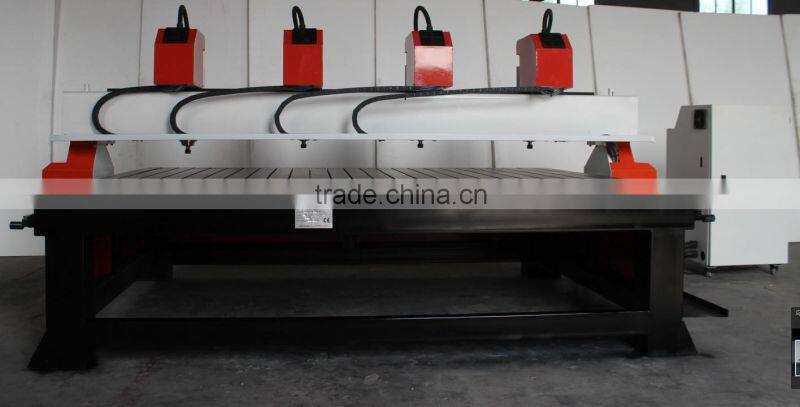

4 Heads 2500*1300mm Woodworking CNC Router on 4 Z-axis NcStudio Control ZK-2513-4
Appicable industry

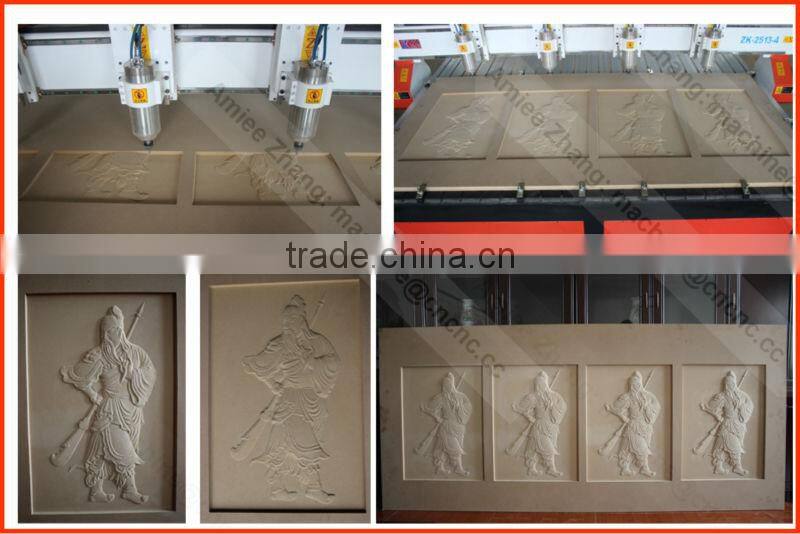

Wood processing, antique furniture, furniture, speakers, games, crafts, wood tray, screen, relief murals and other
deep-relief, hard wood, MDF, particle board engraving, milling and cutting.
As only as adding the stainless steel water slot cooling system, it can also for the metal/stone/glass processing.
Machine characters
1. The machine body structure adopt high quality steel pipe welding, with geometry frame structure, strong bearing
strength, processing jitter low.

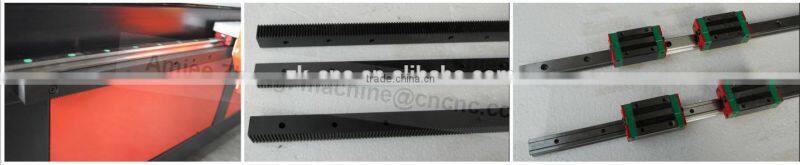

2. Machine 3 axis adopt Taiwan linear square guide rail, diameter 25mm double class four row ball slider, operating smoothly, high accuracy, durable.
3. XY axis adopt super-modulus gear pinion with high speed and accuracy. At the same time, Z axis use imported ball screw, high precision,lower knives accurately
4. Adopt famous steper motor and driver, operating more sable and higher accuracy.

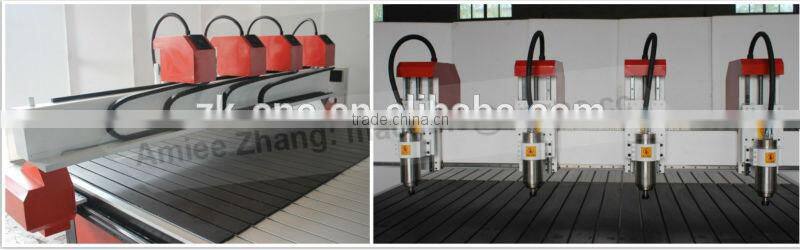

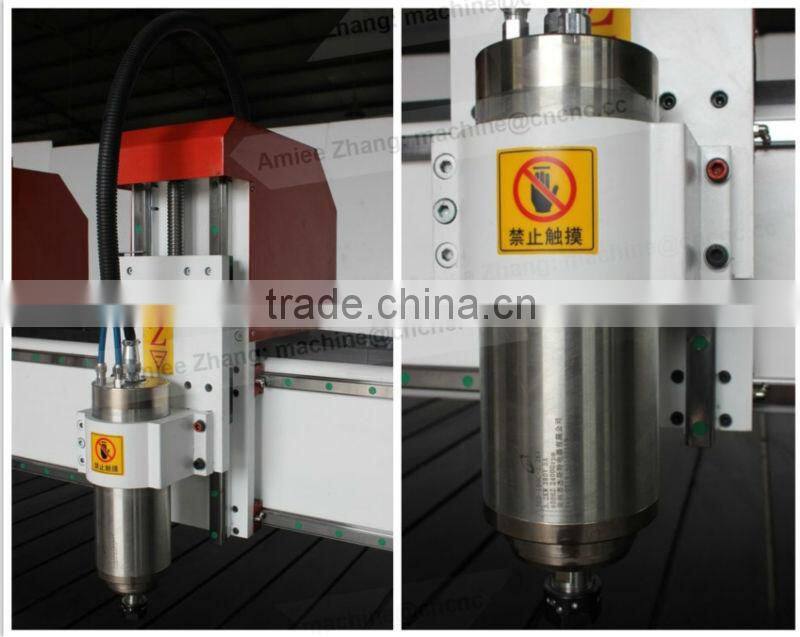

5. 4 spindle heads on 4 indepent Z-axis,e ach spindle power is 3.2kw, water cooling spindle, more powerful , strong and free maintenance, continuous working,
6. Tshape dragon gate makes 3 axis working stable, high speed and accuracy. Dragon gate moving, customer can
work on any area of the material.

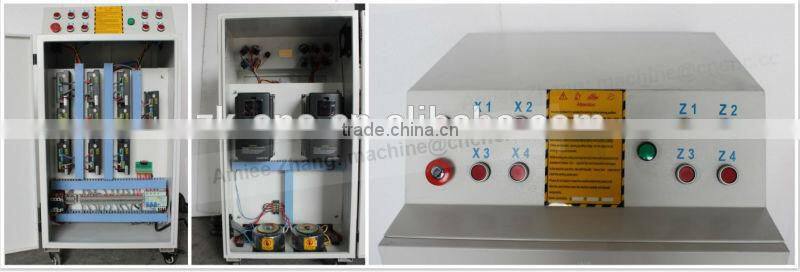

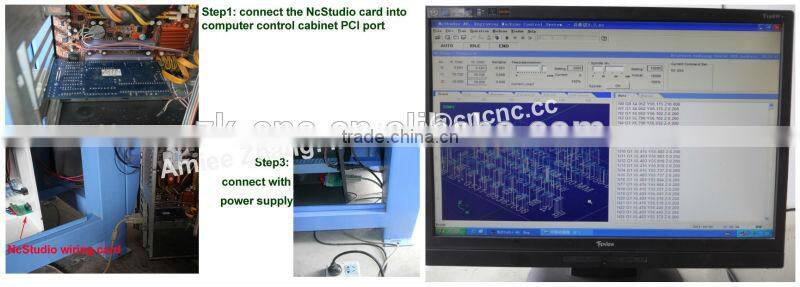

7.NcStudio control system, connect with the desktop computer, show the processing path, more convenient and easy to operatem, stability, high efficiency, easy to learn.
8. Continuing working after the break point/power failure, lower the rejection rate.
9. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM
software, 2D/3D processing, more convenient to using.
Technical parameters
Items |
Destription |
Optional |
Effective working area |
2500(X)mm*1300(Y)mm*200(Z)mm |
Bigger |
Max.thickness of the materials |
≤200mm(the distance between Z-axis and the bottom of the working station) |
higher |
Materials |
Square steel tube machine, casr iron gantry |
|
Guide rail |
Linear square guide rai(Hiwin, Taiwan) | |
Transmission |
Rack for X Y-axis, ball screw for Z-axis |
Whole ball screw transmission |
Driving mode |
stepper motor |
Stepper motor motor |
Spindle motor |
3.2kw water cooling |
or air cooling |
Spindle speed |
0-24000rpm/min |
|
Empty traveling speed |
0-60000mm/min |
|
Engraving speed |
0-25000mm/min |
|
Voltage |
AC 220V 50/60Hz single phase or AC 380V 50/60Hz three phase |
|
Machine accuracy |
0.01mm |
|
Control system |
NcStudio | Mach3 or DSP offline |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
ZK-3030 300*300mm ZK-4040 400*400mm ZK-6060 600*600mm
ZK-6090 600*900mm ZK-1212 1200*1200mm ZK-1215 1200*1500mm
ZK-1218 1200*1800mm ZK-1224 1200*2400mm ZK-1525 1500*2500mm
ZK-1530 1500*3000mm ZK-2030 2000*3000mm
Packing: 12CBM, 1300kg, one plywood case
Shipping: EXW/FOB/CIF/DDU... according to your need
