Cnc Router Equipment Heads Spindles

Name: Cnc Router Equipment Heads Spindles
Brand: Zhuoke
SKU: 123085993
Availability: InStock

US$ 2,200 - 3,500 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Zhuoke CNC Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao guangzhou shanghai or as your need

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name Zhuoke

Model Number ZK-6090

Voltage 220V 50/60HZ

Power(W) 1.5KW

Dimension(L*W*H) 130*110*135CM

Weight 430KG

Certification CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

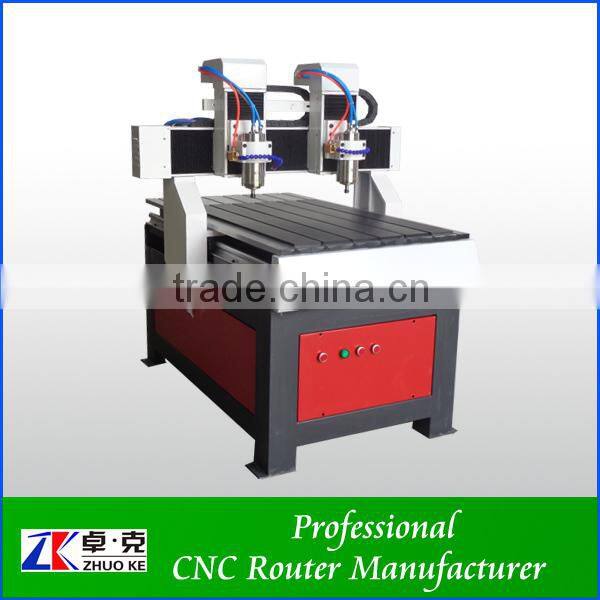

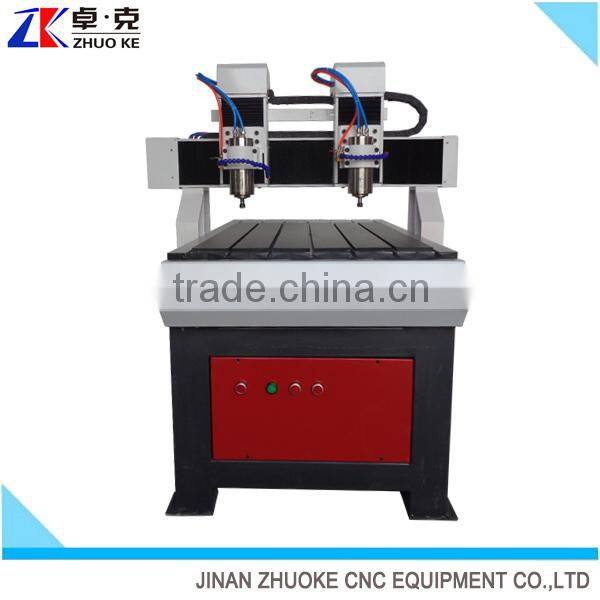

cnc router equipment heads spindles

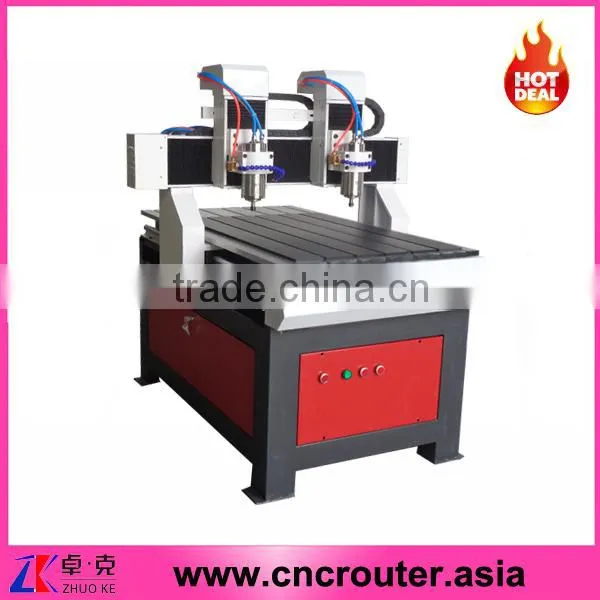

Machine features

1.cast iron machine bed,cast aluminum gantry,making machine solider,not to deform.

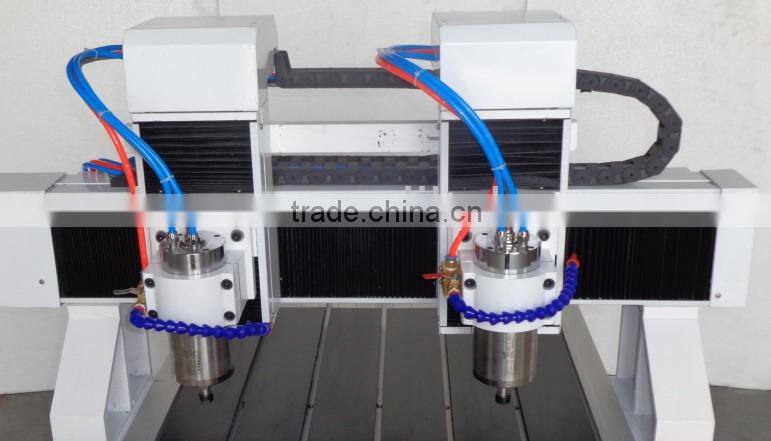

2.Equipped with 2 spindle heads, can engrave or cut different work pieces by one time,saving time and improving work efficiency.

3.ball screw transmission for XYZ-axis,linear round guide rail,high precision.

4.adopting advanced Ncstudio system,can be controled by desktop computer

5.Good software compatibility,can be compatible with artcam,ucancam,type3 and so on.

Technical Data

Effective working area	*600(X)mm900(Y)mm120(Z)mm*
Max.thickness of the materials	≤120mm(the distance between Z-axis and the bottom of the working station)
Materials	Steel pipe welded machine bed, cast aluninum gantry
Working table	Aircraft aluminium T slot
Guide rail	Linear round guide rail ( Hiwin, Taiwan, diameter 20mm)
Transmission	Rack &pinion for X Y -axis, ball screw(TBI) for Z-axis
Driving mode	Stepper motor ( XY Z-axis: 86BYGH450A)
Spindle motor	1.5kw water cooling
Spindle collet type	ER 25
Collets diameter	3.175mm, 4mm, 6mm, 8mm, 10mm, 12.7mm
Voltage	AC 220V 50/60Hz ,single phase
Spindle speed	0-24000rpm/min
Empty traveling speed	0-25000mm/min
Engraving speed	0-12000mm/min
Machine accuracy	0.03mm
Diagonal error	1mm
Resetting accuracy	0.05mm
Control system	Ncstudio
Handwheel pulse generator	XHC, wireless, with displayer
Motor wire	*High soft specially for Numerical Control( 40.75)**
Spindle wire	*Shielding high soft (31.5)**
Suitable software	Artcam, Type3, Ucancam V9,etc
Software when delivery	Artcam
Carving Instructions	*G code Uoo mmg plt HPGL**
Running environment temperature	0-45 °C
